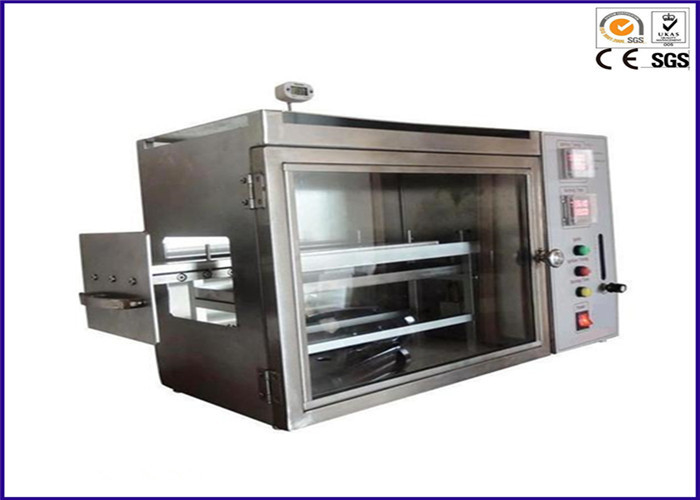

Plastic Horizontal Flammability Tester Burning Rate Test Apparatus With Angle Adjustable

Plastic Horizontal Flammability Tester Burning Rate Test Apparatus With Angle Adjustable

  • Plastic Horizontal Flammability Tester Burning Rate Test Apparatus With Angle Adjustable
  • Plastic Horizontal Flammability Tester Burning Rate Test Apparatus With Angle Adjustable
  • Plastic Horizontal Flammability Tester Burning Rate Test Apparatus With Angle Adjustable
Plastic Horizontal Flammability Tester Burning Rate Test Apparatus With Angle Adjustable
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ASTM D 635,UL94 V-0 V-1 V-2,GB/T 2408
Model Number: YY302
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Power: Electronic Product Name: Horizontal Flammability Tester
Usage: Plastic Horizontal Burning Rate Test Apparatus Test Chamber: >0.5m3
Burner: ASTM D5025 Power Supply: 220V 50HZ
High Light:

flammability test equipment

,

ul 94 test equipment

Plastic Horizontal Burning Rate Test Apparatus / Adjustable Angel Flammability Tester





Application:



The test apparatus is used for the determination combustion performance of plastic and plastic parts,horizontal or vertical burning,under the conditions of 50W flame.





Standards:



ASTM D 635,UL94 V-0 V-1 V-2,GB/T 2408





Specification:



1. Test chamber>0.5m3,adopt numerical control machine tool processing molding, circular modelling beautiful generous. High quality stainless material, has the characteristics of beautiful and rust corrosion.

2. There is a sealed toughened glass observation window on the front of test chamber, in order to observe testing.

3. This burner, made by the company completely constructed in accordance with Specification ASTM D5025.

4. The burner angle is adjustable.(90℃,45℃)

5. The panel timing device can be used for record test time

6. The rotor flow meter can adjust combustion gas flow.

7. High precision pressure regulating valve,regulate gas pressure.

8. The test support is divided into horizontal and vertical,vertical support and blowtorch is parallel to observation window.

9. It is equipped with scale for measure the flame of horizontal and vertical combustion.

10. Power:220V 50HZ



Plastic Horizontal Flammability Tester Burning Rate Test Apparatus With Angle Adjustable 0
