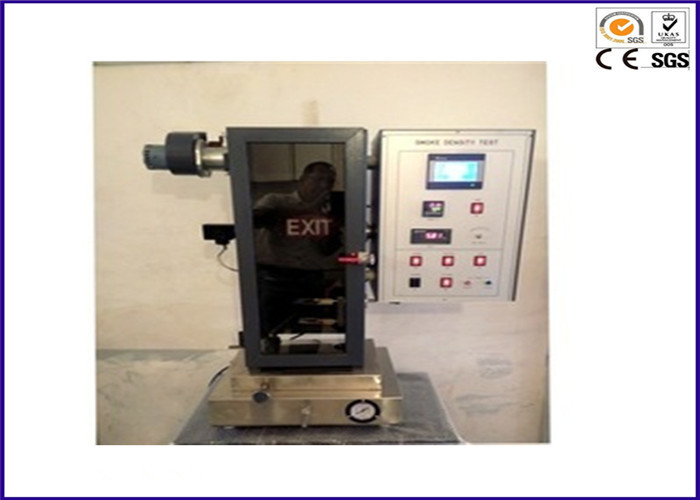

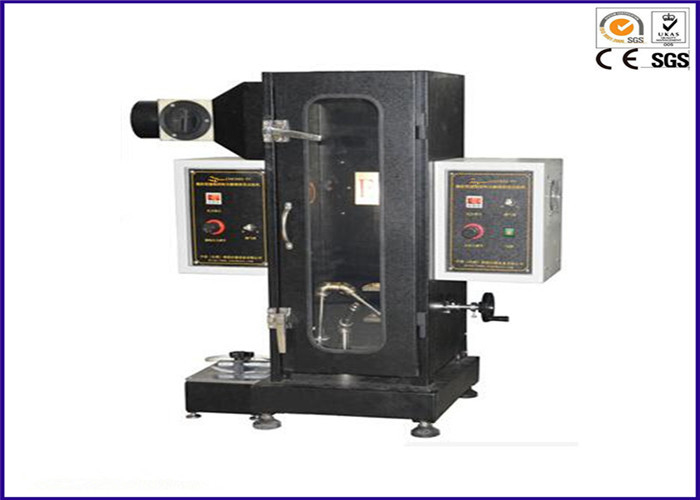

Micro Computer Smoke Density Test Apparatus For Plastic Burning / Decomposition

Micro Computer Smoke Density Test Apparatus For Plastic Burning / Decomposition

  • Micro Computer Smoke Density Test Apparatus For Plastic Burning / Decomposition
  • Micro Computer Smoke Density Test Apparatus For Plastic Burning / Decomposition
  • Micro Computer Smoke Density Test Apparatus For Plastic Burning / Decomposition
Micro Computer Smoke Density Test Apparatus For Plastic Burning / Decomposition
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ASTM D 2843,DIN 4102,GB/T 8627
Model Number: YY702
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Material: Stainless Steel Product Name: Smoke Density Tester
Usage: Plastic Burning Or Decomposition Smoke Density Tester Gas Source: 95% Propane Gas
Main Burner: 276 Kpa Supply Voltage: AC220V±10%,50Hz
Using Power: 0.5KW Weight: 35 Kg
High Light:

smoke density chamber

,

smoke density apparatus



Micro-computer Plastic Burning or Decomposition Smoke Density Tester





Application:



The test apparatus is used for measuring the somke-producing characteristic of plastics under controlled condition of combustion or decomposition, and also can be used for other building materials.





Standards:



ASTM D 2843,DIN 4102,GB/T 8627





Specification:



1. Gas source: 95% propane gas or higher purity, or the same purity of gas(owned);

2. Photometric system: a light source for the light bulb 15 w, working voltage of 6 v.

3. Smoke density measurement range: 0 ~ 100%;

4. Smoke density measurement accuracy: ±3%;

5. Receive the lens focal length: 60 ~ 65 mm;

6. Main burner work pressure: 276 kpa (adjustable);

7. Auxiliary combustion chamber pressure: 138 kpa (adjustable);

8. Supply voltage: AC220V±10%,50Hz;

9. Using power: 0.5 KW.

10. Combustion box dimension: L300*W300*H790(mm);

11. Equipment overall dimensions: (800 * 500 * 500) mm;

12. Combustion box adopts 304 steel plate, thickness of 1.2 MM;

13. Weight: 35 Kg.





Micro Computer Smoke Density Test Apparatus For Plastic Burning / Decomposition 0
