| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | GB/T3903.2 |
| Model Number: | YY1002 |
| Minimum Order Quantity: | 1-3 |
|---|---|
| Price: | $500-$833.33 |
| Packaging Details: | PE +wood case |
| Payment Terms: | Western Union, T/T, L/C,Paypal |
| Supply Ability: | 3pcs /week |
| Size: | 650*400*45mm | Weight: | 15KG |
|---|---|---|---|
| Test Distance: | 150-250mm | Wavelengh: | 345NM |
| Light Source: | 300 W UV Lamp | Test Area Size: | 50 * 50 * 60 Cm |
| Product Name: | Environmental Testing Chamber | Usage: | UVA-340 Uv Radiation Aging Tester |
| High Light: | sand and dust test chamber,salt spray test chamber |
||

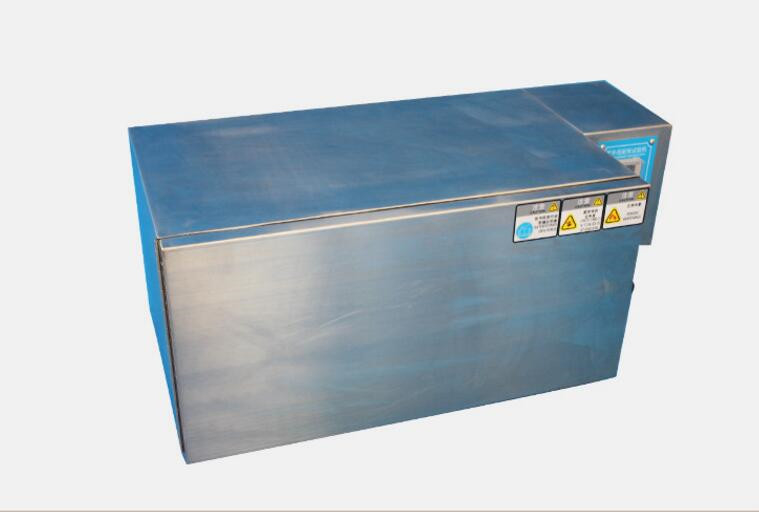

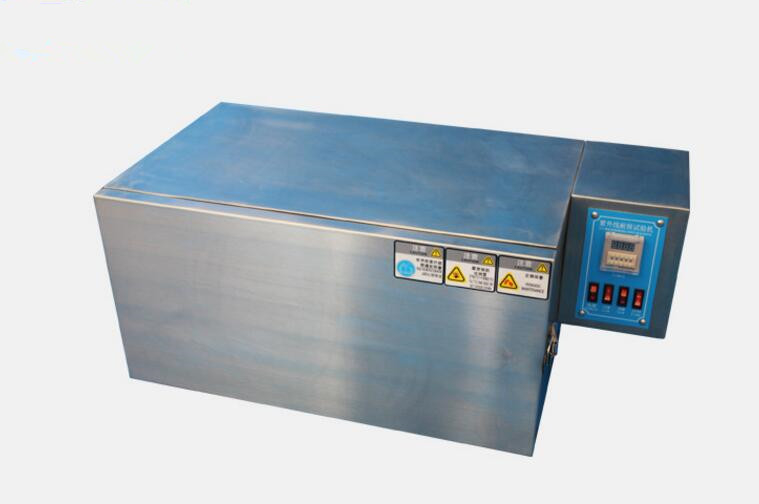

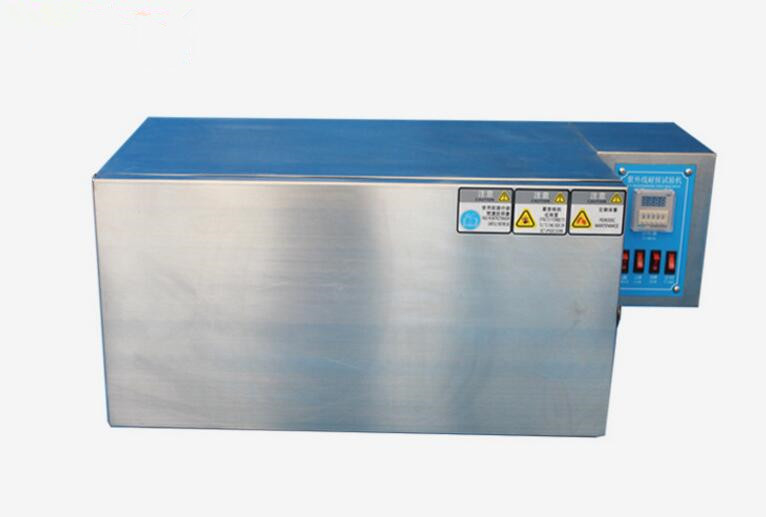

Solar Ultraviolet Weathering Environmental Test Chamber UVA-340 Uv Radiation Aging Tester
Specifications :
The temperature: Rt ~ 200 ℃
Light source: 300 w UV lamp
Back to the table size: Φ 45 cm
Back to the rotary speed: 0 ~ 50 r. p.m
Heating method: hot air circulation
: thermal insulation layer glass fabric dimension
Adjustable light degree:
When counting device: 0 ~ 24 hr
Horse: 1/4 HP
Weight: 95 kg
Power source: 220 v
Test area size: 50 * 50 * 60 cm
Machine full size: 95 * 65 * 65 cm
Structure:
Outside the SUS 304 stainless steel.
Within the SUS 304 stainless steel.
The controller in the machine on the right side, from right to left the door open.
The door: single door structure, no reaction riot in hand.
Diaphragm: 2 slices grid, adopts 304 stainless steel material.
Test tubes: TUV15W UV lamp voltage (220 + 10) V, TUV tubes is a tubular glass shell of
low-pressure mercury vapor discharge lamp, launch shortwave ultraviolet radiation, its peak
of 253.7 nm (UV - C), have the effect of sterilization.The glass shell will produce ozone
radiation wavelength of 185 nm filter.Within the tube wall of protective coating can prevent
the UV - C radiation attenuation.
Note: use the UV lamp - C devices must have the strict protective measures, prevent
ultraviolet light leaked direct illuminate human lamp must be replaced after every use
1000hours
