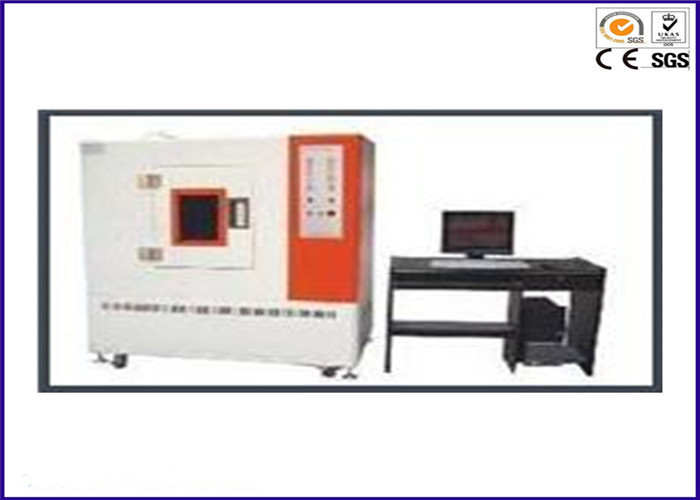

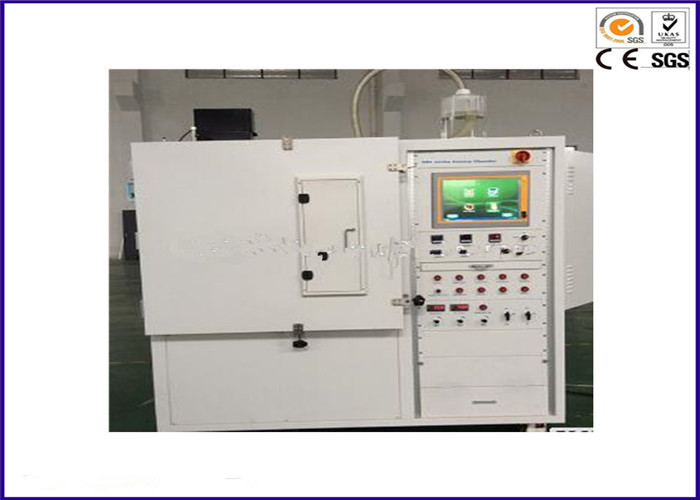

Plastics NBS Smoke Density Tester / Optical Density Test Apparatus ISO 5659-2 NES 711

ISO 5659-2 NES 711 Plastics NBS Smoke Generation Optical Density Tester

Description:

ISO 5659-2 Plastics Smoke Generation Optical Density Test Apparatus by Single Chamber Test is widely used in assessing characteristics of vehicle interior and inflammable cable. Measure the optical density of smoke when a certain thick specimen is exposed to a heat source of 25KW/m2 or 50KW/m2.

Standards:

ASTM E 662 Standard test method of specific optical density of smoke by solid material

BSI 6401 UK Standard of measuring specific optical density of smoke by material

ISO 5659-2 Plastic smoke generation, determination of optical density by a single chamber test

NES 711 Measure the smoke density index of a small specimen burning

GB/T 8323.2 Plastics -- Smoke generation -- Part 2: Determination of optical density by a single-chamber test

Specifications:

1. All the Inside&outer of the container are Teflon coated,can resist etchant gas to increase the life of machine;

2. The machine are all opened designed;

3. install assistant heating device in the outer of the tester ,it can set temperature according to different standard requirements,so can shorten the temperature balance time of container;

4. install the aluminum explosion-proof in the container to avoid the life risk;

5. open the gas pressure release on top of container,connect with the pressure adjust flask,can adjust the pressure automatically ;

6. install automatic air-cylinder in both top and bottom of container,it will be convenient for user;

7. provide ASTM E662 all-radiant furnace,can provide 25kw/m2 heat radiation output;

8. provide ASTM E662 standard naked light burner,can work with all-radiant furnace to do naked light burning test;

9. provide air-cooled copper calorimeter,can use back cooling mode to adjust it’s surface temperature when do the test;

10. provide ISO 5659-2/GB/T8323 radiation cone device,can provide 50kw/m2 heat radiation output;

11. provide ISO 5659-2/GB/TB323 standard naked light burner,can work with radiation cone to do naked light burning test;

12. provide America MED THERM water cool heat flow meter(cone calorimeter),provide the measurement certificate which can date back to America NIST;

13. provide self circulating cooling water,it’ll be convenient for user;

14. provide weighing device,can do MOD smoke density test and do heat weightless test;

15. the range of sensor is 0-5000g,the precision is 0.01g;

16. provide NES 711 naked light burner and whisk fans

17. adopted air joint connection between all-radiation furnace and radiation cone ,user just need to insert or pluck then can make the change ;

18. install optical cassette on the top of container,side window photo multiplier for light source acceptance,s-4 rate respond transmission accuracy can reach 0.0001%;

19. install wheel rotation device in the cassette ,can automatically change CLEAR/FILTER/DARK according to smoke density transformation;

20. install ND2 neutral filter in cassette,it will convenient for users self-adjust also can use for automatic change tab in test;

21. under the container is filament lamp,can provide even light spot output;

Main configures:

17inch touch control computer main engine

America NI software design platform

Import heat flow

Import electrical control part

Import temperature sensor

SUS 304 stainless steel porcelain enamel processing

RAL9002 standard color paint on outer container
