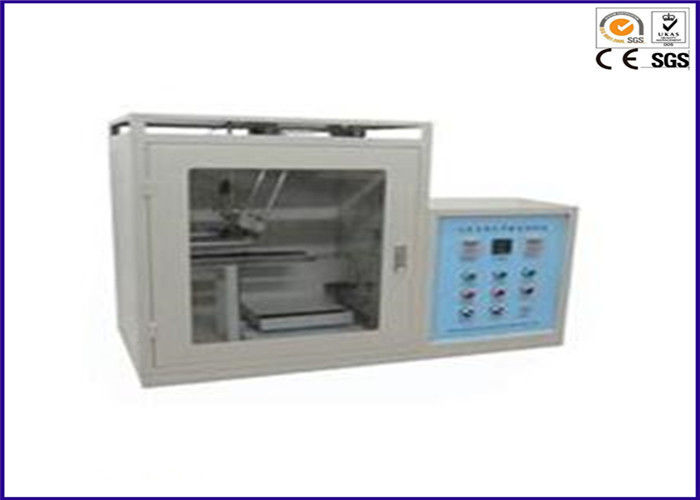

PLC Control Horizontal / Vertical Flammability Tester , PV 3357 UL Test Equipment

PLC Control Horizontal / Vertical Flammability Tester , PV 3357 UL Test Equipment

  • PLC Control Horizontal / Vertical Flammability Tester , PV 3357 UL Test Equipment
PLC Control Horizontal / Vertical Flammability Tester , PV 3357 UL Test Equipment
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: PV 3357 UL
Model Number: YY304
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 6 sets per month
Contact Now
Detailed Product Description
Product Name: Horizontal Flammability Tester Usage: Material Burning Behavior
Burner Diameter: 9.5mm Timing: 0~999.9 S
Dimension: 1000mm×800mm×1150mm Power: PV 3357 And UL
High Light:

45 degree flammability tester

,

flammability test equipment

PLC Control PV 3357 UL Horizontal and Vertical Flammability Tester





Description:



This flammability tester machine is used for test of burning behavior of materials and components for damping and absorption parts in engine compartment as well as on the vehicle underbody for vehicles with spark ignition and diesel engines. To adjust flammability rating assessment both for horizontal or vertical burning performance as according to PV3357 and UL standards.





Features:



1,Bunsen burner position controlled by hand,auto-timing and postioning,easy operation,

2,Equipped with hypersensitivity warning device for gas leakage,automatic alarm for gas leakage,

3,Horizontal and vertical two bunsen burners fixed,

4,It needs fume hood or special exhaust system for the burnt gas,

5,Two sets of specimen holders for horizontal and vertical burning.

6,Change-over switch for horizontal and vertical flammability testing, easy operation.





Technical Parameters:



1,Standard bunsen burner diameter: 9.5mm;

2,PLC control with big LCD display;

3,Timing:0~999.9 s with accuracy of 0.1s, residual flame and afterglow time all automatic recording and LCD display;

4,Time to ignition:short time of 15s;long of 600s;

5,Flame level:adjustable with flame ruler of 100mm and 38mm;

6,Used gas:industrial methane,commercial propane gas ,LPG,natural gas,etc;

7,Power:AC220v;50Hz;50W;

8,Dimension:1000mm×800mm×1150mm.

9,Standards: PV 3357 and UL
