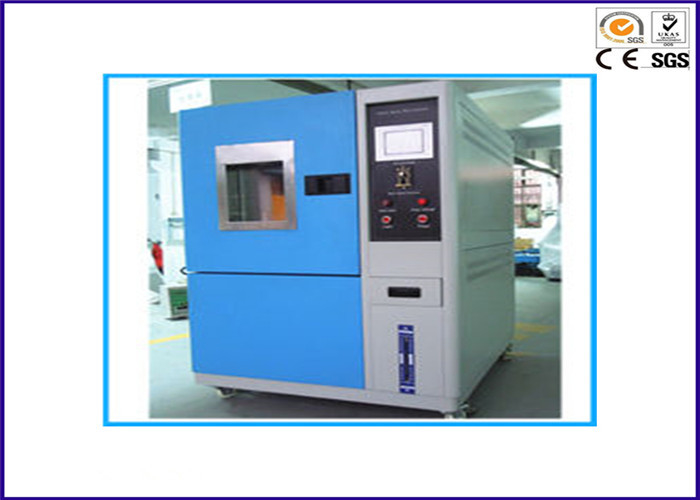

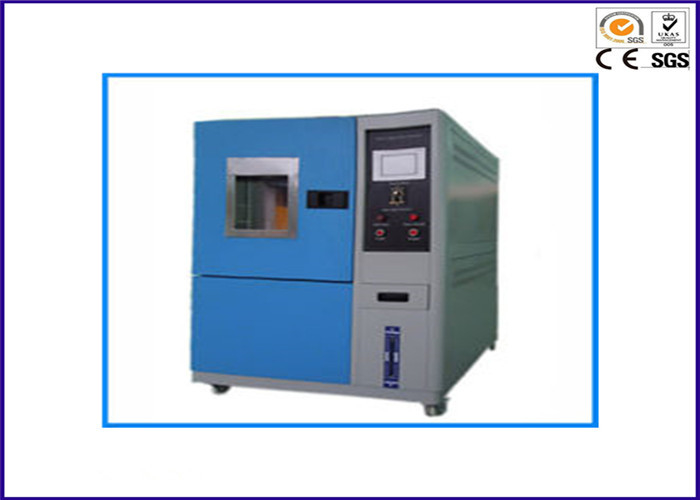

ASTM 1149 ISO 1431 Ozone Aging Test Chamber To Test Rubber Products

ASTM 1149 ISO 1431 Ozone Aging Test Chamber To Test Rubber Products

  • ASTM 1149 ISO 1431 Ozone Aging Test Chamber To Test Rubber Products
  • ASTM 1149 ISO 1431 Ozone Aging Test Chamber To Test Rubber Products
  • ASTM 1149 ISO 1431 Ozone Aging Test Chamber To Test Rubber Products
ASTM 1149 ISO 1431 Ozone Aging Test Chamber To Test Rubber Products
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: JIS K 6259 , ASTM1149, ASTM1171, ISO1431, DIN53509 , GB/T13642, GB/T 7762-2003,GB 2951
Model Number: YY1012
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2 sets per month
Contact Now
Detailed Product Description
Product Name: Environmental Test Chamber Usage: Ozone Resistance Test For Rubber
Material: Stainless Steel Internal Dimension: 500x600x500 Mm (150L)
External Dimension: 1000x1000x1750 Mm Power Supply: AC220V, 50/60HZ
Temperature Range: RT+10~ 60℃ Temperature Fluctuation: ±1℃
Ozone Concentration: 50~1000 Pphm Ozone Concentration Deviation: ±10%
High Light:

sand and dust test chamber

,

thermal shock test chamber

ASTM1149 ISO1431 Ozone Accelerated Weathering Tester To Test Rubber Products





1. Product introduction



Rubber Stainless Steel Ozone Accelerated Weathering Testing Chamber is a major factor in rubber cracking although it is rare in the atmosphere,Rubber Stainless Steel Ozone Accelerated Weathering Testing Chamber simulates and enhance the condition of ozone in the atmosphere to study the effects of ozone on rubber, and then identify and evaluate the method to resist ozone and aging for rubber, adopt effective anti-aging measures to enhance the life of rubber products.





2. Main function



Rubber Stainless Steel Ozone Accelerated Weathering Testing Chamber Can be used to test rubber products with static tensile deformation, such as vulcanized rubber, thermoplastic rubber, cable insulating bush; expose the test specimens to the sealed air in the test chamber without light and with constant ozone concentration and constant temperature according to predetermined time, and then observe the cracks on test specimens’ surface and the degree of change of other properties to evaluate the rubber’s ozone aging resistance properties.





3. Main feature



Equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.





4. Corresponding standard



JIS K 6259 , ASTM1149, ASTM1171, ISO1431, DIN53509 , GB/T13642, GB/T 7762-2003,GB 2951





5. Applicable industries



Rubber Stainless Steel Ozone Accelerated Weathering Testing Chamber is widely used to control products quality in measuring quality control; Rubber & Plastics; automobile production; wire and cable; packing materials; instruments and meters; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research laboratories; inspection arbitration, and technical supervision departments and other rubber products.





6. Technical parameter:



Model YY1012
Internal dimension (WxDxH) 500x600x500 mm (150L)
External dimension (WxDxH) 1000x1000x1750 mm
Temperature range RT+10~ 60℃ (suggest to use 40℃±2℃)
Temperature Fluctuation ±1℃
Ozone concentration 50~1000 pphm, adjustable
Ozone concentration deviation ±10%
Sample holder 2pcs removable sample tray, SUS#304 stainless steel
Temperature controller Programmable touch screen controller
Ozone concentration analysis Concentration analysis meter
Ozone generator High pressure silence discharge type
Protection system Leakage, short circuit, over temperature, over heat
