Place of Origin:
China
Brand Name:
YUYANG
Certification:
GB/T7762, GB/T2951.21
Model Number:
YY1027

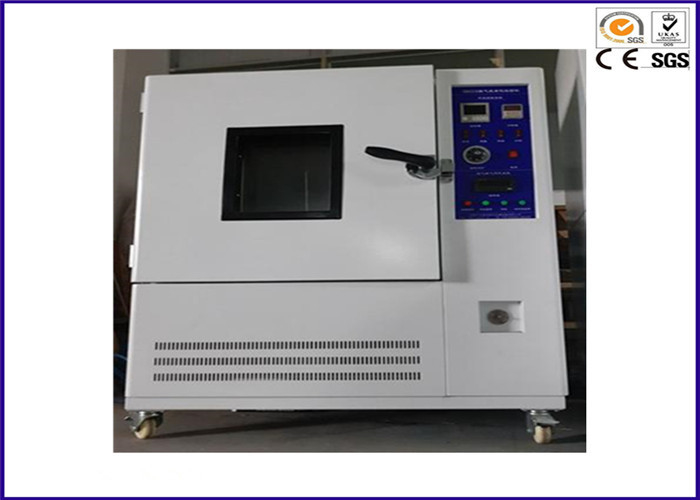

Environmental Equipment Ozone Aging Chamber for Ozone Corrisive Test
Application:
Ozone aging test chamber use for test aging cracking test in non-metallic materials and rubber products .
Structure:
Box using CNC machining with nice shape, easy to operated because of no side effect on door handle
Ozone aging inner tank made of imported high grade stainless steel, the gall bladder of outside box using A3 steel spray to increasing the appearance of texture and cleanliness
The heating method is Fever asanas ,this style let it heating up fast and Evenly distributed
Specification:
| Type | YY1027-100 | YY1027-225 | YY1027-500 | YY1027-1000 | |
| Working camber size D*W*H | 450*450*500 | 500*600*750 | 700*800*900 | 1000*1000*1000 | |
| Performance indicators | Temperature range | 0~70ºC | |||
| Humidity range | ≥65R.H | ||||
| Ozone concentration | 0~200PPm, 0~300PPm | ||||
| Temperature fluctuation | ±0.5ºC | ||||
| Operation control system | Test device | Dynamic and static (optional) | |||
| Sample holder rotation | 360°rotation sample holder,(1cycle/min) | ||||
| Gas flow rate | 12~16mm/s | ||||
| Temperature controller | Imported LED digital display P,I, D+S, S, R. Microcomputer integrated controller | ||||
| Time controller | High-precision controller by hour,minute,second | ||||
| Ozone concentration analysis | Imported concentration analysis regulator, 4~60mAoutput,RS232 communication port | ||||
| Ozone generator | Silent discharge tube | ||||
| Security | Leakage, short circuit, over-temperature, motor overheating, over-current protection | ||||
Ozone Aging Testing chamber is mainly suitable for polymer materials and products (rubber) of the resistance to ozone aging performance test. Ozone content in the atmosphere is very low,but it is the main factors of polymer materials aging. Ozone aging test chamber simulating and strengthen the ozone condition in the atmosphere, get approximate to actual use or reproduction of the test results in a short time. The studay of ozone effect regulation to rubber products, quickly identify and evaluate rubber materials resistance to ozone and antiozonant protection efficiency method,and then take effective aging proof measures to improve the service life of rubber products.
Standard:
GB/T7762-2003 ozone aging test vulcanized rubber or thermoplastic rubber resistance to ozone cracking static tensile test method.
GB/T2951.21-2008 ozone aging test cable insulation and sheathing materials test methods.
