Place of Origin:
China
Brand Name:
YUYANG
Certification:
EN-71-1 2011
Model Number:
YY1108

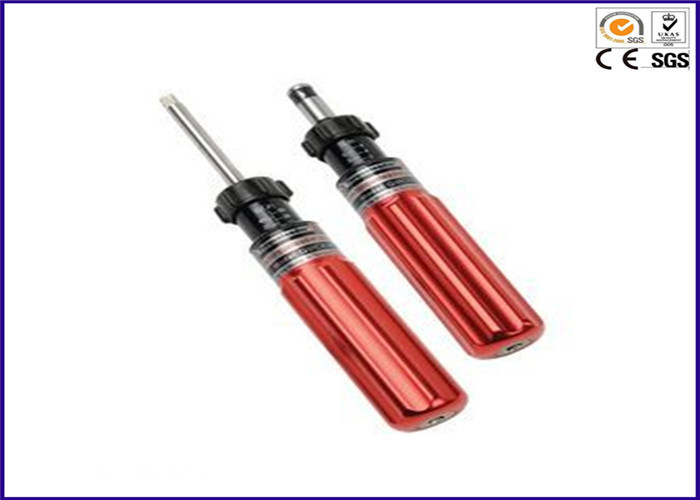

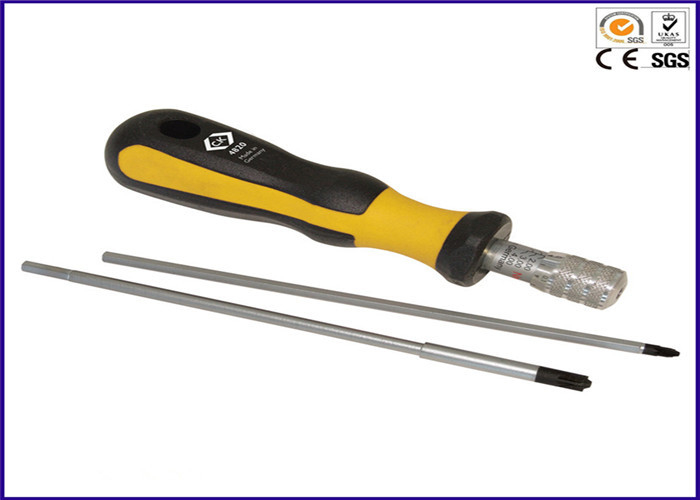

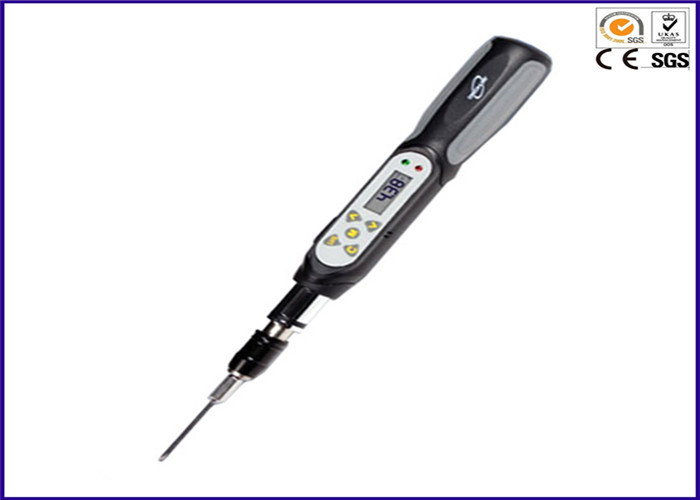

Screw Torque Driver, 1.5LTDK, 3LTDK, 6LTDK, 12LTDK Toys Testing Equipment
Description:
Screw Torque Driver is used to test the maximum torque of the screws in toys that could bear.
As long as the torque settings, stereotyped hand will automatically disconnect the clutch to produce idling, and therefore do not have to worry about the occurrence of excessive solid;
Locking mechanism to lock the set torque, therefore, in the operation to prevent torque deviation;
Set the desired torque value, regardless of who can be the same torque to a solid job;
Incidental products with + - Segment;
Can be used in both directions.
Specification:
| Model | Load Range(kgf.com) | Mini scale(kgf.com) | Screwdriver length(mm) |
| 1.5LTDK | 0.1-0.5 | 0.01 | 96 |
| 3LTDK | 0.2-3 | 0.02 | 96 |
| 6LTDK | 0.5-6 | 0.05 | 110 |
| 12LTDK | 2-12 | 0.1 |
160 |
