ISO 8124-1 Toys Testing Equipment Rattle Test Fixture / Baby Rattles Tester

ISO 8124-1 Toys Testing Equipment Rattle Test Fixture / Baby Rattles Tester

  • ISO 8124-1 Toys Testing Equipment Rattle Test Fixture / Baby Rattles Tester
  • ISO 8124-1 Toys Testing Equipment Rattle Test Fixture / Baby Rattles Tester
  • ISO 8124-1 Toys Testing Equipment Rattle Test Fixture / Baby Rattles Tester
ISO 8124-1 Toys Testing Equipment Rattle Test Fixture / Baby Rattles Tester
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: EN71-1998 8.16, 16CFR 1510 / ASTM F 963 4.6.2
Model Number: YY1113
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 3-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Product Name: Toys Testing Equipment Usage: Rattle Test Fixture
Material: Aluminum Alloy Volume: 72.6×72.6×30mm
Weight: 320 G
High Light:

screw torque driver

,

tesla gauss meter

ISO 8124-1 Toys Testing Equipment Rattle Test Fixture Baby Rattles Tester





Product information:

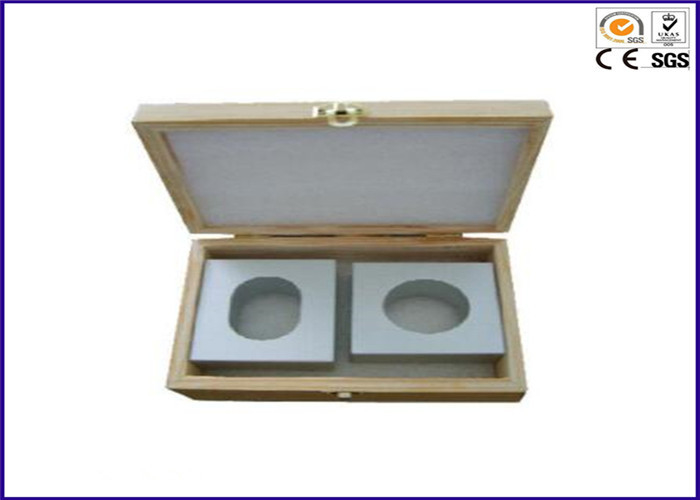

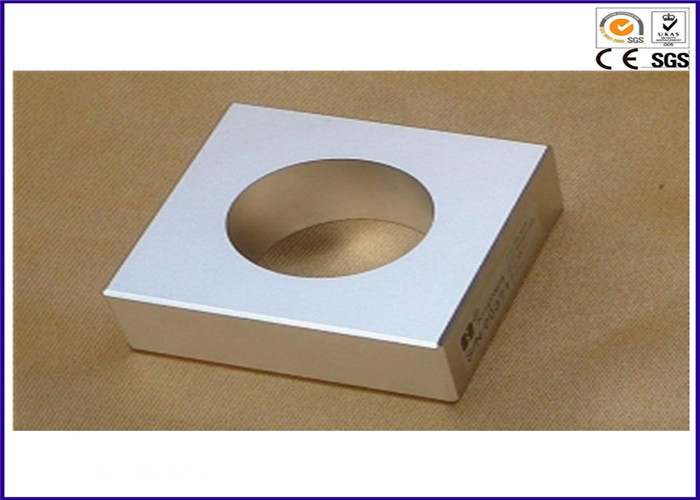

The bell toys tester is also called the sound toys tester, the toys testing template AB and sound toys testing template. There are two kinds of template: the round one and the oval one. It stimulates the volume of the mouth to check whether the toys or the toys’ accessories may be swallowed by the children under 18 months.





Technical parameters:



Model The oval tester The round tester
Standard America 16CFR 1510 / ASTM F 963 4.6.2 16CFR 1510 / ASTM F 963 4.6.2
EU EN71-1998 8.16 EN71-1998 8.16
China GB6675-2003 A.5.3 GB6675-2003 A.5.3
Material Aluminum alloy Aluminum alloy
volume 80×65×30mm 72.6×72.6×30mm
Weight 320 g 320 g



Test purpose: Rattles test is to simulate children's oral capacity. Detection mouth stuffed toys for children, may cause choking or swallowing, and dangerous.





Use and understand:



1. Adjustment being tested toys so that it is most likely to enter and pass through the test plate orientation grooves the toy into the slot, so that the force acting on the toy is only its own gravity.

2. Having nearly spherical, hemispherical, or rounded end portion can pass through the test template toys full depth of the holes.

3. If the toy itself, there may be children stuffed mouth, it may cause choking or ingestion hazard wait. Although not part of the main contents of toys entrance, but their ends remain clogged throat and cause choking hazard.



Design: 18 months and toys for children under the ends should be designed to be large enough, can not penetrate (oval) rattles templates A and (Round) Rattles template B testing.

Applicable Type: 18 months and children under squeeze toys, rattles and toys.



ISO 8124-1 Toys Testing Equipment Rattle Test Fixture / Baby Rattles Tester 0



ISO8124-1 2012.pdf
