FB PS Imada Mechanical Force Gauges High Accuracy Pointer Instructions

FB PS Imada Mechanical Force Gauges High Accuracy Pointer Instructions

  • FB PS Imada Mechanical Force Gauges High Accuracy Pointer Instructions
  • FB PS Imada Mechanical Force Gauges High Accuracy Pointer Instructions
  • FB PS Imada Mechanical Force Gauges High Accuracy Pointer Instructions
  • FB PS Imada Mechanical Force Gauges High Accuracy Pointer Instructions
FB PS Imada Mechanical Force Gauges High Accuracy Pointer Instructions
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ASTM 963 ,EN71-1 2011 8.26 , ISO8124-1 5.28/29
Model Number: YY1116
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 3-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Product Name: Toys Testing Equipment Usage: FB PS Imada Mechanical Force Gauge
Accuracy: 0.3% F.S Capacity: 150 Lbf
Model: FB/FS Overload Capacity: 165 Lbf
High Light:

screw torque driver

,

tesla gauss meter

FB PS Imada Mechanical Force Gauge High Accuracy Pointer Instructions





Description:



FB/PS force gauges will withstand industrial environments and yet retain calibration for extended periods.

Ergonomic design makes it ideal for hand held use, or it can be mounted to a test stand. The Zero-Tare ring allows you to zero the gauge to compensate for measuring attachments and changes in measuring position. The real time/peak hold selector switch allows you to observe transients or capture peaks. Many ranges are available to cover all of your measurement needs (also available in Newtons).

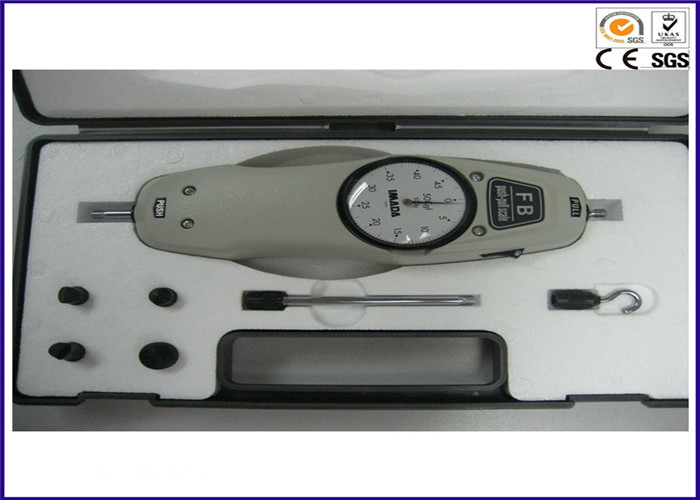

The FB series is sold in kits complete with force gauge, hard carrying case, five measuring attachments (flat head, conical, chisel, notched, and small hook) as well as a 3 inch extension shaft.





Details:

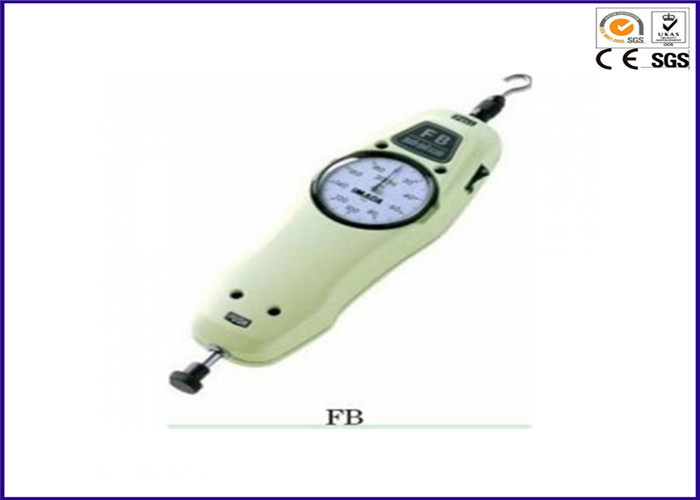

a) Model: FB/FS manufacturer: Imada (Japan)

b) Simple, rugged, virtually maintenance free.

c) Retains a high degree of accuracy for extended periods.

d) Ergonomic, heavy-duty metal construction.

e) No batteries needed.

f) Intrinsically safe in hazardous environments.

g) Capacity up to 150 lbf (push and pull).

h) Overload capacity 165 lbf on all ranges.

i) Tare ring.

j) FB Ranges (Resolution) Accuracy: 0.3% F.S.

k) Real time and peak mode.

l) Full set of accessories and carrying case included.





Main Feature:



1. Pointer instructions,reading easy,accurate,high precision;
2. Dual display of two units,no unit conversion;
3. Peak hold and the real value of the load are free to switch,easy to use;
4.

Hand-held design,simple operation,and can be installed in all the types of tables to use,and match all kinds of clamps,which is facilitated to test

various types of products.





Technical Parameter:



Model Measuring Range Resolution Model Measuring Range Resolution Model Measuring Range Resolution
FB-1k 1kgf 10gf FB-10N 10N 0.1N FB-5lb 5lb 0.05lb
FB-2k 2kgf 20gf FB-20N 20N 0.2N FB-10lb 10lb 0.1lb
FB-3k 3kgf 25gf FB-30N 30N 0.25N FB-20lb 20lb 0.2lb
FB-5k 5kgf 50gf FB-50N 50N 0.5N FB-30lb 30lb 0.25lb
FB-10k 10kgf 100gf FB-100N 100N 1N FB-50lb 50lb 0.5lb
FB-20k 20kgf 200gf FB-200N 200N 1N FB-100lb 100lb 1lb
FB-30k 30kgf 250gf FB-300N 300N 2.5N Aluminum shell|Peak hold function
Zeroing function|Annex:6 parts
Accuracy: 0.3%F.S

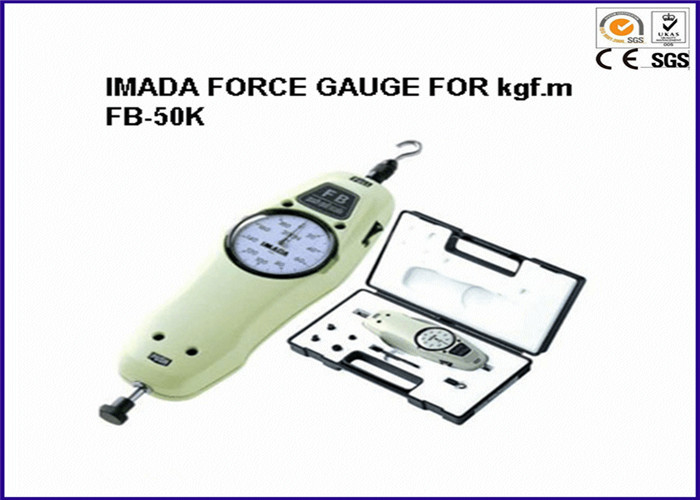

FB-50k 50kgf 500gf FB-500N 500N 5N





FB PS Imada Mechanical Force Gauges High Accuracy Pointer Instructions 0



FB PS Imada Mechanical Force Gauges High Accuracy Pointer Instructions 1
