Dynamic Strength Testing Equipment For Wheeled Ride On Toys Impact Test

Dynamic Strength Testing Equipment For Wheeled Ride On Toys Impact Test

  • Dynamic Strength Testing Equipment For Wheeled Ride On Toys Impact Test
  • Dynamic Strength Testing Equipment For Wheeled Ride On Toys Impact Test
  • Dynamic Strength Testing Equipment For Wheeled Ride On Toys Impact Test
Dynamic Strength Testing Equipment For Wheeled Ride On Toys Impact Test
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: EN71-1 2011 8.22.3
Model Number: YY1120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2 sets per month
Contact Now
Detailed Product Description
Product Name: Toys Testing Equipment Usage: Dynamic Strength Testing Machines
Test Sample: Children Ride-on-Toys Sample No: 1 Pcs Per Time
Test Speed: 2±0.2m/s Load Weight: 25Kg/50Kg
Barrier: 50mmx50mm Passage Width: 90cm
Weight: 650Kg Power: 380V 50Hz
High Light:

sharp point tester

,

tesla gauss meter

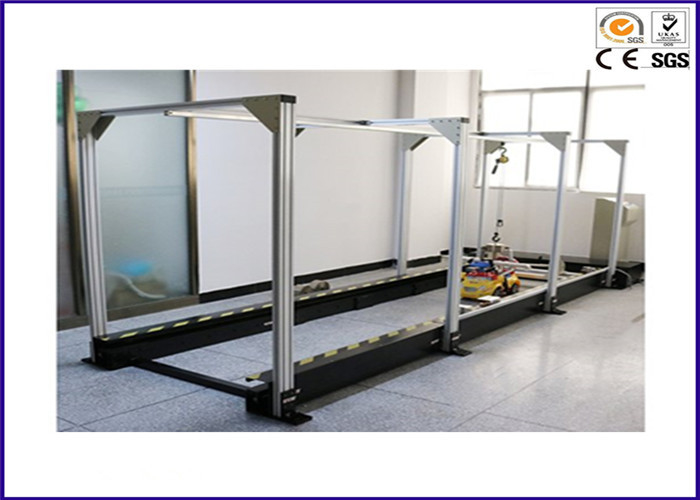

Dynamic Strength Testing Equipment for Wheeled Ride-on Toys-Impact Test





Purpose:



This machine is used to test the dynamic strength performance of toy scooter by such movement that drive the toy three times at a steady speed of (2.0±0.2)m/s perpendicularly into a non-resilient step with a height of (50±2)mm.





Principle:

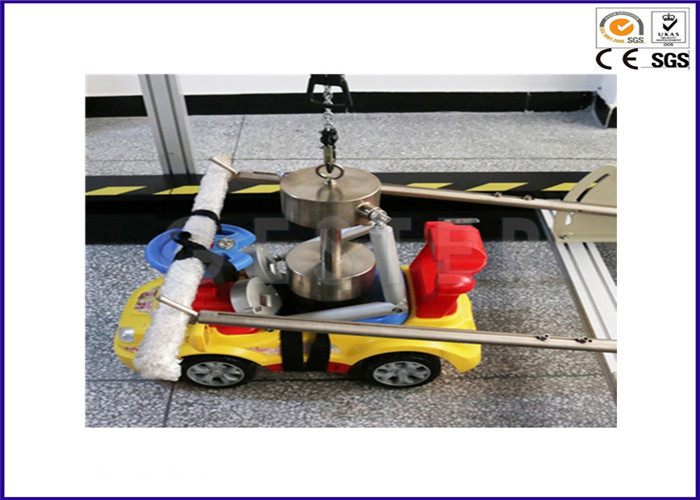

The machine simulates the running performance of the toy scooters with a load. The load is secured to the toy and articulated arms with the elbow joints in a downward position are attached to the steering wheel or handlebars if the toy is so equipped. The toy is driven three times into a non-resilient step at a steady speed of (2.0±0.2)m/s.

Determine structure and performance of the toy in good or bad to conform to relevant requirements.





Standard:



According to EN71-1 2011 8.22.3 section





Specification:



Item Specification
Test Sample Children Ride-on-Toys
Sample No 1 pcs per time
Test Speed 2±0.2m/s
Load weight 25Kg/50Kg
Barrier 50mmx50mm
Passage width 90cm
Size(WxDxH) Machine:153x450x156cm Control box:36x32x100cm
Weight ≈650Kg
Power 1∮ AC 380V 50Hz



Total weight after package: 820KG, Total Volume: 2.4CBM
