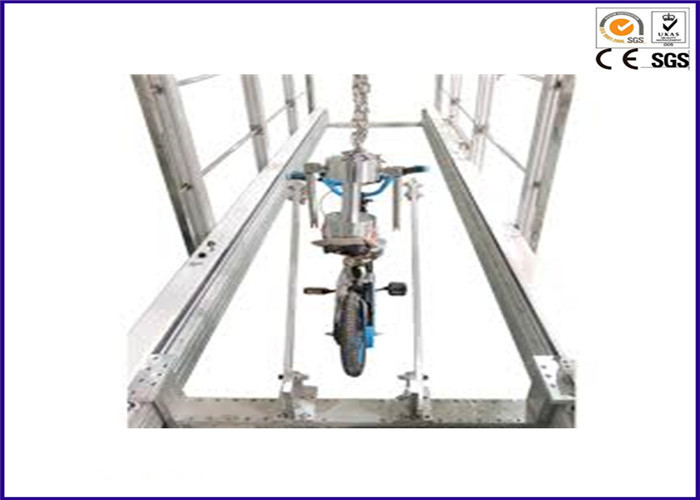

EN71-1 Dynamic Stability Testing Equipment , PLC Control Toys Impact Testing Machine

EN71-1 Dynamic Stability Testing Equipment , PLC Control Toys Impact Testing Machine

  • EN71-1 Dynamic Stability Testing Equipment , PLC Control Toys Impact Testing Machine
  • EN71-1 Dynamic Stability Testing Equipment , PLC Control Toys Impact Testing Machine
EN71-1 Dynamic Stability Testing Equipment , PLC Control Toys Impact Testing Machine
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB14749-2006 5.9,ASTM F977,EN1273,ANSI315.1
Model Number: YY1122
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2 sets per month
Contact Now
Detailed Product Description
Product Name: Toys Testing Equipment Usage: Toys-Impact Test 2m/s
Sample No: 1 Pcs Per Time Test Speed: 2±0.2m/s
Weight Model: 15 Kg, 12 Kg Step Height: 50mm, 40mm
Test Platform: 6000 X1000mm(L*W) Power: 380V 50Hz
High Light:

sharp point tester

,

tesla gauss meter

PLC Control EN71-1 Toys Testing Equipment for Dynamic Stability Test Impact Test





Application:



Dynamic stability test



Adjust the seat to its highest position.Place walkers,place weight A on the seat vertically,fix it with a light object to prevent it moving.Drive the walkers hit the rigid block whose height is 40mm.at a speed of 2m/s +/- 0.2m/s. Then observe sample.



Impact test



Place walkers,place weight A on the seat vertically,fix it with a light object to prevent it moving.Drive the walkers hit a 20 mm thick plywood or a wall made of similar material.





Technical parameters:



1. control system: PLC,touch screen display the impact velocity and impact kinetic energy, test times

2. imported servo motor, speed from 0 - the biggest only need 0.3 seconds

3. Weight model: 15 kg (cart, electric vehicles) ,12 kg (walker)

4. Step height:

50 mm high inelastic steps (children's electric cars)

40 mm high block (walker)

5. Rigid wall: thickness of 20 +/-0.5 mm (walker)

6. Test platform: 6000 x1000mm(L*W)

7. servo motor speed double closed loop control, ensure that the impact velocity is constant, accurate

8. weight specific protection device, ensure the weight not overturned

9. Power :AC220V ,50Hz



Standards:GB14749-2006 5.9,ASTM F977,EN1273,ANSI315.1 etc



EN71-1 Dynamic Stability Testing Equipment , PLC Control Toys Impact Testing Machine 0



GB14746.pdf
