PLC Outdoor Activity Toys Testing Equipment Horizontal Thrust Tester ISO8124-4

PLC Outdoor Activity Toys Testing Equipment Horizontal Thrust Tester ISO8124-4

  • PLC Outdoor Activity Toys Testing Equipment Horizontal Thrust Tester ISO8124-4
  • PLC Outdoor Activity Toys Testing Equipment Horizontal Thrust Tester ISO8124-4
PLC Outdoor Activity Toys Testing Equipment Horizontal Thrust Tester ISO8124-4
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO8124-4 6.1.2/ 6.1.4
Model Number: YY1147
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 3-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Product Name: Toys Testing Equipment Usage: Horizontal Thrust Test
Material: Aluminium Alloy Load Cell Capacity: 0-2500N
Accuracy: +/-0.5% Direction: Horizontal
Loading Point Height: 30-180cm Controller: PLC+ Touch Screen
High Light:

sharp point tester

,

tesla gauss meter





PLC Outdoor Activity Toys Testing Equipment Horizontal Thrust Tester ISO8124-4





Description:

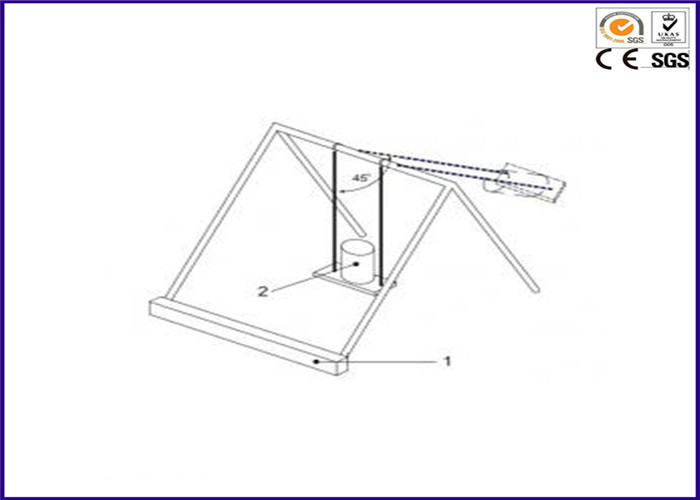

A horizontal force is simultaneously applied at each suspension point to simulate the horizontal forces created by pendulum effect.





Parameters:



1. Load cell capacity: 0-2500N
2. Accuracy: +/-0.5%
3. Direction: Horizontal
4. No of loading advice:4 in total
5. Loading Point height: 30-180cm

6. Motor : 4 servo actuators

7. Controller: PLC+ Touch screen

8. Test frame: Alu.material




Standards:


ISO8124-4 6.1.2/ 6.1.4





Procedure:



Assemble the toy in accordance with the manufacturer's instructions and place or fix it on a rigid horizontal surface for a free-standing toy, stops may be used to prevent it from slipping on the surface. They shall, however, not prevent the toy from overturning.
Swings and other activity toys with crossbeams supplied with removable ground anchors shall be tested with the anchors fixed to the standing surface in accordance with the manufacturer's instructions.
On the suspension point(s), simultaneously apply horizontal forces of (500 ± 20) N per user in the Swing direction.
Where a swing element has multiple suspension points, distribute the load equally between the points forces on multiple suspension points shall be applied in the same direction simultaneously.
Observe whether the toy tips over



PLC Outdoor Activity Toys Testing Equipment Horizontal Thrust Tester ISO8124-4 0
