DONGGUAN YUYANG INSTRUMENT CO.,LTD
China Good Quality Manufacturer of Testing Equipment
 |
| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ASTM F963, EN-71, ST2002 |
| Model Number: | YY1156 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |

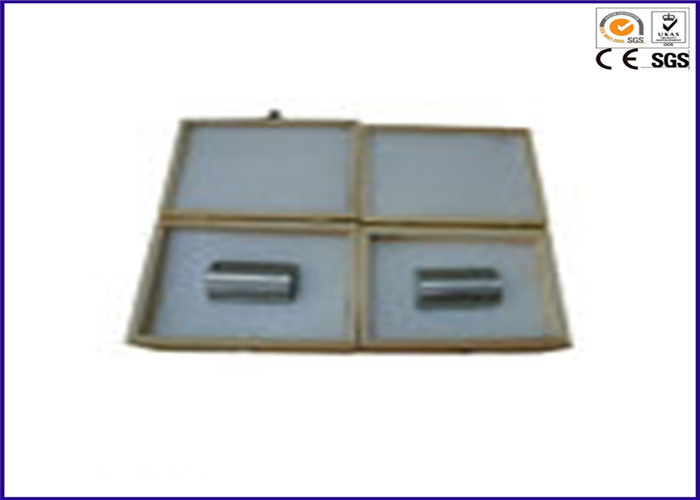

| Packaging Details: | Plywood Box |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 sets per month |
| Product Name: | Toys Testing Equipment | Usage: | Small Part Cylinder |
|---|---|---|---|
| Material: | Stainless Steel | Dimension: | 70*38*38 Mm |
| Weight: | 430g | Standard: | EN71-1 Figure 18, ASTM 963 |
| High Light: | sharp point tester,tesla gauss meter |
||

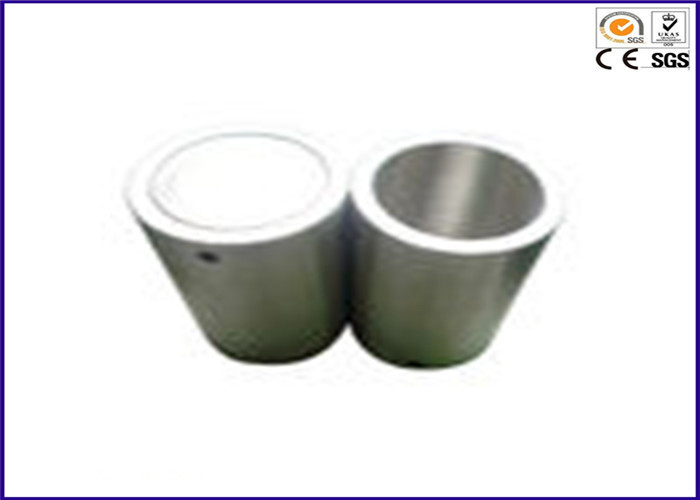

Stainless Cylinder Toys Testing Equipment EN71-1 Figure 18 Small Part
Description:
Small part cylinder conforms to the standards of ASTM F963 and EN-71as well as ST2002. It is used to check whether there is possibility that the children's products like the toys can be swallowed by the children under 36 months.
Specification:
| Material | stainless metal |
| Dimension | 70*38*38 mm |
| Weight | 430 g |
| Standards | EN71-1 Figure 18, ASTM 963 |
Testing principle:

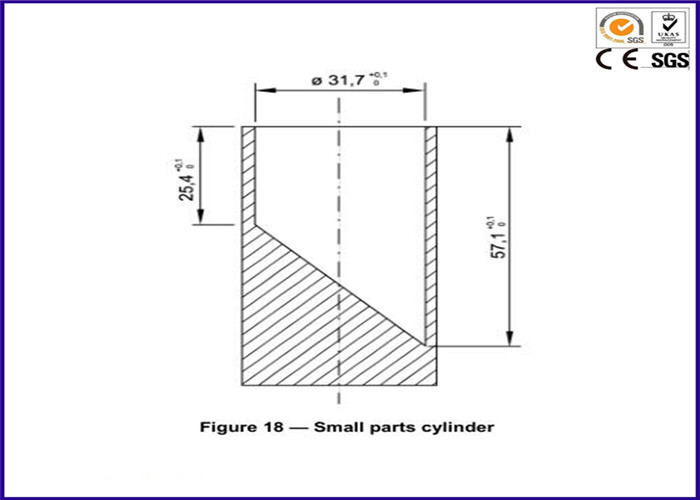

Place the toy or component without compressing it and in any orientation in a small part cylinder having dimension as indicated in figure 18.
Determine whether the toy or component fits entirely within the cylinder.
If the toy or component can fits entirely within the cylinder, the object is proved to be small part.
