PMCC Closed Cup Flash Point Tester Oil Testing ASTM D93 Fully Automatic

PMCC Closed Cup Flash Point Tester Oil Testing ASTM D93 Fully Automatic

  • PMCC Closed Cup Flash Point Tester Oil Testing ASTM D93 Fully Automatic
  • PMCC Closed Cup Flash Point Tester Oil Testing ASTM D93 Fully Automatic
PMCC Closed Cup Flash Point Tester Oil Testing ASTM D93 Fully Automatic
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: ISO
Model Number: PMCC-II
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD6000/SET
Packaging Details: PLYWOOD CASE
Delivery Time: 15 DAYS
Payment Terms: Western Union, D/A, L/C, T/T
Supply Ability: 100 SETS PER MONTH
Contact Now
Detailed Product Description
Standard: ASTM D93 Product Name: Pmcc Flash Point Test Instrument
Color: Grey Condition: New
Operation: Fully Automatic Display: LCD
Printer: Yes Warranty: 1 Year
High Light:

oil analysis machine

,

oil analyzer equipment

Fully-automatic PMCC Closed Cup Flash Point Analyzer Oil Testing ASTM D93


Summary

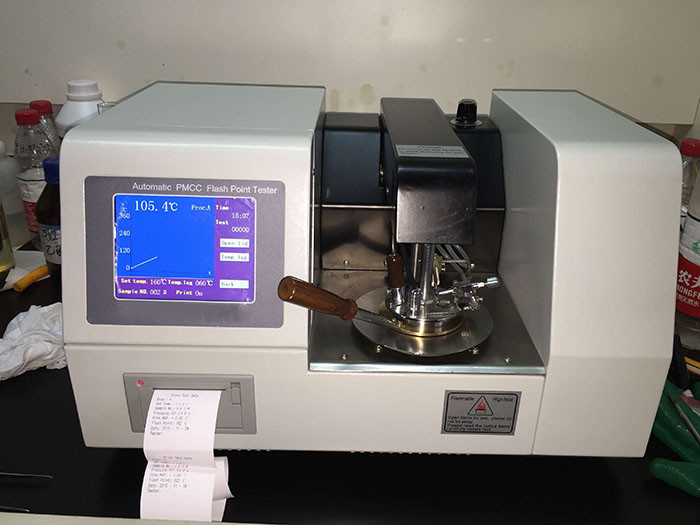

PMCC-II Fully-automatic Pensky-Martens Closed-Cup Flash Point Test Instrument Analyzer is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point - Pensky-Martens closed cup method and ASTM D93 Standard Test Method for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products.

I. Main technical features
1. It adopts LCD screen to display. Full English man-machine dialog interface. It can preset the parameters of expected flash point, sample mark number, atmospheric pressure, test date, etc. It has menu to prompt and input function of guide type.
2. It adopts simulation tracking display the function curve of temperature rising and test time. It has prompt functions of English mis-operation, test date and test time.
3. It is equipped with standard RS-323,485 computer port. The lower computer can save 100 groups of historical data. The test data can be saved for a long time, transmitted and modified if the instrument being connected with computer.
4. PMCC-II Fully-automatic Pensky-Martens Closed-Cup Flash Point Test Instrument Analyzer can correct the influence of atmospheric pressure and calculate the correction automatically.
5. Differential detection. Automatically correct the systematic deviation.
6. Automatically open the lid, ignite, detect and print test data. The test arm lifting up and down automatically.
7. It adopts electric ignition to fire light the gas flame. It will light only need to press the button.
8. Humanized design, beautiful and safe. Easy to operate.

II. Main technical specifications
1Power supplyAC(220±10%)V,50Hz
2Flash point determination
Range: Ambient to 300℃
Repeatability: ≤3℃
Reproducibility:≤6℃
Accuracy:0.1℃
3Heating rate
Procedure A: (5~6)℃/min, Procedure B: (1~1.6)℃/min
Automatic control and manually adjustable.
4Stirring rate
Procedure A: (90~120)RPM, Procedure B: (250±10)RPM
Automatic control and manually adjustable
5Igniting modeElectric ignition. Gas flame diameter:3.2mm~4.8mm
6Working condition
Ambient temperature:(10~40)℃
Relative humidity:≤80%
7Maximum power consumption500W
8Dimension520mm×360mm×310mm

















III.Accessories
No.ItemUnitQty
1Oil CupPiece1
2Power cord (250V 6A)Piece1
3Printer paperRoll1
4Burning torchPiece1
PMCC Closed Cup Flash Point Tester Oil Testing ASTM D93 Fully Automatic 0
