Automatic Kinematic Viscometer Lubricant Oil Viscosity Testing Equipment
Summary

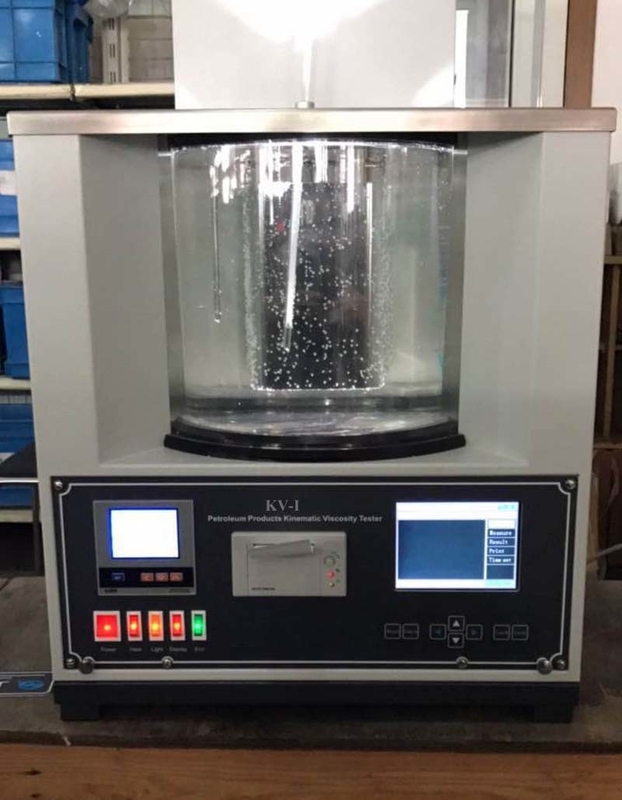

KV-I automatic kinematic viscometer is designed and made as per the industrial standard of People’s Republic of China SY/T5651 Technical Condition of Petroleum Products Kinematic Viscosity Tester, GB/T 265 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity and ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids. It is suitable to determine kinematic viscosity of liquid petroleum products (Newtonian fluids) by measuring the time for a volume of liquid to flow under gravity through a calibrated glass capillary viscometer at a constant temperature.
I. Main technical features
1. Single chip microcomputer and colored LCD technology. High intelligence and automation.
2. Intelligent signal sampling, data measuring, parameters operating, and result output. All the operations are finished automatically.English man-machine conversation interface. Easy to operate.
3. The instrument is equipped with timing function. It can choose valid flowing time period and calculate arithmetic average automatically. It can also preset the viscosity coefficient , calculate the viscosity after the test and print the test results automatically.
4. KV-I automatic kinematic viscometer can do one test alone or doing two tests at one time by setting the parameters.High efficiency.
5. It has the parameters saving function. The instrument will automatically save the parameters of capillary tube diameter, coefficient and so on after these parameters being setted. When doing test with the same capillary, no need to set these parameters again.
6. KV-I automatic kinematic viscometer adopts desktop and all-in-one machine design. Convenient to use.
II. Main technical specifications
1. Power supply:AC(220±10%)V, 50Hz
2. Heating power:1700W
3. Temperature range:Ambient to 100.0℃
4. Temperature control accuracy:±0.01℃
5. Bath capacity:20L
6. Timing range: 0.0s～9999.9s
7. Timing accuracy: ±0.05% within 60min
8. Amount of capillary viscometer tubes: 4 capillary viscometers
9. Stirring motor: 6 W, 1200 RPM
10.Working condition: (Ambient temperature-10)℃～35℃, RH: ≤85％
11.Temperature sensor: RTD, Pt100
12.Maximum power consumption: 1800W
13.Capillary viscometers tubes(Pinkevitch viscometer): 7 pieces in total.The inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm
14.Dimension: 530mm×400mm×670mm
III.Accessories
| No. |
Item |
Unit |
Qty |
Remarks |
| 1 |
Capillary viscometer (total of 7) |
Set |
1 |
|
| 2 |
Silica gel plug (3#) |
Piece |
1 |
|
| 3 |
Capillary holder |
Piece |
4 |
|
| 4 |
Rubber tube, Φ10 |
Meter |
0.5 |
|
| 5 |
Rod type mercury thermometer (0 ~ 50 ℃, 50 ~ 100 ℃, scale division all 0.1 ℃)
Grade: Standard Second Thermometer
|
Piece |
1 for each |
|
| 6 |
Cover |
A |
4 |
|
| 7 |
Stopping ring for thermometer (1#) |
Piece |
2 |
|
| 8 |
15A fuse (Ф5 × 20) |
Piece |
2 |
|
