ASTM D1160 Reduced Pressure Vacuum Distillation Boiling Point Test Apparatus

ASTM D1160 Reduced Pressure Vacuum Distillation Boiling Point Test Apparatus

  • ASTM D1160 Reduced Pressure Vacuum Distillation Boiling Point Test Apparatus
  • ASTM D1160 Reduced Pressure Vacuum Distillation Boiling Point Test Apparatus
ASTM D1160 Reduced Pressure Vacuum Distillation Boiling Point Test Apparatus
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO
Model Number: DA-II
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD1500 per set
Packaging Details: Plywood case
Delivery Time: 15 days
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Test Standard: ASTM D1160 Operation: Manual
Color: Grey Max. Residual Pressure: 2mmHg
Power Supply: AC(220±10%)V, 50Hz Warranty: 1 Year
High Light:

oil testing machine

,

oil analyzer equipment

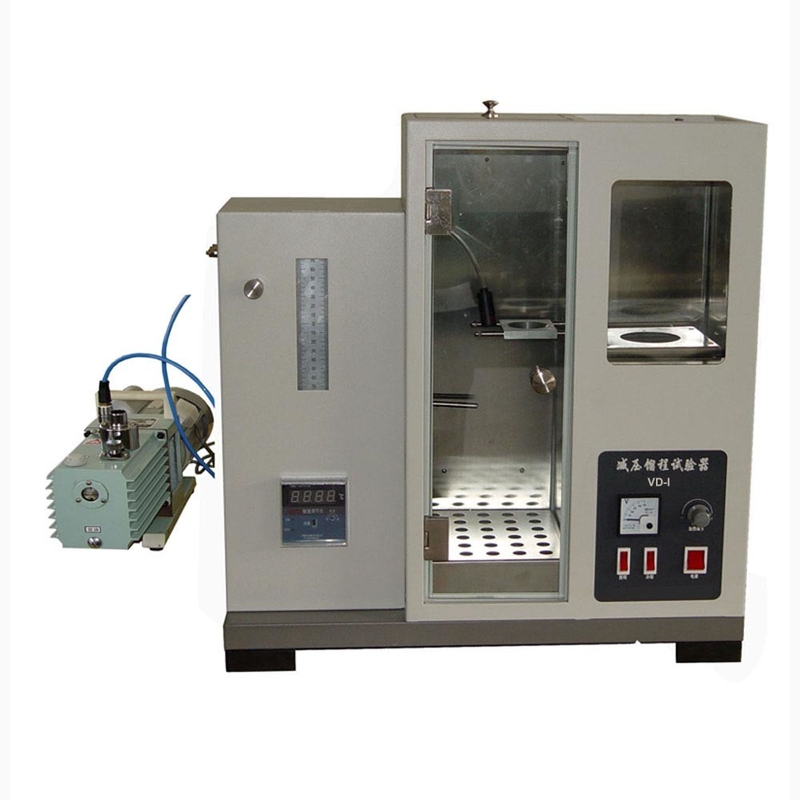

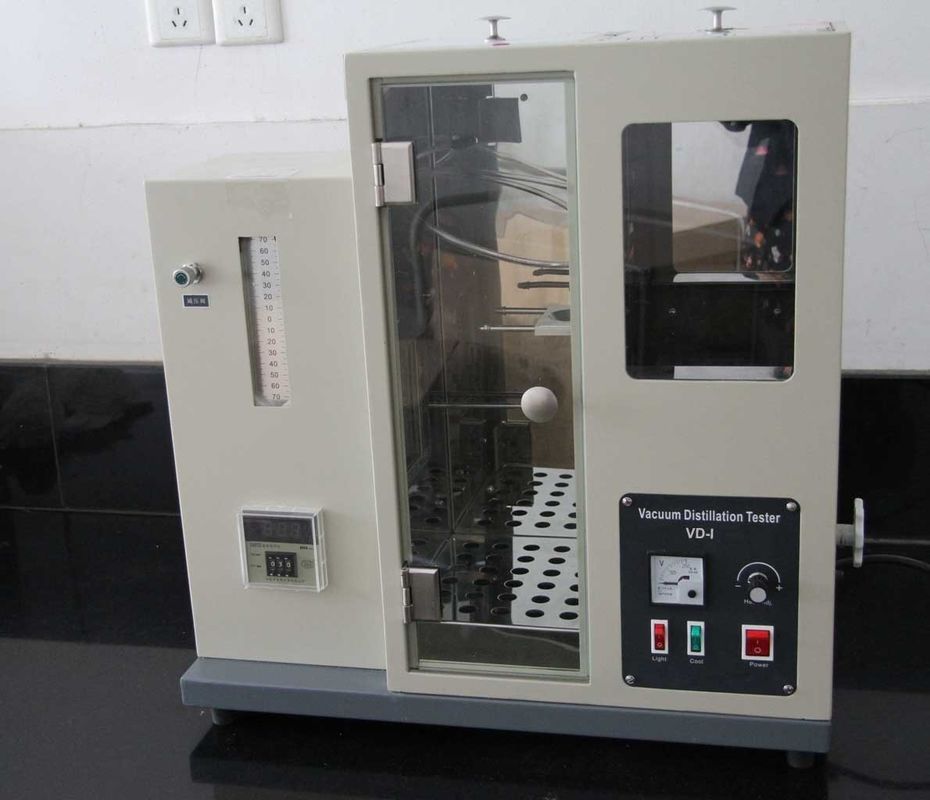

VD-I Reduced Pressure Vacuum Distillation Boiling Point Test Apparatus

Summary
VD-I vacuum distillation apparatus is designed and made as per the industrial standard of People's Republic of China SH/T0165-92 Standard Test Method for Distillation of High Boiling Point of Petroleum Products at Reduced Pressure. It is suitable to determine the distillation characteristics of high boiling point petroleum products, such as wax oils, lubricating oils, etc.

I. Main technical features
1. VD-I vacuum distillation apparatus is desktop structure. It is composed of distillation test part and vacuum process part. It can meet requirements of SH/T 0165
2. The power of the heating furnace can be adjusted continuously. It equips a cooling device to make the heating furnace cooled down rapidly after determination. It is convenient for next test.
3. The vacuum pump has good effect. The max residual pressure is 2mmHg.

II. Main technical specifications
1. Power supply: AC 220 V±10%, 50 Hz
2. Heating power: Heater for distillation flask:1000W,Heater for receiver:350W
3. Heating power for distillation flask: (0~1000)W, adjustable
4. Temperature range for air bath of receiving flask: Ambient to 100℃, adjustable
5. Temperature sensor of air bath: Pt100, RTD
6. Temperature control mode for air bath: Digital temperature controller
7. Temperature control precision: Set temp. ±1 ℃
8. Capacity of buffer vessel: 1000 ml
9. Max. residual pressure: 2mmHg
10. Illumination light in the air bath: Energy saving lamp
11. Working condition: Ambient temperature: (5~35)℃
Relative humidity: ≤85%

III.Accessories
No. Item Unit Qty Remarks
1 Vacuum pump(2L) Set 1 Model 2XZ-2
2 Quartzose distillation flask Piece 1
3 Measuring cylinder Piece 1
4 Thermometer(0~360℃) Piece 1
5 Stop collar for thermometer(1#) Piece 2
6 Stopper(9#) Piece 1
7 10A fuse(Ф5×20) Piece 2
8 PU pipe, Φ6(OD)×Φ4 (ID) Meter 2 Connect vacuum pupm to distillation apparatus
9 PU pipe, Φ6(OD)×Φ4 (ID) Meter 0.4 Connect U-shape tube to distillation apparatus
10 U-shape tube Piece 1
11 Suction head Piece 1
12 Glass syringe(5ml) Piece 1
13 Sealing grease Case 1
ASTM D1160 Reduced Pressure Vacuum Distillation Boiling Point Test Apparatus 0ASTM D1160 Reduced Pressure Vacuum Distillation Boiling Point Test Apparatus 1
