| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO9001 |
| Model Number: | YYE-004 |
| Packaging Details: | standard wooden case |
|---|---|
| Delivery Time: | 10-15 work days |
| Supply Ability: | 100 Set/Sets per Month |
| Power(W):: | 0.45 - 2.2 KW | Voltage:: | 100-380V,50HZ,3P |
|---|---|---|---|
| Weight:: | 2300KG The Largest One | Baking Car(PCS):: | 8pcs |
| Radiator Area: | 100m2 | Capacity:: | 60-480 Kg/h |
| High Light: | thermal shock test chamber,salt spray test chamber |
||

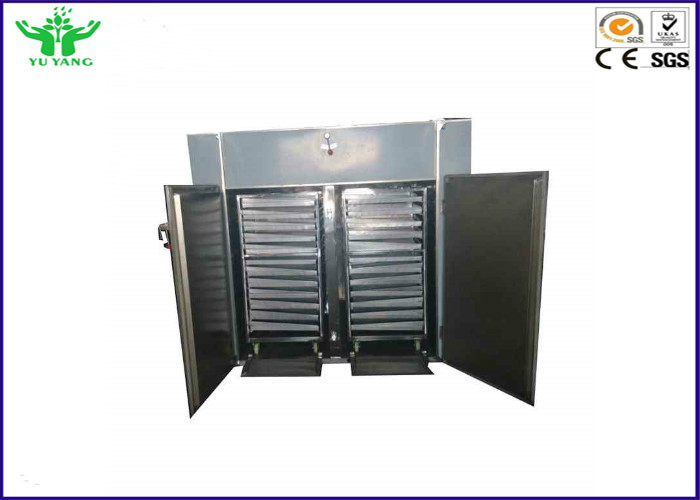

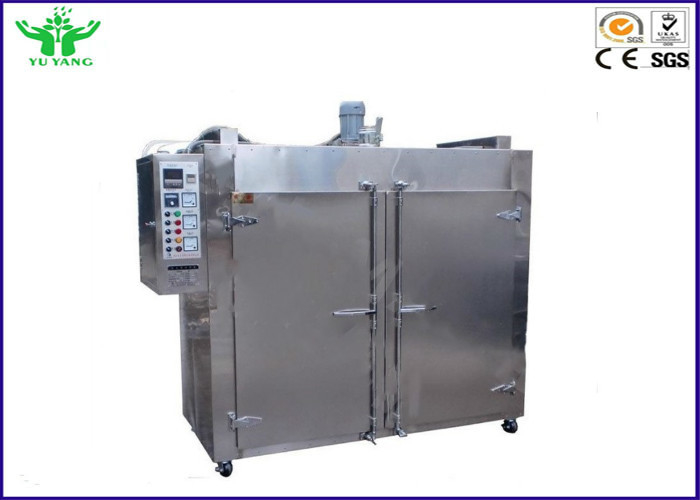

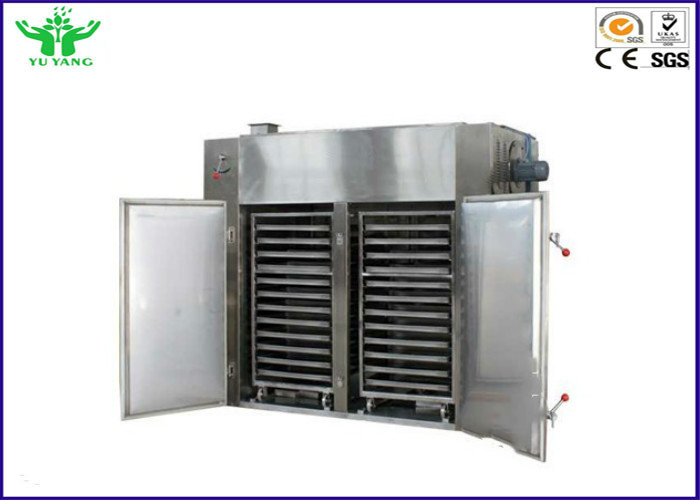

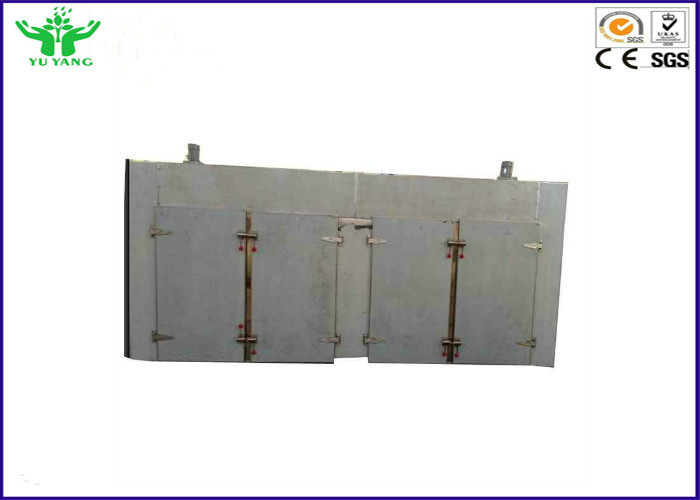

ISO9001 silica gel drying oven / Environmental Test Chamber 60-480 Kg/h
Product Description:
In drying process, the cold air is sucked into the drying chamber by the circulation fan and flow through the inner placed electrical heater ( or oil/gas burner ) in the air channel to get required temperature. With the help of air distributor, the hot air evenly flow through each layer of porducts for heat transfer and carry away the evaporated moisture. Most of the damp air flows back to the circulation fan for the next drying circulation while part of the damp air will be exhausted for energy saving.

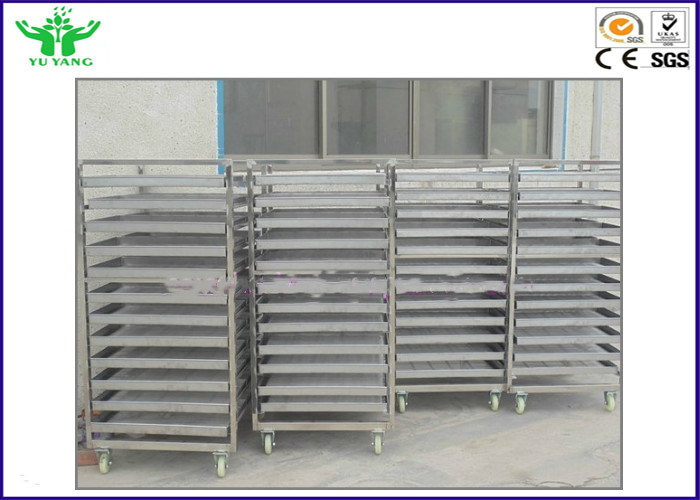

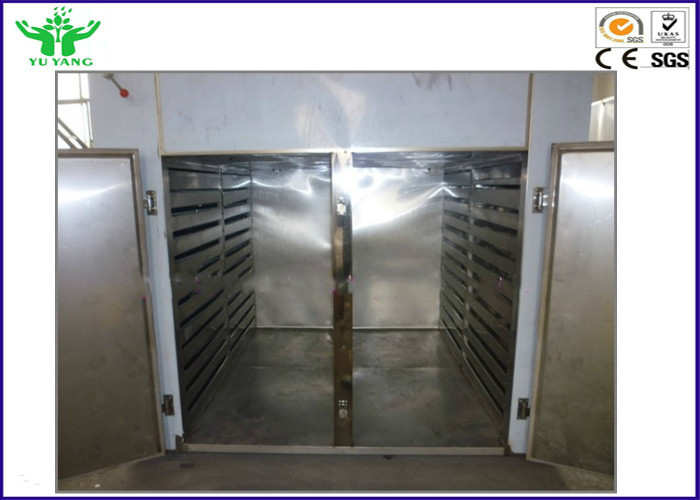

After drying, open the chamber door and pull out the trolleys for discharging. The following drawing will show you how it works.
Introduction:
1. CT drying oven is adopt low noise, withstand high temperature axial flow blower and automatic temperature control system, all cycle system is closed, make oven thermal efficiency improved 3-7% from traditional 35-45%, the highest thermal efficiency is up to 50%.
2. The whole oven we can do stainless steel, carbon steel and contact materials parts stainless steel. It is proper for medicine, chemical, food, agricultural products, aquatic product, textile, heavy industry material heating, dehydrate and drying. For example, crude drug, Chinese medicines Yinpian, pellets, packaging bottle, dehydrated vegetable, fruit, sausage, electric element and so on.
3. The heating source can be electric or gas according to different client's need.
Feature:
Majority of the heat cycles in the dryer,so CT-C Series Heat Cycling Dryer has high efficiency and low energy consumption.The dryer is equipped with adjustable air distributing plates for better ventilation among materials.Heat carriers can be oil,steam,hot water,electricity and etc. It has the feature of low noise,stability and reliability in operation,easy install and maintenance,and auto-temp control.
Main Application:
This machine is widely applied in diverse industries to dry material,accelerate solidification,and dehydrate.Material can be herbs,fruits,granules,medicine vegetable,electronics chips and baking finish.
Nowadays, Jiangyin Haixiang Machinery Co.,ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.
|
Model |
CT-I |
CT-II |
CT-III |
CT-IV |
|
Every time drying(kg) |
120kg |
240kg |
360 |
480kg |
|
Power(kw) |
1.1kw |
1.1kw |
2.2kw |
2.2kw |
|
Steam consumption(kg/h) |
20 |
40 |
60 |
80 |
|
Radiator area(m2) |
20 |
40 |
80 |
100 |
|
Air volume(m3/h) |
1400 |
5200 |
9800 |
9800 |
|
Baking tray(PCS) |
48 |
96 |
144 |
192 |
|
Baking car(set) |
2 |
4 |
6 |
8 |
|
Size(mm) |
