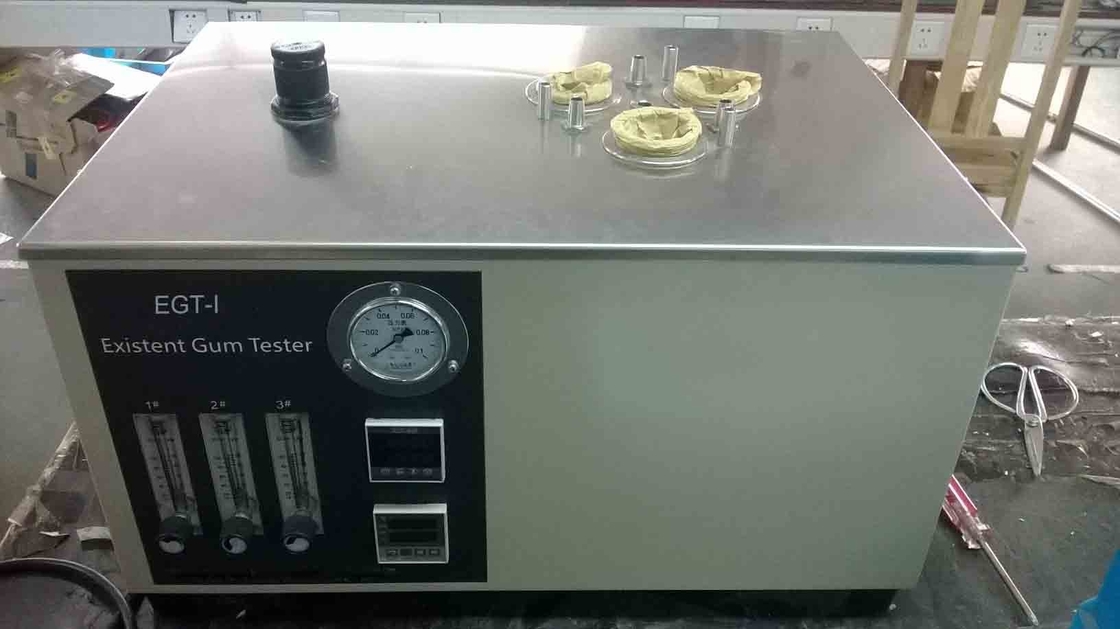

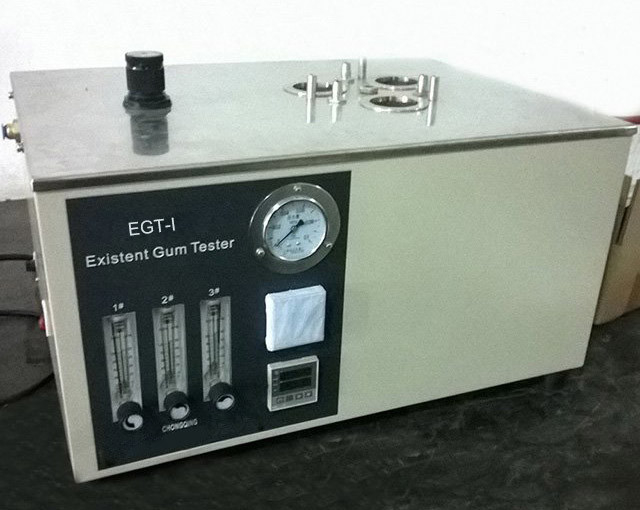

Fuel Oil Existent Gum Tester Jet Evaporation Method Automatic Temperature Control

Fuel Oil Existent Gum Tester Jet Evaporation Method Automatic Temperature Control

  • Fuel Oil Existent Gum Tester Jet Evaporation Method Automatic Temperature Control
  • Fuel Oil Existent Gum Tester Jet Evaporation Method Automatic Temperature Control
  • Fuel Oil Existent Gum Tester Jet Evaporation Method Automatic Temperature Control
Fuel Oil Existent Gum Tester Jet Evaporation Method Automatic Temperature Control
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: ISO
Model Number: EGT-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD3500
Packaging Details: Plywood case
Delivery Time: 15 days
Supply Ability: 100 Sets per month
Contact Now
Detailed Product Description
Test Standard: ASTM D381 Test Method: Jet Evaporation
Keyword: Existent Gum Tester Power Supply: AC(220±10%)V,50Hz
Test Sample: 3 PCS Size: 590mm×480mm×340mm
Working Temperature: (160~165)℃ Temperature Control: Automatic
Warranty: 1 Year
High Light:

oil analysis machine

,

oil testing machine

ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method

Summary
This existent gum tester is designed and made as per standards GB/T 8019 Standard test method for gum content in fuels by jet evaporation and ASTM D381Standard test method for gum content in fuels by jet evaporation. It is suitable to determine the existent gum content of aviation gasoline and motor gasoline (Not suitable to determine the existent gum content of aviation turbine fuel)

I. Main technical features
1. This existent gum apparatus equips a specially designed heating bath. The gas circuit is designed reasonably and the effect of evaporation is good.
2. The material of working bench is stainless steel. It has 3 sample holes. Each jet flow can be adjusted and controlled by an independent flowmeter. It can do 3 determinations at the same time.
3. This existent gum instrument is desktop structure. Simple design and easy to operate. It equips an air compressor to make it meet requirements of standard.

II. Main technical specifications
Power supply AC(220±10%)V,50Hz,2500W
Dimension of evaporation bath Φ260mm*130mm
Sample positions 3 positions
Dimension of sample positions Φ51mm*70mm
Working temperature (160~165)℃
Temperature control Automatic
Temperature display Digital display
Flow display Displayed by a ball float type flowmeter.
Working pressure of air reducing valve 0.035MPa
Air source External connection, over (1000±150)ml/s
Dimension 590*480*340mm (Thermometer holder is not included)

III.Accessories
No. Item Unit Qty Remarks
1 Air compressor Set 1
2 Air compressor power supply line(Connected by air compressor specification requirements) Piece 1 Instructions included
3 Trumpet type nozzle Piece 3
4 Thermometer holder Piece 3
5 Beaker Piece 6
6 Thermometer (-5℃〜400℃, scale division is ±1℃) Piece 4
7 15 A fuse (Φ5×20) Piece 2
8 Air hose Piece 1
9 Sintered glass funnel Piece 1
10 Stainless steel forceps (25 cm) Piece 1
11 Crucible pliers Piece 1
12 Air filter assembly Set 1 User-installed
Fuel Oil Existent Gum Tester Jet Evaporation Method Automatic Temperature Control 0
