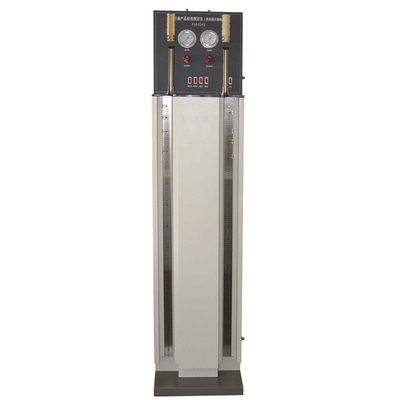

Safe Liquid Petroleum Oil Analysis Lab Equipment FIA Hydrocarbon Tester

Safe Liquid Petroleum Oil Analysis Lab Equipment FIA Hydrocarbon Tester

  • Safe Liquid Petroleum Oil Analysis Lab Equipment FIA Hydrocarbon Tester
  • Safe Liquid Petroleum Oil Analysis Lab Equipment FIA Hydrocarbon Tester
Safe Liquid Petroleum Oil Analysis Lab Equipment FIA Hydrocarbon Tester
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: ISO
Model Number: EGT-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD7200
Packaging Details: Plywood case
Delivery Time: 15 days
Supply Ability: 100 Sets per month
Contact Now
Detailed Product Description
Test Standard: ASTM D1319 Test Method: Fluorescent Indicator Adsorption
Keyword: FIA Hydrocarbon Tester Power Supply: AC(220±10%)V,50Hz
Maximum Power Consumption: 600w Size: 350mm×400mm×1770mm
Gas Supply: Nitrogen Cylinder Warranty: 1 Year
High Light:

oil analysis machine


oil testing machine

ASTM D1319 Liquid Petroleum Oil FIA Hydrocarbon Analysis Testing Equipment
The hydrocarbon tester is designed and made as per national standard of People’s Republic of China GB/T 11132 Standard test method for hydrocarbon types in liquid petroleum products by fluorescent indicator adsorption and ASTM D 1319 Standard Test Method for Hydrocarbon Types in Liquid Petroleum Products by Fluorescent Indicator Adsorption. It is suitable to make the main hydrocarbon of liquid petroleum products shown on the silica gel adsorption column with fluorescent indicator. Then calculate it’s volume percentage. This will be regarded as the quality measurement index of engine fuel, aviation fuel and other fuel oils.
The instrument is a kind of professional instrument determining percentage of aromatic hydrocarbon, olefin and saturated hydrocarbon in petroleum fraction.
I. Main technical features
1. Vertical type and unit-body design. No need to install.
2. This FIA hydrocarbon apparatus is composed of air circuit system, vibration unit, scale indicator, illumination and UV-light detecting component.
3. Two pieces of imported precise glass tube adsorption column. It is convenient to operation.
4. this hydrocarbon analyzer is equipped with a adsorption column cleaning unit. Solve the problem for cleaning the adsorption column.
II. Main technical specifications
1. Power supply: AC220V±5%,50Hz
2. Pressure regulating range of reducing valve:(0~400)kPa
3. Electric agitator: Independently controlled for each way
4. Ultraviolet light source pipe: 1220mm in length,wavelength is 365mm±5nm
5. Illuminating lamp: 1220mm in length,power is 40W
6. Air supply: Nitrogen cylinder (or air compressor,compressed air bottle)
7. Ambient temperature: (5~35)℃
8. Relative humidity: ≤85%
9. Dimension: 350mm×400mm×1770mm
10. Maximum power consumption: 600W
No Item Unit Qty Remarks
1 Precision inner diameter adsorption column Piece 2
2 Imported silica gel (500g) Bottle 1
3 Imported fluorescent indicator (4g) Bottle 1
4 6mm intake pipe(intake pipewith cylinder connection) Set 1
5 Glass grinding plug(with trachea) Set 2
6 Glass flow export Piece 2
7 Grinding mouth clip (28, large) Piece 2
8 Grinding mouth clip (12, small) Piece 2
9 Indicate that the dose spoon Piece 1
10 Special needle used for cleaning Piece 1 When used for washing
11 500ml waste liquid bottle(with rubber stopper and PU tube) Set 1 When used for washing
12 Plastic measuring cup (250ml) Piece 1 When used for washing
13 Magnetic pointer Piece 8 Placed on both sides of the scale
14 Magnetic fixed base Piece 2 When the vibration place the magnetic fixed basein the bottom of the absorption column
15 Fuse (10A, Ф5 × 20) Piece 2 Spare parts
16 Purple light tube, 40W, 365nm wavelength Piece 1 Spare parts, placed inside the instrument
Safe Liquid Petroleum Oil Analysis Lab Equipment FIA Hydrocarbon Tester 0
