| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO |
| Model Number: | KV-H |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD2500 |
| Packaging Details: | plywood case |
| Delivery Time: | 15 days |
| Supply Ability: | 100 sets per month |
| Keyword: | Kinematic Viscosity Tester | Power Supply: | AC 220 V±10%, 50 Hz |
|---|---|---|---|
| Temperature Range: | Ambient To 135.0℃(or 180℃) | Maximum Power Consumption: | 1800W |
| Bath Volume: | About 23L | Size: | 530*400*670mm |
| High Light: | asphalt laboratory equipment,bitumen testing instruments |
||

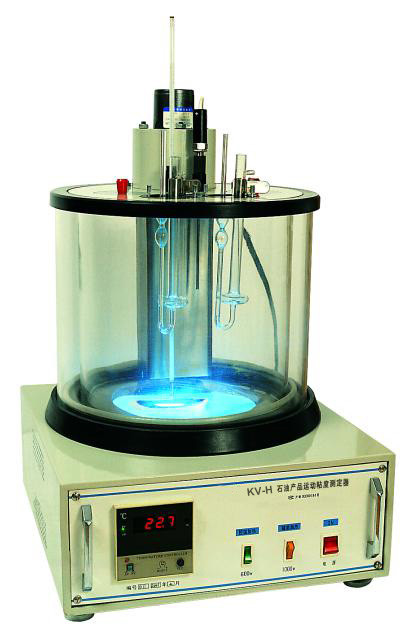

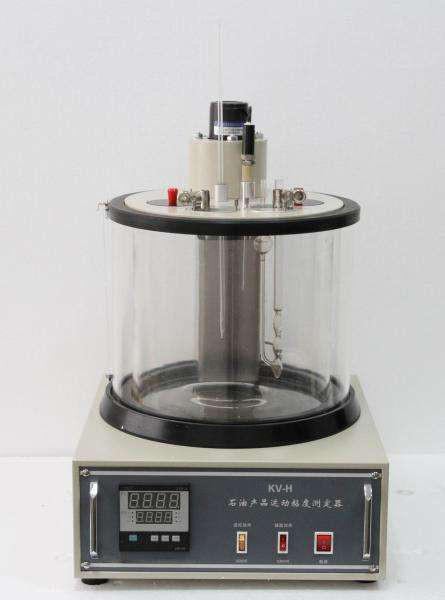

I. Introduction:
The asphalt kinematic viscosity tester is designed and made as per the national standard of People’s Republic of China GB/T1841 Standard Test Method for Viscosity of Polyolefin Resin Solution. It is used to determine the viscosity of decahydronaphthalene solution of polythene and polypropylene at the stipulated temperature.
The bitumen viscometer can also be used to determine the viscosity of asphalt at the stipulated temperature as per the industrial standard of People’s Republic of China T0619 Asphalt Kinematic Viscosity Test (Capillary Viscometer Method).
II. Features:
1. High precision digital temperature controller. Electric stirring motor.
2. High temperature resistant glass bath. Double layer structure.
3. This asphalt viscometer adotps desktop structure. All-in-one design.
4. The maximum heating temperature is 135℃(or 180℃).
III.Specifications:
| Power supply | AC 220 V±10%, 50 Hz |
| Heating power | 1700 W |
| Temperature range | Ambient to 135.0℃(or 180℃) |
| Temperature control accuracy | ±0.1℃ |
| Mercury-in-glass thermometer (Scale division 0.1℃) |
Range 100℃~150℃(for maximum 135.0℃). Range 100℃~150℃ and range 150℃~200℃(for maximum 180.0℃). |
| Bath capacity | about 23 L |
| Sample quantity | You can make determination using 3 capillary viscometers at a time. |
| Stirring motor | (1) Power: 6W (2) Speed: 1200 RPM |
| Ambient temperature: -10℃~+35℃ | -10℃~ +35℃ |
| Relative humidity: ＜85％ | ＜85% |
| Temperature sensor: RTD, Pt100 | RTD, Pt100 |
| Maximum power consumption | 1800 W |
| Capillary viscometer | One group of Cannon-Fenske Opaque capillary viscometers; 7 pieces in total. They are N0.200, 300, 350, 450, 500 and 600 (The inner diameters of R tube of them are 1.02, 1.26, 1.48, 1.88, 2.20, 3.10 and 4.00 mm respectively) |
| Overall dimension | 530*400*670mm(Bath is included) |
IV.Accessories
| No. | Item | Unit | Qty | Remarks |
| 1 |
Countercurrent capillary viscometer (a group) |
Piece | 7 | |
| 2 | Mercury thermometer (100~150℃, scale division is 0.1℃) | Piece | 1 | Standard configuration |
| Mercury thermometer (150 ~200℃, scale division is 0.1℃) | Piece | 1 | According to the users requirements to purchase | |
| 3 | Weight ball | Piece | 1 | |
| 4 | Sensor | Piece | 1 | |
| 5 | Sensor sheath | Piece | 1 | |
| 6 | Bakelite cover | Piece | 4 | |
| 7 | Stopping ring for thermometer (1#) | Piece | 2 | |
| 8 | Capillary viscometer holder | Piece | 4 | |
| 9 | Silica gel stopper (3#) | Piece | 2 | |
| 10 | 15A fuse (Ф6×30) | Piece | 4 | |
| 11 | Round glass | Block | 1 |
