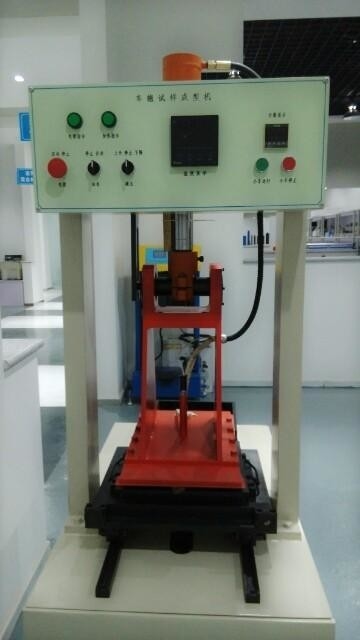

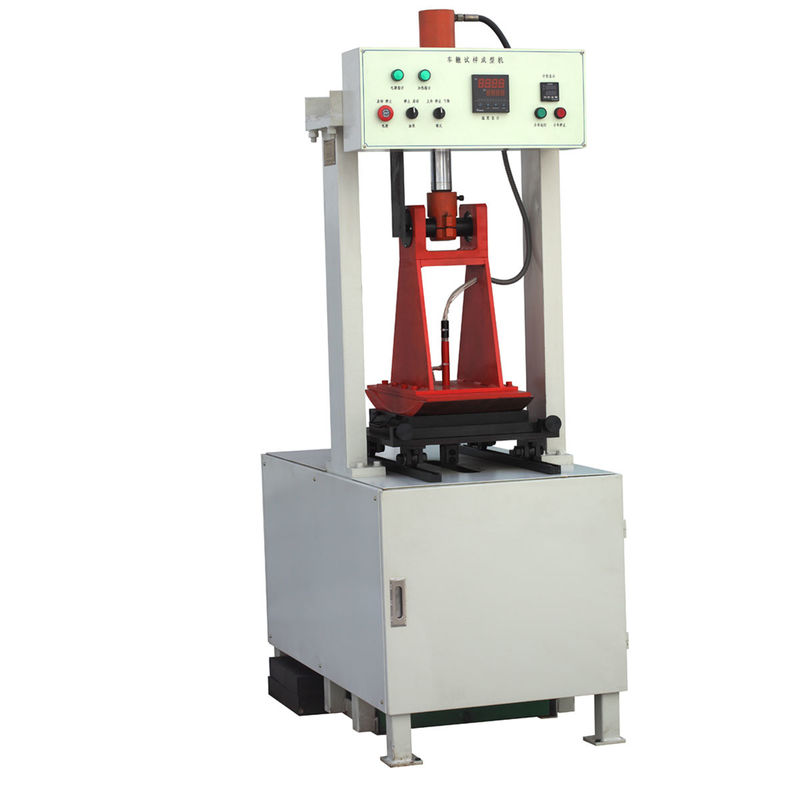

Safety Asphalt Lab Equipment Wheel Track Molding Machine Sample Making Equipment

Name: Safety Asphalt Lab Equipment Wheel Track Molding Machine Sample Making Equipment
Brand: YUYANG
SKU: WTM
Price: 10 USD
Availability: InStock
Rating: 4.7 (123 reviews)

Product Details:

Place of Origin:	CHINA
Brand Name:	YUYANG
Certification:	ISO
Model Number:	WTM

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD10
Packaging Details:	Plywood case
Delivery Time:	15 days
Supply Ability:	100 Sets per month

Contact Now

Detailed Product Description

Keyword:	Wheel-Track Molding Machine	Power Supply:	AC380V,50Hz,300W (three-phase Four-wire System ,with Zero Line )
Test Mold Spec.:	300mm300mm(30~100)mm	The Compaction Times:	(12+1) Time/min
Size:	1216mm640mm1750mm	Weight:	500KG
High Light:	bitumen testing instruments , asphalt content tester

Asphalt Test Apparatus Bitumen Wheel-Track Molding Machine

Sample Making Equipment

Summary

The wheel track molding machine is designed and made as per T0703-2011 “Bituminous Mixtures Sample Making Method (Wheel-grind Method)” in the Industry Standard of People’s Republic of China JTG E20-2011 Standard Test Methods for Bitumen and Bituminous Mixtures for Highway Engineering. It is suitable to mill bituminous mixtures to molding .It is also suitable to determine the sample making method (wheel-grind method) for other physical and mechanical characteristics of bituminous mixtures.

I. Main technical characteristic

1. The wheel track molding machine adopts floor type structure .And the test mode specification is 300mm*300mm, Variation of height is from 30 mm to 100 mm, and it can do adjustment at random.

2. Gripper mechanism of test mode installation is advanced, convenient to use, safety and reliable.

3. The test mode of wheel track sample making equipment can automatic centering, no adjustment after installation of the test mode.

4. Press the stop button, and it can let the dolly stop to any location.

5. The compaction times of the dolly can be set at random, and record times readily .When the compaction times arrive to set value, the compaction can be stopped.

II. Main technical parameters and specifications

1	The mill pinion specification	radius is 500mm ,width is 300mm
2	The mill pinion compaction load control range	(200~700)/cm (do adjustment at random)
3	The mill pinion compaction load controlling accuracy	+3N/cm
4	The mill pinion temperature controlling range	ambient temperature ~200℃
5	The mill pinion temperature controlling accuracy	+3℃
6	The compaction times	(12+1) time/min
7	Test mode specification	300mm300mm(30~100)mm
8	Dimension	1216mm640mm1750mm
9	Total weight	500kg
10	Power supply	AC380V,50Hz,300W (three-phase four-wire system ,with zero line )
