ASTM D1401 Herschel Emulsifier Water Separability Test Apparatus

ASTM D1401 Herschel Emulsifier Water Separability Test Apparatus

  • ASTM D1401 Herschel Emulsifier  Water Separability Test Apparatus
  • ASTM D1401 Herschel Emulsifier  Water Separability Test Apparatus
ASTM D1401 Herschel Emulsifier  Water Separability Test Apparatus
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO
Model Number: H1096
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD3000
Packaging Details: Hardboard
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Standards: GB/T7305,ASTM D1401, ISO6614 Temperature Controlling Range: Ambient~100℃
Temp.controller: Imported PID Timing Method: Digital Timer
Total Power: 1500W Working Positions: 9
Heating: Oil Bath Warranty: 1 Year
High Light:

oil analysis machine

,

oil analyzer equipment

Herschel Emulsifier Water Separability Test Apparatus

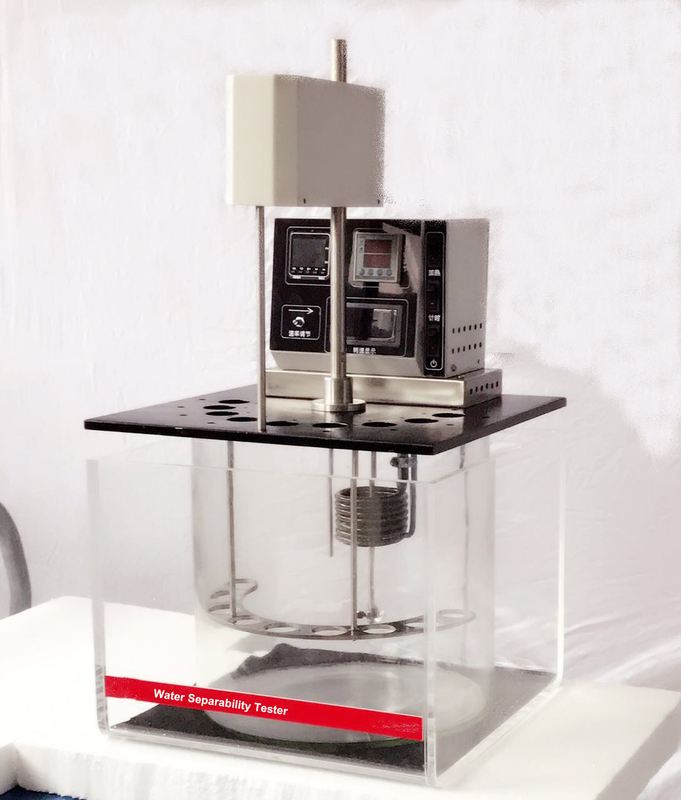

The water separability apparatus is suitable to measure the water separability of Petroleum Oils and Synthetic Fluids.Fill certain amount of sample and distilled water,stir 5 minutes under certain temperature,record needed time for separation of emulsified liquid.After half hour or one hour,if the emulsified liquid doesn’t separate completely,or the emulsified layers doesn’t reduce 3mL or more,please record the volume of oil layer,water layer and emulsified layer at this moment.



I.Main features

1.It can measure water separability of petroleum oil,synthetic liquid and Herschel emulsifier.

2.This equipment includes stainless steel frame,control box,tank,and the stirring vane can be moved in column up and down.It can display stirring speed digitally.

3.Borosilicate glass tank,depth 300mm,fixed on the stainless steel rack with ceramic coating.

4.Aluminized lid,multi rotation position,can put sample column.One locating device can put the column under the blade of sample stirrer,which can avoid breaking for wrong locating.

5.Micro-computer controller,PID function,digitally display temperature(continuously display during test),accuracy 0.1℃,Pt100 temperature sensor.

6.Stirrer is installed on the electrical heating bath

7.Heater is stainless steel

8.Sample stirrer is electronic

9.Digital speedometer can display stirring speed continuously.

10.Electronic timer can be stopped after stirring for 5 minutes.

11.Contact control box is very convenient.

12.Borosilicate glass column with 100ml graduation.



II.Technical specifications

1 Applicable standards

GB/T7305,ASTM D1401, ISO6614

2 Temperature controlling method imported PID digital display temperature controller
3 Temperature controlling accuracy

ambient~100℃±0.1℃

4 Heating method

oil bath

5 Timing method digital timer
6 Total power 1500W
7 Working unit 9 positions
8 Power supply

AC220V/50Hz



                                              ASTM D1401 Herschel Emulsifier  Water Separability Test Apparatus 0
