| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO |
| Model Number: | DT-R3 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD3000 per set |
| Packaging Details: | Hardboard |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Standards: | GB/T1884 ISO3675 ASTM D1298 | Refrigeration Method: | Air Compressor |
|---|---|---|---|
| Temp.controller: | Imported PID | Timing Method: | Digital Timer |
| Working Temperature: | 10～100℃ | Working Positions: | 2 |
| High Light: | oil analysis machine,oil analyzer equipment |
||

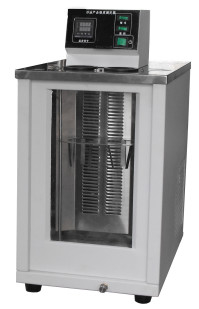

ASTM D1298 Density / Specific Gravity Testing Equipment With Hydrometer Method
Introduction
This density meter is suitable to determine density of easy flowing liquid,and if working with suitable constant bath,it can also be used to measure viscous liquid and opaque liquid under condition of higher temperature than room temperature.
I.Main features
1.Use glass heating bath,easy to observe
2.Integrated structure is easy to operate
3.Insulated glass tank,inner tank is Φ300×300mm
4.Two samples can be analyzed simultaneously,which is convenient to do parallel test
5.Big power solid relay controls output,no voltage leakage
6.There is stirrer on electrical heating bath
7.Stainless steel heater
8.Temperature controller displays heating status
9.It’s made by cold-rolled sheet,surface treated by Electrostatic spraying.It’s corrosion resisting and easy to clean.
10.Safety device can prevent over-heating or low liquid level
11.Contact control box is very convention
12.Micro-computer controller,PID function,digitally display temperature(continuously display during test),accuracy 0.1℃,Pt100 temperature sensor.
II.Technical specifications
| 1 | Applicable standards |
GB/T1884 ISO3675 ASTM D1298 |
| 2 | Working unit |
double units |
| 3 |
Refrigeration method |
Air compressor |
| 4 |
Temperature controlling method |
Imported digital PID |
| 5 |
Temperature controlling accuracy |
±0.1℃ |
| 6 |
Working temperature |
10～100℃ |
| 7 | Power supply |
AC220V/50Hz |
