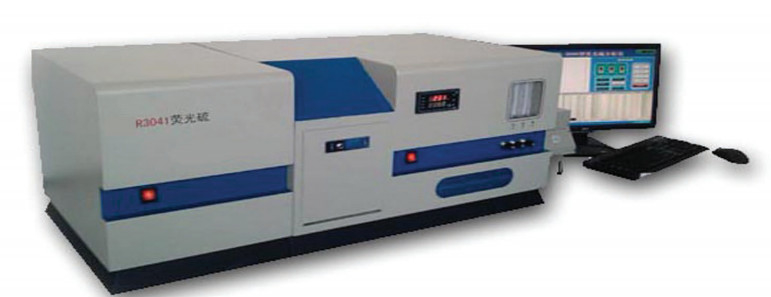

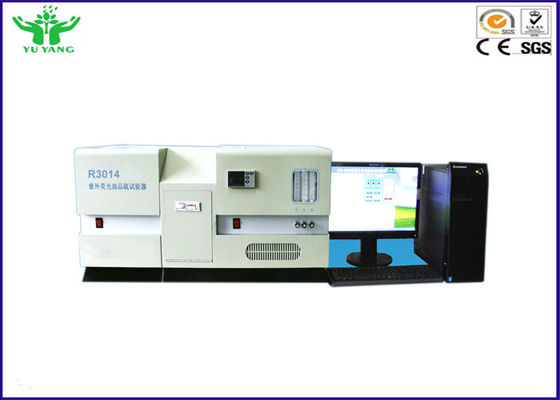

ASTM D5453 Oil Analysis Equipment For Ultraviolet Fluorescence Sulfur Content

ASTM D5453 Oil Analysis Equipment For Ultraviolet Fluorescence Sulfur Content

  • ASTM D5453 Oil Analysis Equipment For Ultraviolet Fluorescence Sulfur Content
  • ASTM D5453 Oil Analysis Equipment For Ultraviolet Fluorescence Sulfur Content
ASTM D5453 Oil Analysis Equipment For Ultraviolet Fluorescence Sulfur Content
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO
Model Number: R3014
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD20
Packaging Details: Plywood case
Delivery Time: 15 days
Supply Ability: 20 Sets per month
Contact Now
Detailed Product Description
Test Standard: ASTM D5453 Test Method: Ultraviolet Fluorescence
Temperature Range: Ambient To 1150℃±1℃ Measuring Range: 5ppm ~5000ppm
Sample Quantity: 5-20μL Controlling Mode: Computer
Warranty: 1 Year Power Supply: AC220V±22V,50Hz±0.5Hz,1500 W
High Light:

oil analysis machine

,

oil analyzer equipment

ASTM D5453 Ultraviolet Fluorescence Sulfur Content Analyzer





Introduction:

This instrument is used to determine the total sulfur content by ultraviolet fluorescence method.It Improves the ability of anti-jamming and avoids the complicated operation of titration pool and factors of instability which used Coulometry. So the sensitivity of the instrument is greatly improved. The key components of the system adopt imported components to protect the detector light leakage and steam leakage and makes the machine has a reliable guarantee. Standards:SH/T 0689-2000, ASTM D 5453 -2006


Specifications:

Standard configuration Printer+Computer+Main unit+Liquid injector
Other optional parts Solid sample injector, gas sample injector
Sample types Solid, gas and liquid
Sample injection quantity Solid:1-20mg; Liquid:5-20μL; Gas:1-5mL
Measuring range 5ppm ~5000ppm(High concentration should be diluted,
Low concentration gas sample is up to 0.1ppm)
Temperature range Ambient to 1150℃±1℃
Air supply requirements High purity argon:above 99.9% ; High purity oxygen:above 99.9%
Power supply AC220V±22V,50Hz±0.5Hz,1500 W
Dimension

Host:305(W)×460(D)×440(H)mm;

Temp controller:550(W)×460(D)×440(H)mm

Net weight Host:20kg, Temp controller:40kg
Test standard ASTM D5453
Test method Ultraviolet Fluorescence

ASTM D5453 Oil Analysis Equipment For Ultraviolet Fluorescence Sulfur Content 0
