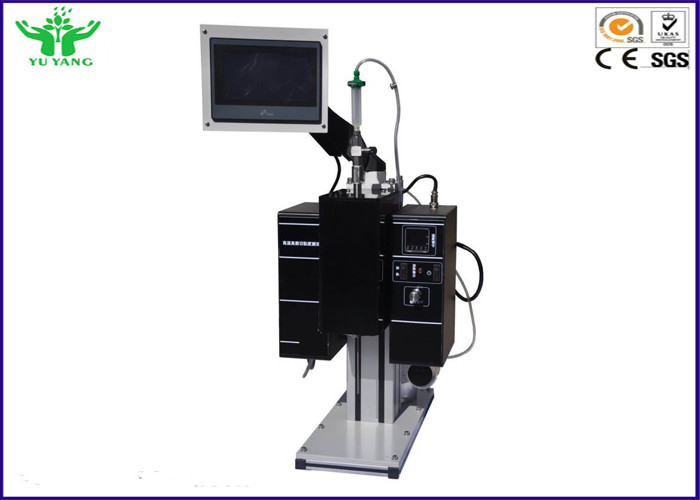

Apparent Viscosity Test Oil Analysis Equipment At High Temperature And High Shear Rate

Apparent Viscosity Test Oil Analysis Equipment At High Temperature And High Shear Rate

  • Apparent Viscosity Test Oil Analysis Equipment At High Temperature And High Shear Rate
  • Apparent Viscosity Test Oil Analysis Equipment At High Temperature And High Shear Rate
Apparent Viscosity Test Oil Analysis Equipment At High Temperature And High Shear Rate
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO
Model Number: H1706
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 30 days
Supply Ability: 100 Sets per month
Contact Now
Detailed Product Description
Test Standard: ASTM D5481,SH/T0703 Test Method: Multicell Capillary Viscometer
Flow Range: 0~200ML/H Temperature Controlling Range: Room Temperature~150℃
Display: LCD Working Unit: 1 Tube
Power Supply: AC220V/50HZ Warranty: 1 Year
High Light:

oil analysis machine

,

oil analyzer equipment



Apparent Viscosity Test at High Temperature and High Shear Rate



Introduction:

This tester is mainly used to measure apparent viscosity at high temperature and high shear rate(HTHS),the principle of which is under certain test condition at 150C,with pressure of N2(CO2),the sample flows out from capilliary viscometer,according to flowing time and pressure,we can calculate the apparent viscosity reached by apparent sheat rate of capillary viscometer.




Features:

1.This apparatus is first one in China,which is already used by many customers,

2.Spares can be changed with imported instruments.

3.It is supplied with special software for calculation High shear viscosity.

4.Solvent is not needed,and it can be washed with little new sample.

5.The apparent viscosity tester can work for 24 hours continuously.

6.Glass capillary meets standard requirements,diameter 0.15mm,length 16mm.

7.Different shear rate and test temperature can be set for users who make research.

8.It is made of aluminum competely.

9.With touch screen controlling,the operation can be done on the LCD screen directly.

10.Test pressure is automatically caculated by software,and report of test result is exported in Excel format





Specifications:

Test standard ASTM D5481,SH/T0703
Test method Multicell Capillary Viscometer
Temperature range ambient~150C±0.1C
Flow range 0~200ML/H
Display LCD
Test units 1 tube
Display content test pressure,test time,constant time
Result calculation Windows version advanced software
Power supply AC220V±10%/50HZ
Gas source N2 or other inactive gases
