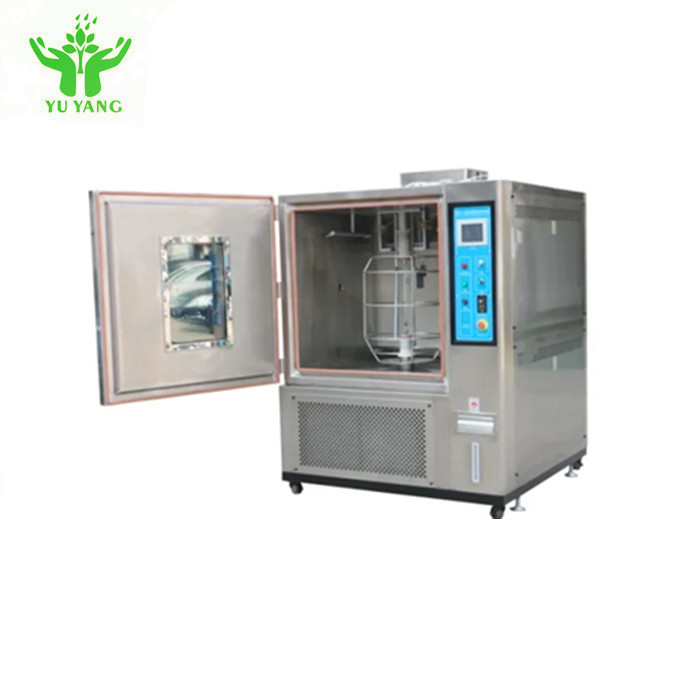

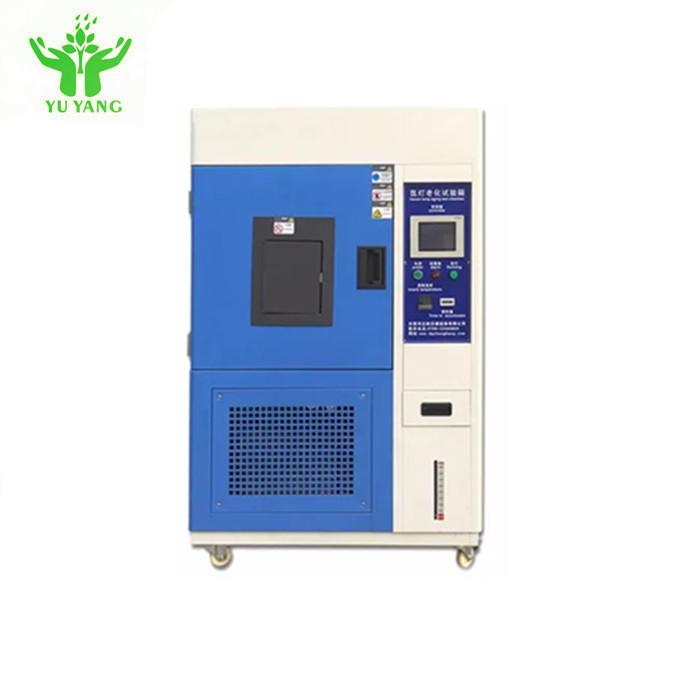

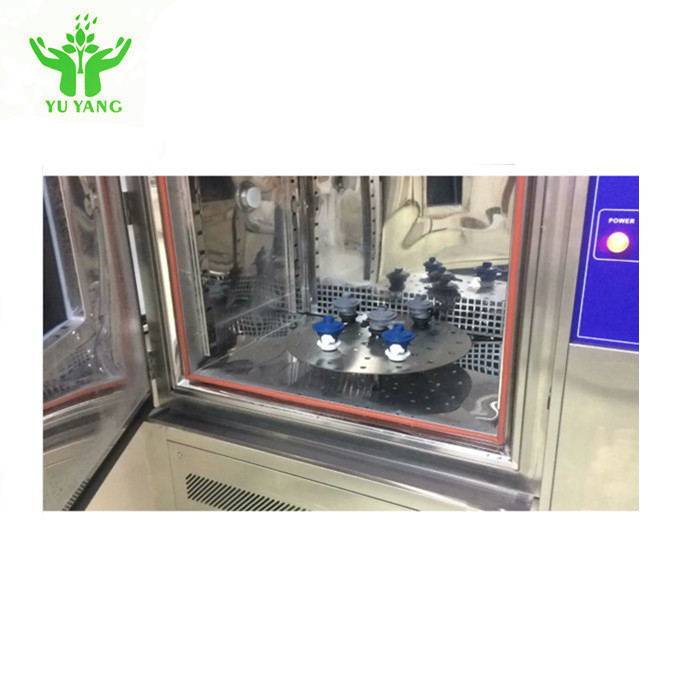

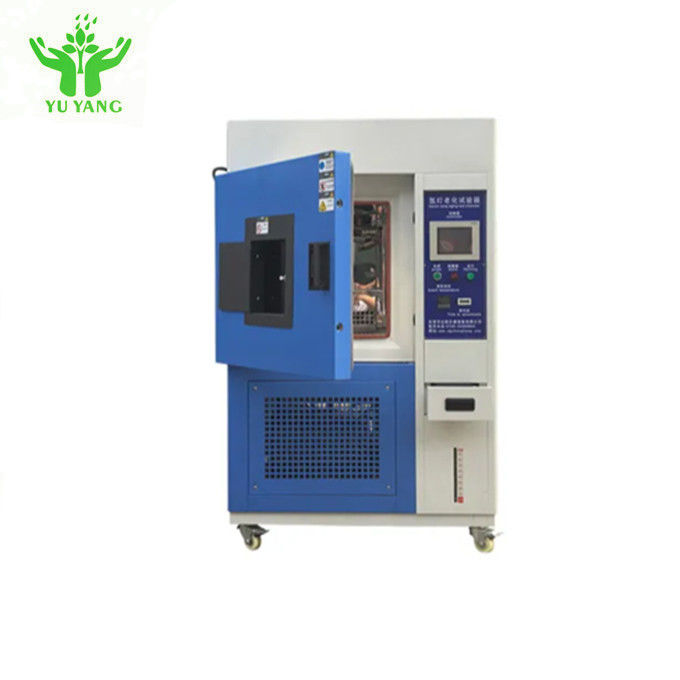

LCD Lab 3ph Environmental Test Chamber

LCD Lab 3ph Environmental Test Chamber

  • LCD Lab 3ph Environmental Test Chamber
  • LCD Lab 3ph Environmental Test Chamber
  • LCD Lab 3ph Environmental Test Chamber
  • LCD Lab 3ph Environmental Test Chamber
LCD Lab 3ph Environmental Test Chamber
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: ISO5470
Model Number: YYE005
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Box
Delivery Time: 1-3 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 SETS A MONTH
Contact Now
Detailed Product Description
Blackboard Temperature Range: Room Temperature 30 ℃ ~ + 80 ℃ Shell Material: Stainless Steel 304 / Coating
Light Source:: 1.0 KW Net Weight:: 110 Kg
Overall Dimensions: 720*525*535 Mm Power: AC 220V/50HZ
High Light:

thermal shock test chamber

,

salt spray test chamber

Constant Temperature and Humidity Chamber Lab Test Equipment/Humidity Oven



RT+10-200℃ 1.0 Constant Temperature and Humidity Chamber Lab Test Equipment/Humidity Oven



Prossional in Mosture Test Chamber:

1. Professional Manufacturer
2. Material:SUS#304
3. Customized Size
4, LCD touch screen

Application:

Climatic chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of
electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials,
medical and aerospace industries.

Feature:



1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.

2. Rectangular doubleglassed watching window for the observation of the test
production during the testing process. The window is
equipped with sweatproof
electrical heating device that can prevent water steam from condensing into
droplets, and with high brightness PL fluorescent
bulbs to provide light inside the box.
3. Double- layer insulated airtight doors, able to insulate the internal temperature
effectively.


4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.

5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment protecting coolant is used for the whole series (R232,R404)

6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.

7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.

8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.


Specifications



Humidity Range 30%R.H.(Humidity according to customer's requirement)
Analytic Accuracy/ Distribution uniformity of temperature and humidity 0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H.
Control Accuracy of Temperature and Humidity ±0.5ºC; ±2.5% R.H.
Temperature Rising/ falling Speed Rate Temperature rising approx. 0.1~3.0ºC/min / temperature falling approx. 0.1~1.5ºC/min; ( The Falling Speed Rate Min.1.5ºCper minute is a special optional condition)
Temperature /humidity -40 degree, 20%~98%R.H.
Material Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated, Insulation material is resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System Wind cooling or water cooling/single segment compressor(-40ºC, double segment compressor -70ºC)
Protection Devices Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
Compressor French Tecumseh Brand,Germany Bizer Brand
Power AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ
Approx. Weight (Kg) 250



 LCD Lab 3ph Environmental Test Chamber 0
