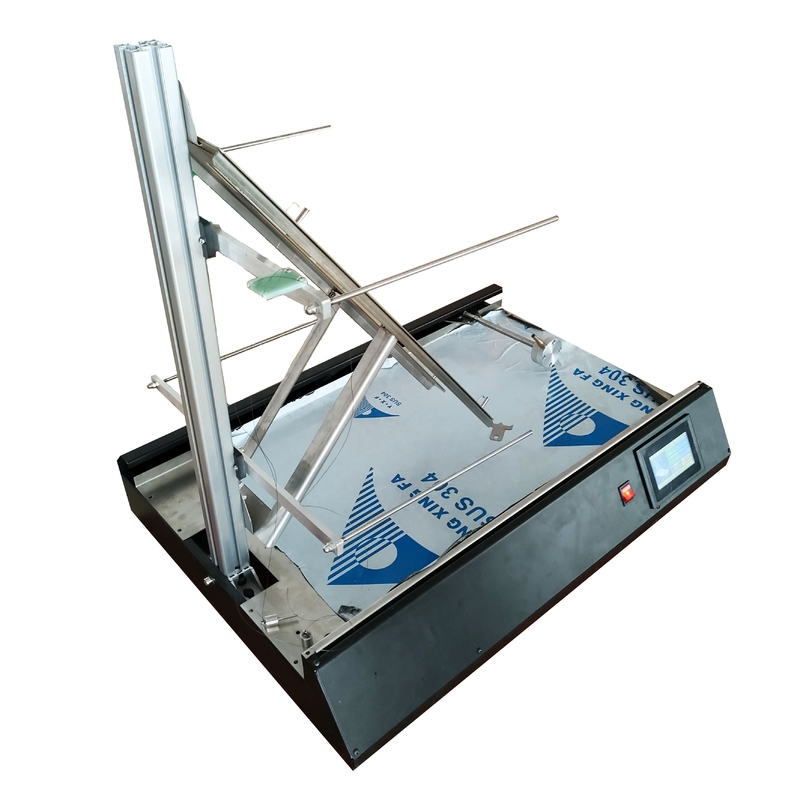

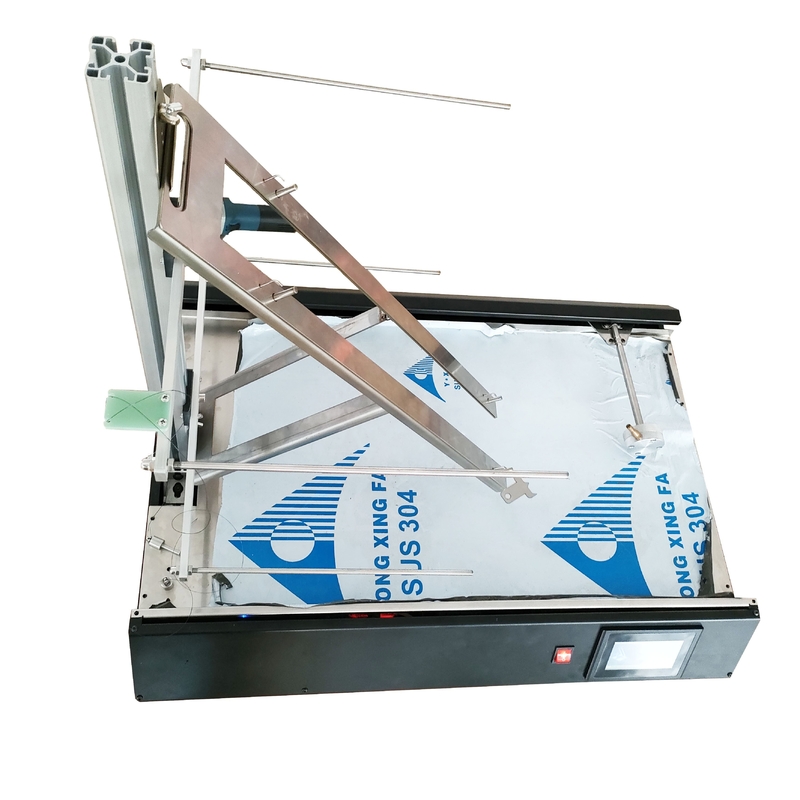

It is used for testing the flammability of toys, children clothes, evaluate the following toys flammability speed, time.
This tester was designed according to EN71-2008 standard, both sell to overseas and domestic market.
(1) Adopt the minimize gas cylinder system, the instrument can be moved, take up small space. The user also can connect big gas cylinder.

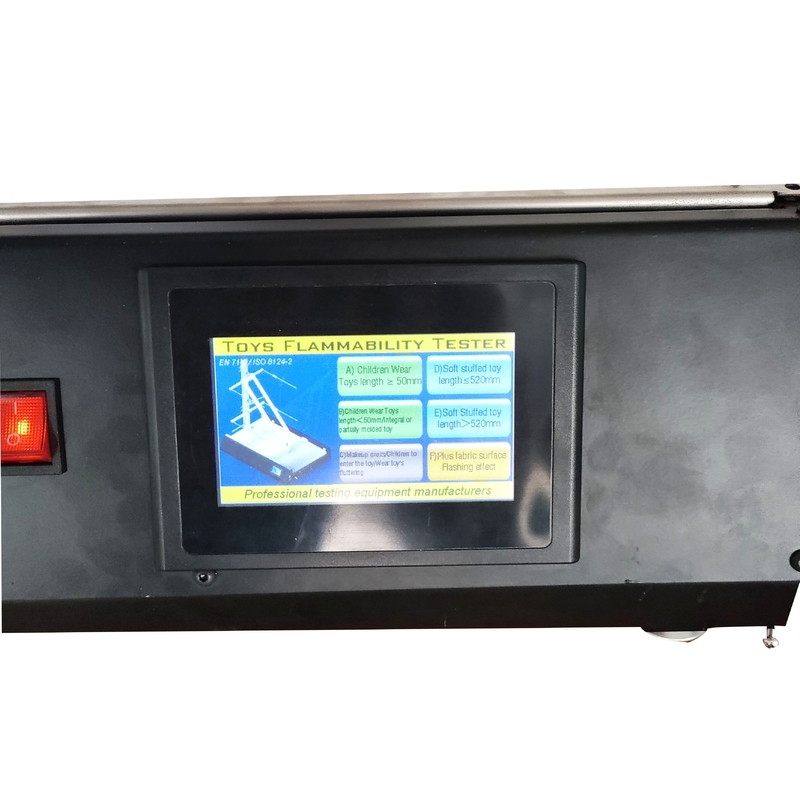

(2) The gas system is controlled by PLC, ignite and continue burning time are accuracy,
(3) All frames can be adjusted to meet different testing need.
This instrument applies to test the performance of flame retardardant of toys for children, completely applies to EN71-2-2008.
1. Ignition time set range:0~99.99S Precision:0.01S
2. continue burning time range :0-999.9S precision0.1S
3. Please put this flammability into a cabinet to make test.
4. Ignition mouth size: applies to IS0 6941 standard.
5. Dimension of specimen: 150mmX560mm
6. Power: AC200V 50Hz
8. Gas: butane gas.
9. Mercerized Marker Thread: white cotton thread, density＞50
1. Clothing worn by children, especially shawls, flowing garments and similar objects;
2. Toys accessible to children, such as play tents and playrooms;
3. Toys and stuffed toys that can be hugged by children;
4. Wearable toys in the form of masks and wigs
