| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | CE |
| Model Number: | YYT030 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | $1500 |
| Packaging Details: | Wooden Box |
| Delivery Time: | 7-30 Days |
| Payment Terms: | T/T |
| Product Name: | Kinetic Energy Tester | Application: | Toys Safety Test |
|---|---|---|---|
| Sample Test Range: | 0.001g~1000,000.000g | Response Time: | 10uS |
| Speedometer Time: | 1uS-15.000000S | Standard: | ISO 8124-1, EN-71-1, 16 CFR 1500, ASTM F963 4.8 |

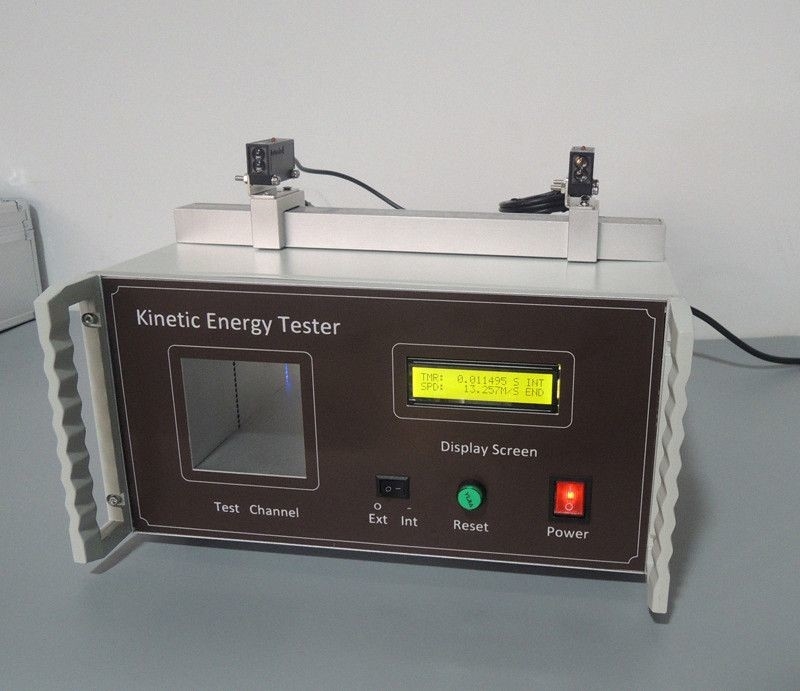

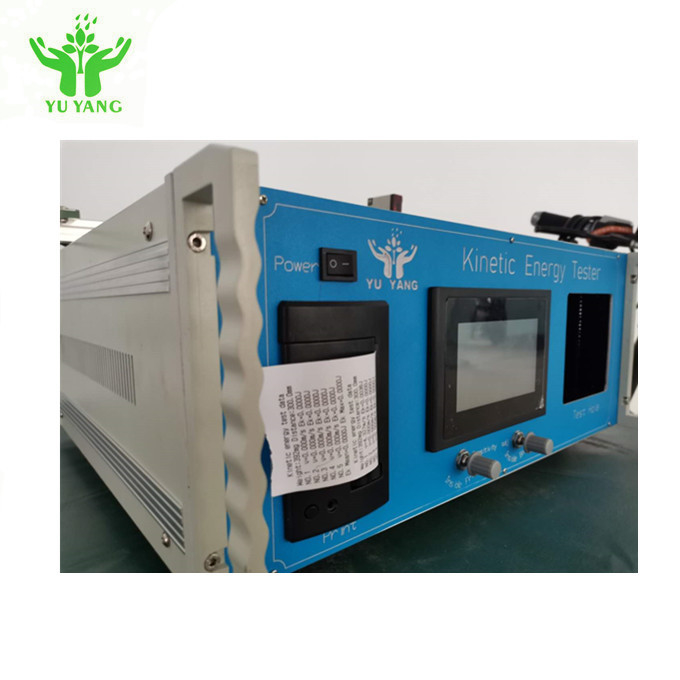

ISO 8124-1 Kinetic Energy Tester
Application:
To determine the size catapults kinetic energy of toys, the ejection of parts of the test apparatus through the tube or external testing of the components of the two sensors detect the ejection toy parts used away after a certain period of time, it has calculated the move Energy. The main instruments used for this test launch of baby toys or children's safety.
Specification:
| Model | YYT030 Kinetic Energy Tester | |
| Display | LCD display | |
| Number of tests | 5 times/group | |
| Power Supply | AC220V,50/60Hz 3A | |
| Dimension | Host 31*42*30cm | Extemal test group 9*43*13cm |
| Weight | 19kg | |
| Model | YYT030 |
| Sample test range | 0.001g~1000,000.000g |
| Response time | 10uS. |
| Speedometer time | 1uS-15.000000S |
| Projectile size |
maximum 50mm diameter Minimum 2mm diameter |
| Internal testing channel size | 76mmx76mm |
| Sensors distance | 6inch ( internal sensor ) |
| Adjustable | 40mm - 400mm ( external sensor) |
| Direct-reading | Induction time, Test speed, Test power , Sample weight |
| Printer | Thermal printer |
| Dimensions | 350 x 420 x 210mm (L x W x H) |
| Weight | 19kg |
| Standards | ISO 8124-1 EN-71-1 16 CFR 1500 ASTM F963 4.8 |
Standard:
ISO 8124-1, EN-71-1, 16 CFR 1500, ASTM F963 4.8
