| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | IEC6008-2-1, IEC68-2-3, IEC6008-2-30 |
| Model Number: | YY013 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1 sets per month |
| Light Source: | 1.8 KW Original Q - Lab Import Air Cooled Xenon Lamp Or 1.8 KW Domestic Xenon Lamp (normal Life 1500 Hours) | Filters: | Filters Or The Sun Glass Filter (optional) |
|---|---|---|---|
| Effective Exposure Area: | 1000 Cm2 (a 150 X 70 Mm Model 9) | Light Irradiance Range: | 30 W/m2 ~ 100 W/m2 (300 Nm To 400 Nm) Or 0.35 W/m2 ~ 0.7 W/m2 (@ 340 Nm) Or 0.5 W/m2 ~ 2.1 W/m2 (@ 420 Nm) |
| Blackboard Temperature Range: | Room Temperature 30 ℃ ~ + 80 ℃ | Shell Material: | Stainless Steel 304 / Coating |
| Overall Dimensions: | 925 * 487 * 487 Mm (length X Width X Height) | Net Weight: | 110 Kg (including Packaging Wooden Box 140 Kg) |
| Power Supply: | 220 V, 50/60 Hz;Maximum Current 12 A |

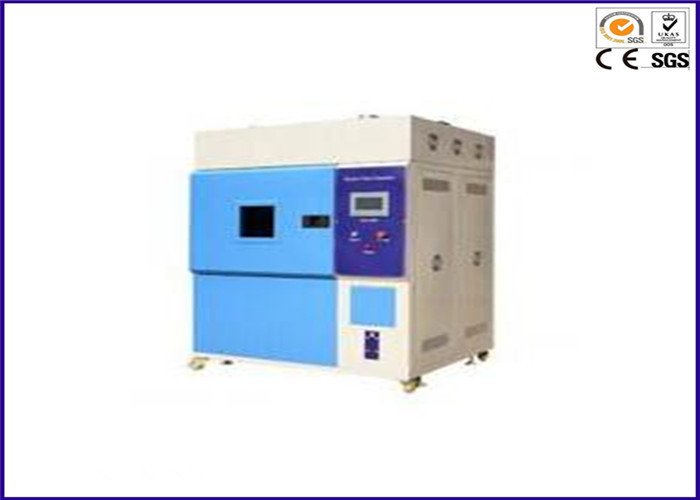

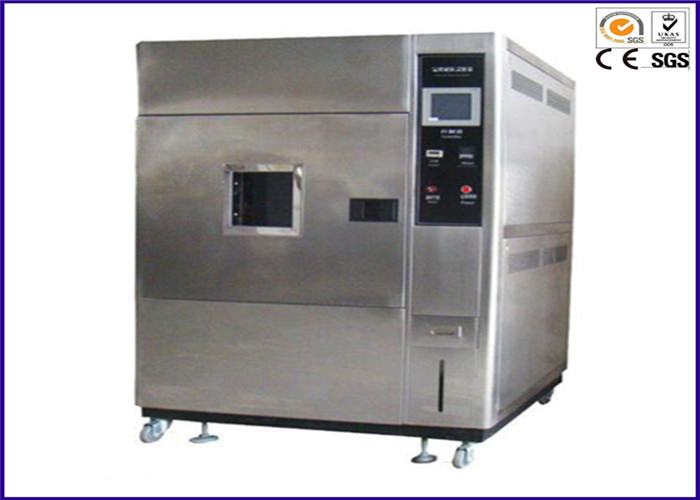

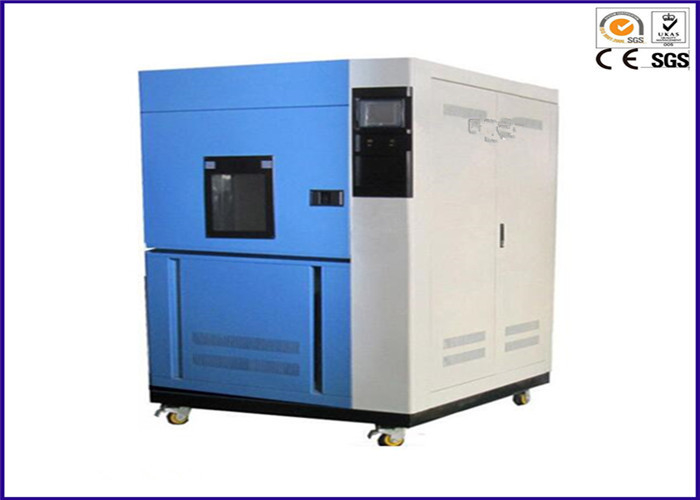

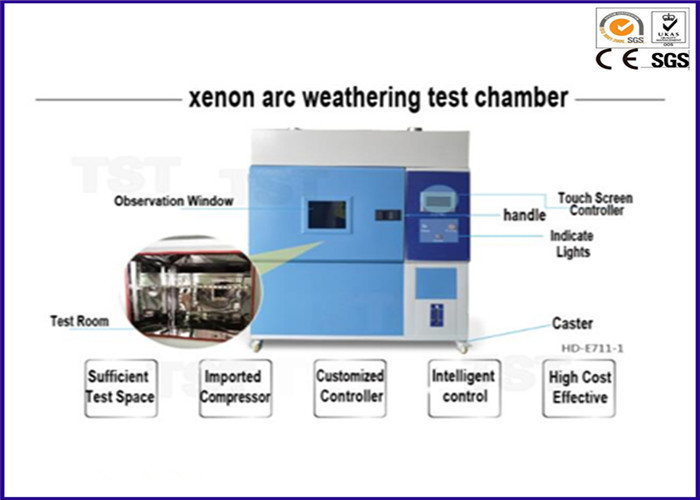

Xenon Lamp Solar Simulator Arc Weatherometer Weathering Aging Test Chamber
Description:
Xenon Lamp Aging Chamber is to test the product under gone illumination/rain/condensation/temperature/humidity/wind and any other climatic changes.This aging tester mainly for the test of non-ferrous/organic/rubber/plastic and building materials.
Xenon Lamp Aging Chamber can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.
Features:
1. Box shape using CNC machining and elegant, imported high grade stainless steel cabinet liner (SUS304) mirror panel, box outside the gallbladder with A3 steel spray
2. Equipment is divided into the main part, heating, humidification, cooling dehumidification section , display control section, air conditioning parts, part of security measures and other accessories section;
3. Temperature and humidity control devices with high precision the number of total imports of integrated micro computer controller;
4. Accuracy: 0.1 (display range); Resolution: ± 0.1 ; temperature sensor: PT100 platinum resistance temperature body;
5. Control: heat balance humidity thermostat method;
6. Temperature and humidity control with P. I. D + S. SR system coordination control with the channel;
7. It has automatic calculation of the function, temperature and humidity conditions can be amended immediately so that more precise control of temperature and humidity stable.
8. Refrigerator with the French original, Tecumseh closed compressor.
Principle and function:
1. UV ultraviolet aging test machine using fluorescent UV lamp as the light source, by simulating natural sunlight's ultraviolet radiation and condensation, the material accelerated weathering test, in order to obtain material weathering results.
2. UV resistant climate chamber can simulate natural climate ultraviolet rays, rain, high temperature, high humidity, condensation, darkness and other environmental conditions, by reproducing these conditions, combined into a loop, and it automatically performs complete cycle number of times, this is the UV aging chamber works
Structural characteristics
1. A variety of alternative filtration system.
2. Water spray function.
3. Relative humidity control.
4. Chamber air temperature control system.
5. Irregularly shaped sample holder.
6. Cheap xenon arc lamps.
7. Xenon lamp aging test instrument easy to install and easy to use and basically no routine maintenance.
8. Xenon arc lamp life depends on the level of irradiance used, general lamp life of 1600 hours. Lamp replacement convenient, long-lasting xenon lamp aging tester filter to maintain the required spectrum to provide protection.
Specifications:
| light source | 1.8 KW original Q - Lab import air cooled xenon lamp or 1.8 KW domestic xenon lamp (normal life 1500 hours) |
| filters | filters or the sun glass filter (optional) |
| effective exposure area | 1000 cm2 (a 150 x 70 mm model 9) of the |
| light irradiance range | 30 w/m2 ~ 100 w/m2 (300 nm to 400 nm) Or 0.35 W/m2 ~ 0.7 W/m2 (@ 340 nm) Or 0.5 W/m2 ~ 2.1 W/m2 (@ 420 nm) |
| blackboard temperature range | room temperature 30 ℃ ~ + 80 ℃ |
| shell material | stainless steel 304 / coating |
| overall dimensions | 925 * 487 * 487 mm (length x width x height) |
| net weight | 110 kg (including packaging wooden box 140 kg) |
| power supply | 220 v, 50/60 hz;Maximum current 12 a |
