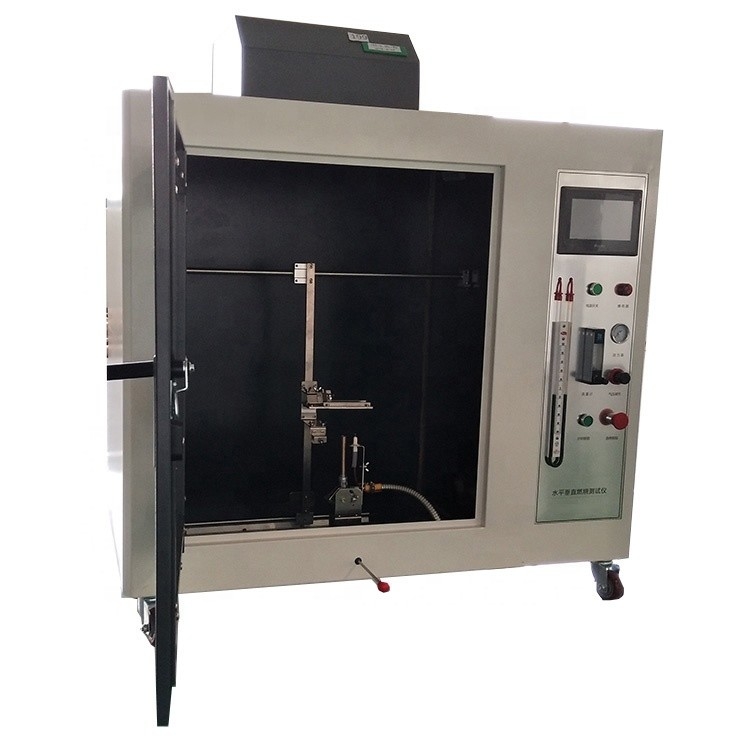

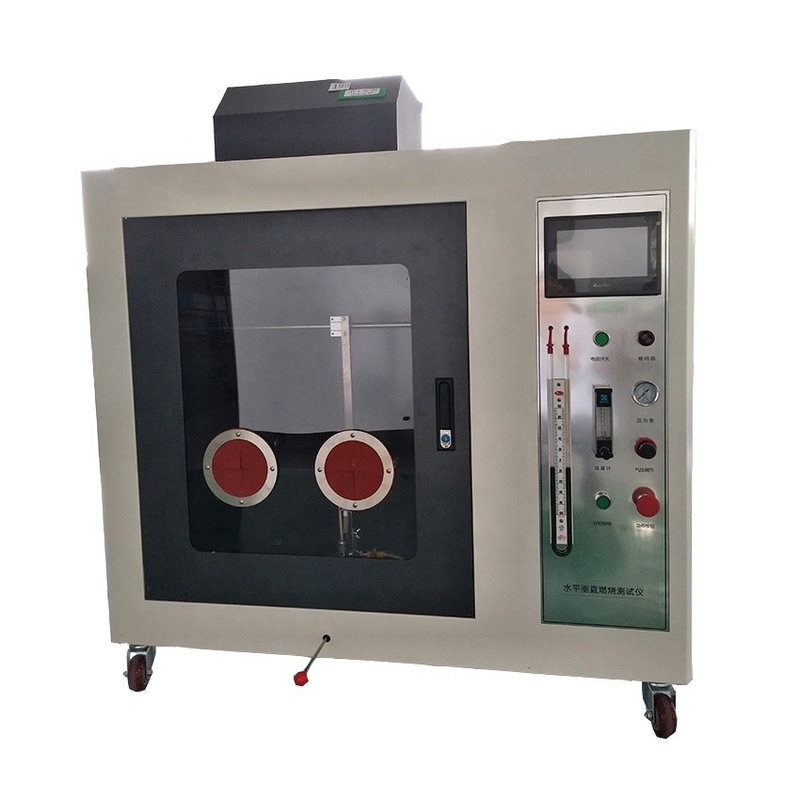

ISO 9772 Foam Plastic Horizontal Burning Test Apparatus UL94 Flammability Test Chamber

Introduction:

Foam plastic horizontal burning testing equipment is in accordance with the national standard GB / T8332-2008 : Determining the combustion properties of the foam plastic by horizontal combustion test method.
To determine the small foam sample whose density should be less than 250kg / m³ combustion performance levels in a small flame density. The PLC and touch screen can realize the intelligent measuring and it can also provide a convenience and simple procedure for the experimenter.
This testing equipment applies to assess of the combustion performance, including burning rate, fire out time, firing range and quality loss.

Application:

• Foam products, plastics, polymer materials, etc.


Standard:

• EN ISO 9772——Cellular plastics — Determination of horizontal burning characteristics of small specimens subjected to a small flame
•        GB/T8332-2008​

​

Features:

1. This testing equipment consists the testing section and control components, it is easy for field installation and commissioning.
2. A large observation window is easy to observe the sample combustion state.
3. Advanced industrial appearance and control designing, easy to touch the specimen and burner.
4. Controlling the movement of the burner after closing the door.
5. Bunsen burner is in according with ISO 10093: 1998.
Shaft length: 100 ± 10mm,
Inner diameter: 9.5 ± 0.3mm.
The height of of flame :38 ± 2mm
6. The programmable controller PLC + touch screen for control / testing / computing / data display.
(1) High-voltage automatic ignition
(2) The digital pressure gauge and the touch screen displays the gas pressure and flow.
(3) Burning time is automatically stored and reflected in the test report.
(4) The test time and flame time can be set from the touch screen.
(5) The liquid crystal screen accurately displays the temperature
7. Equipped with smoke hole and exhaust fan.
8. Import pressure gauge and pressure regulator.
9. Imported gas mass flow meter and needle valve can accurately control the gas flow.
10. The automatic time record can reserve the testing time.
11. The volume of tank is more than 0.5m³.

Specification:
