| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO: 3768, 3769, 3770; ASTM: 8117, B268 |
| Model Number: | YY1015 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2 sets per month |
| Product Name: | Environmental Test Chamber | Usage: | Salt Spray Test Chamber |
|---|---|---|---|
| Material: | PVC Rigid Plastic Board | Salt Water Temperature: | Neutral Saline Test Method (NSS ACSS) 35C±1C, Acid Saline Test Method (CASS) 50C±1C |
| Spray Volume: | 1.0~2.0ml/80cm2·hr (At Least 16 Hours Are Collected And The Average Value Is Taken) | Power Requirements: | AC380V, 50/60HZ |
| Laboratory Relative Humidity: | 85% RH Or More | Spray Quantity: | AC220V1φ 15A, Salt Spray Cabinet |
| High Light: | Easy Operate Salt Spray Cabinet,ASTM Salt Spray Test Chamber,B117 Salt Spray Test Chamber |
||
Easy Operate Environmental Test Salt Spray Cabinet Salt Spray Test Chamber for ASTM B117
Product introduction:
Many customers request the salt spray cabinet should meet the astm b117 testing standard, astm b117 salt spray corrosion tests and standards, astm b117 salt spray, iso 9227 salt spray test, iso 7253, astm g85 salt spray test standard. Yes, They are the populare testing standard and used for salt spray cabinet testing period.
Purpose and Characteristics : Salt spray test standard for zinc plating, salt water resistant spray paint, salt test for painting, salt spray testing procedure for powder coating, salt spray test for stainless steel, salt spray testing for powder coating, salt spray test for zinc plating, salt spray check for paint.
According to ASTM International, ASTM B117, in and of itself, isn’t a check specification. Rather, it outlines the quality observe for in operation salt spray (fog) equipment. B117 may be a document establishing the parameters and needs for in operation salt spray test chamber. ASTM B117 doesn’t specify something regarding the kind of check specimen, dimensions, form or exposure periods to be used for a selected product, nor will it have any needs or steering for the interpretation of the results.
Design standard :
CNS : 3627 , 3385 , 4159 , 7669 , 8886 ;
JIS : D0201 , H8502 , H8610 , K5400 , Z2371 ;
ISO : 3768 , 3769 , 3770 ;
ASTM : 8117 , B268 .
Purpose :
Salt spray test machine is applicable for the salt spray corrosive test for the protection layer of components , parts , electronic and electrical parts and metal materials and industrial products
Chamber Structure:

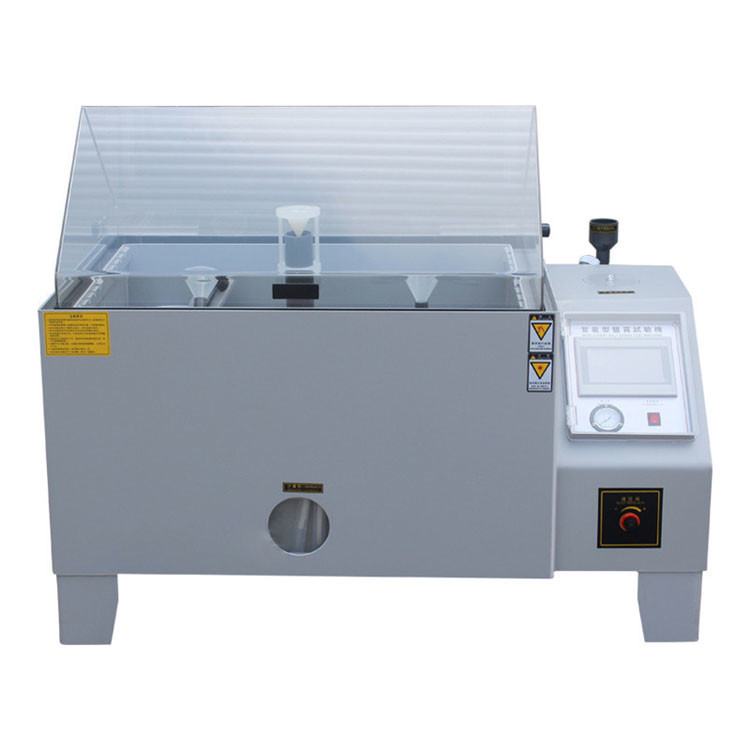

1. Salt spray test machine cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample .
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow .
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement .
Main technical parameters :
| Model | YY1015-60 | YY1015-90 | YY1015-120 |
| Inner box size : ( L×W×H ) cm |
60×40×45 | 90×60×50 | 120×100×50 |
| Outside box size : ( L×W×H ) cm |
107×60×118 | 141×88×128 | 190×130×140 |
| Equipment material : | Both internal and external material is using imported P . V . C rigid plastic board; the case cover is using transparent rigid plastic board P . V . C . | ||
| Temperature range : | 35°C~55°C | ||
| Temperature fluctuations : | ≤±0 . 5°C | ||
| Temperature uniformity : | ≤±2°C | ||
| Temperature precision : | ±1°C | ||
| Test chamber temperature | NSS ACSS 35±1°C CASS : 50±1°C | ||
| Saturated air barrel temperature : | NSS ACSS 47±1°C CASS 63±1°C | ||
| Brine temperature : | 35°C±1°C | ||
| Spray quantity : | 1 . 0~2 . 0 ml / 80cm2 / hr | ||
| PH : | NSS ACSS6 . 5~7 . 2 CASS 3 . 0~3 . 2 | ||
| Lab volume : | 108L | 270L | 600L |
| Brine tank capacity : | 15L | 25L | 40L |
| Power : | 1AC220V , 10A | 1AC220V , 15A | AC 1 , 220V , 30A |
| Multiple safety protection devices : | Water shortage/ over temperature / phase protection | ||
| Standard accessories : | Test salt , measure bucket , tool etc 1 set | ||
Specifications:
Salt Spray Corrosion Test Machine
1. Durable hard PVC construction
2. Anti-corrosion ,
3. Easy clean & operate
4. 1 years warranty
Features :
1. Low loading threshold for ergonomic loading and unloading..

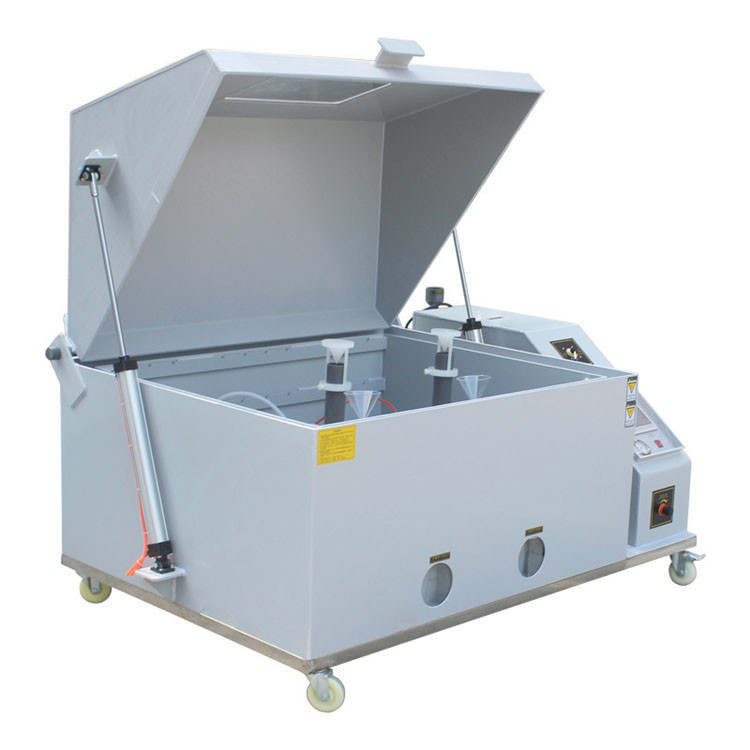

2. "Easy Open' pneumatically operated canopy, with safety interlock.
3. Dry seal gasket to prevent wetting the operator's clothes.
4. Timed canopy lock and automatic purge of the cabinet interior with fresh air after testing and before the chamber is opened.
5. Easily accessible salt spray atomizer(s) in transparent hard-wearing acrylic, for ease of maintenance.
6. External portable salt solution tank for ease of cleaning. 115L for 300L, 73L for 450L, Chambers and 90L for 1000L Chambers and above.

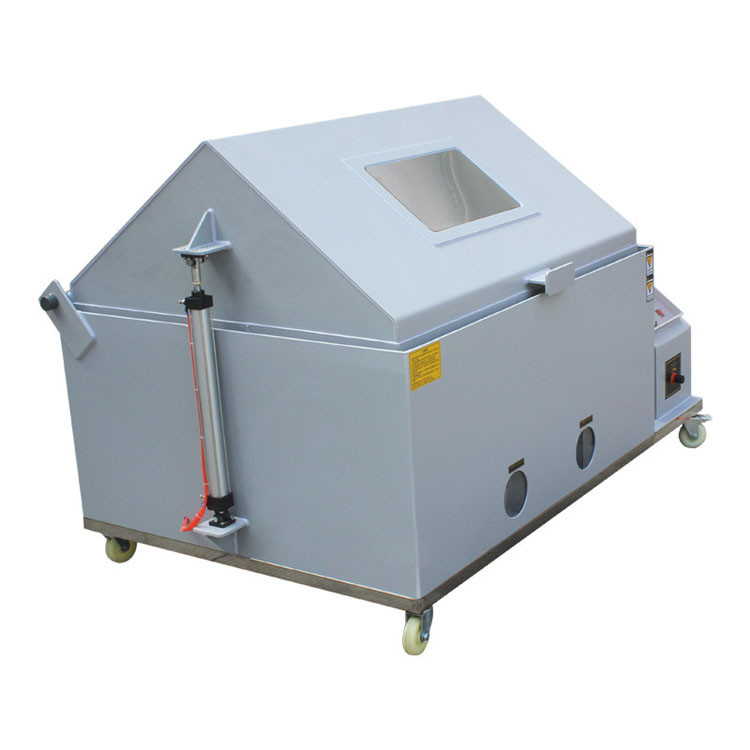

7. Central viewing window for unimpeded visual access to chamber interior and test material.
8. Base castors and integrated fork lift lift truck runners, for ease of transportation.
9. A free choice of canopy colour.
10. Calibration certificate.
11. Consumables spares kit.
12. Fallout Measuring Kit.
