| Place of Origin: | China |
| Brand Name: | YUYANG |
| Model Number: | YY312 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | $3000 |
| Packaging Details: | Wooden Box |
| Delivery Time: | 7-30 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Product Name: | Flammability Testing Equipment | Ambient Temperature: | 10 ~ 35℃ |
|---|---|---|---|
| Relative Humidity: | ≤75% | Flame Height: | 20mm ± 2mm To 180mm±10mm (adjustable) |
| Angle: | 90℃,45℃ | Usage: | Plastic Horizontal Burning Rate Test Apparatus |
| Test Chamber: | >0.5m3 | Material: | Stainless Steel |
| Power Supply: | AC220V, 50Hz, ≤50W | ||
| High Light: | Plastic Horizontal Flammability Tester,ASTM D 635 Horizontal Flammability Tester |
||

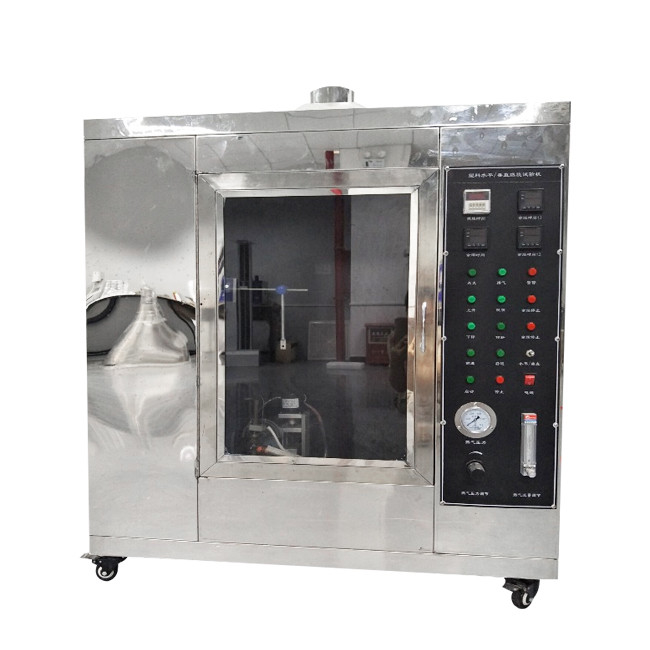

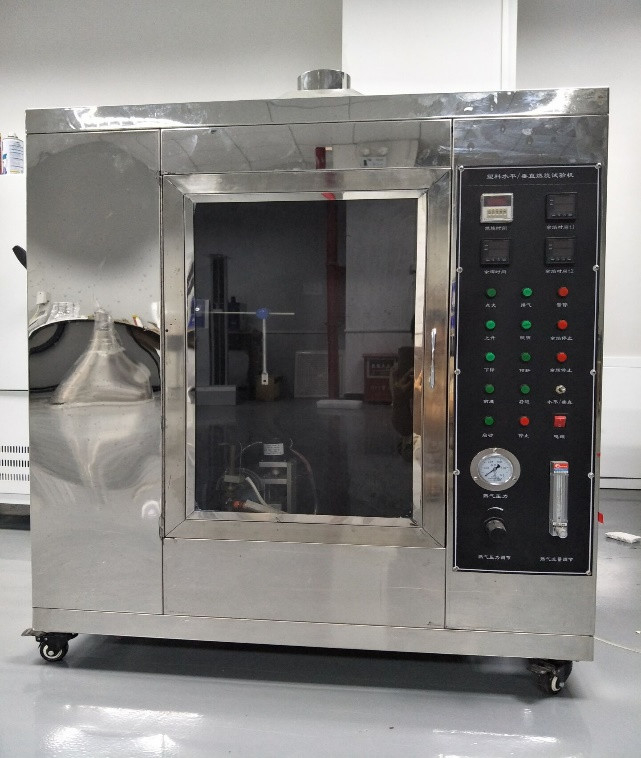

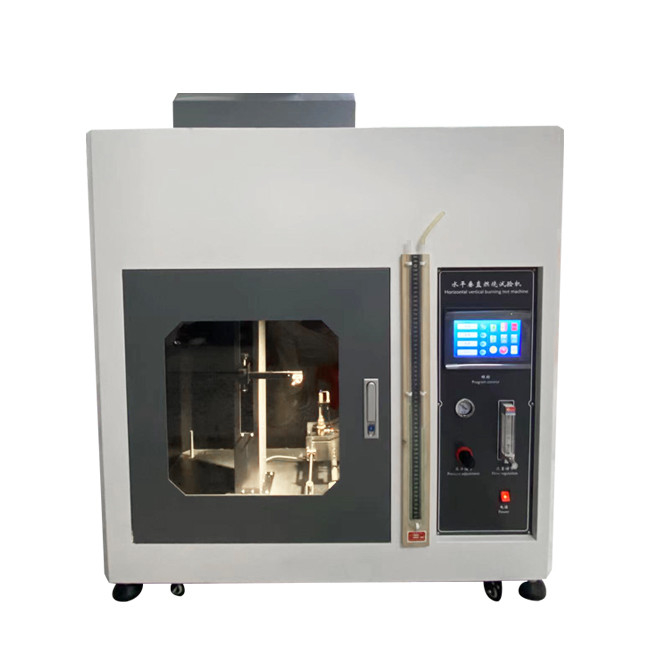

UL 94 ASTM D 635 Plastic Horizontal Flammability Tester Burning Rate Testing Equipment
Introduction:
The horizontal and vertical flame test apparatus is designed according to UL94, IEC60695-11-4 and IEC60695-11-3. The fire hazard is evaluated by burning rate, after glow time, after flame time and damage length of the specimen. The horizontal and vertical flame test apparatus is applied to the V-0, V-1, V-2, HB and 5V materials, it is widely used in the R&D department, QC department and production department of lighting equipment, low-voltage apparatus, household appliance, motor and etc.. And also can be used in the industries of insulation material, plastic and other solid combustible material.
Standards:
ASTM D 635,UL94 V-0 V-1 V-2,GB/T 2408
Parameter:
Burner | Φ9.5mm ± 0.3mm bunsen burner |
Dip angle | 00, 200, 450 (manual adjustment) |
Flame height | 20mm ± 2mm to 180mm±10mm (adjustable) |
Flame time | 0-999.9s±0.1s (adjustable) |
After flame time | 0-999.9s±0.1s (auto record, manual pause) |
After glow time | 0-999.9s±0.1s (auto record, manual pause) |
Fuel gas | 98% methane |
Flow and pressure record | Flowmeter and manometer |
Test temperature range | 0-10000C |
Flame temperature required | Heat up from 1000C±50C to 7000C±30C within the time of 44s±2s and 54s±2s |
Thermocouple | Diameter of 0.5mm K type thermocouple (2 pieces) |
Test background | Black |
Volume of chamber | 0.5 CBM |
Dimension of apparatus | 1100mm(W)*700mm(D)*1300mm(H) |
Power supply | AC220V, 50Hz, ≤50W |
Application / Models
Plastic horizontal combustion test: UL,HB,IEC60695-11-10,IEC60707,ISO1210,GB/T2408;
50 W vertical combustion test: UL 94,V0,V1,V2,IEC 60695-11-4,IEC60695-11-10,ISO1210,GB/T2408,GB/T5169.16,GB/T5169.22;
500 W vertical combustion test: UL94,5VA,5VB,IEC 60695-11-3,IEC 60695-11-20,GB/T5169.15,GB/T5169.17;
Thin soft plastic vertical combustion test: VTM-0,VTM-1,VTM-2,ISO9773;
Foamed plastic vertical combustion test: HF-1,HF-2,HBF,ISO9772,GB/T8332.
FAQ
1. Q: Are your company a trading or factory?
A: Factory +Trade (integration) , since 2004, we focuses on developing and manutfacturing Lab testing equipment.(testing equipment, measuring instrument, laboratory instrument, lab testing equipment, mask testing equipment) and exporting experience , OEM also acceptance for us.
2. Q: After an order is placed,when to deliver?
A: Generally about 7-30 work days.
3. Q: Do you have any certificate about your factory?
A: We are already got SGS , ISO 9001 and some testing machine's patent cerificate.
4. Q: What about the Warranty with after-sales service?
A: We have one year warranty time , when the testing instrument have problems and the customer notice us.
We received the customer problems feedback ,we will reply and help customer to solve the problem at first time.
5. Q: How about your testing instrument data accurate?
A: About our testing instrument's data accuracy, customers can be assured, because many government's lab by our factory help to plan and established.
