Place of Origin:
China
Brand Name:
YUYANG
Certification:
CE
Model Number:
YYE019

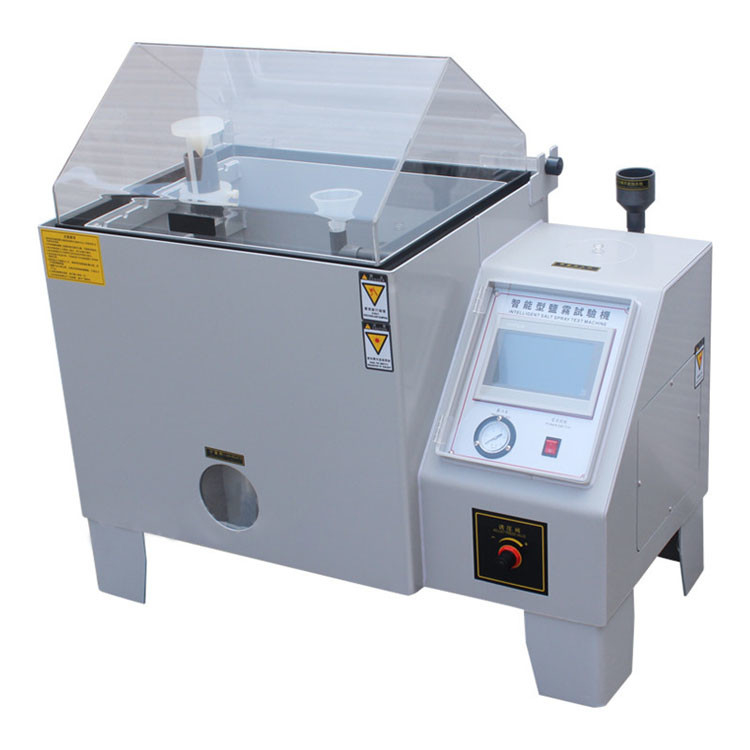

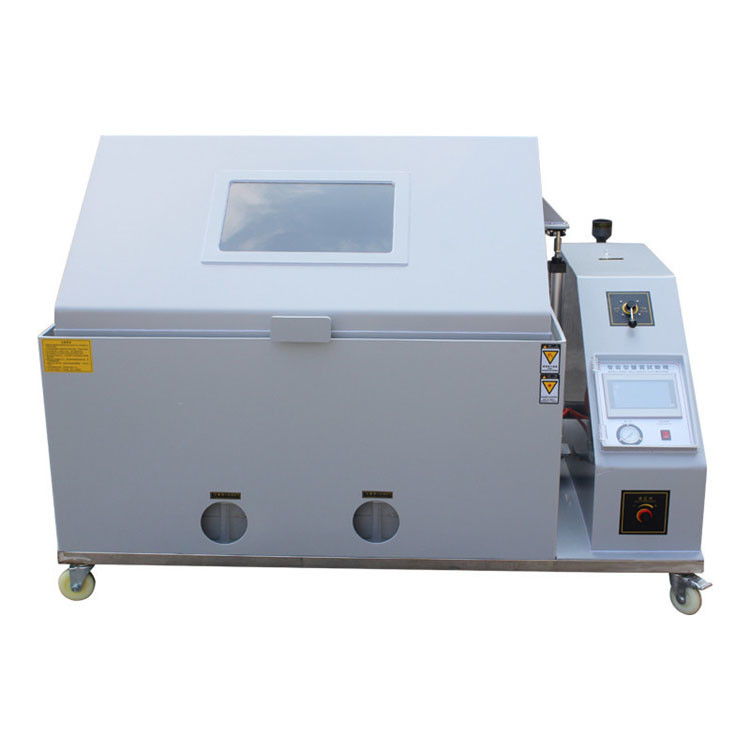

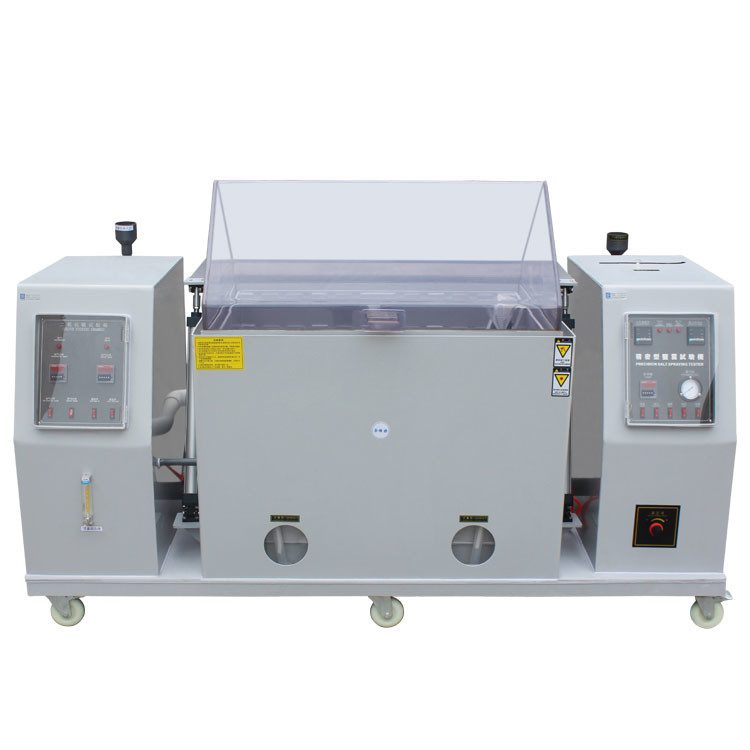

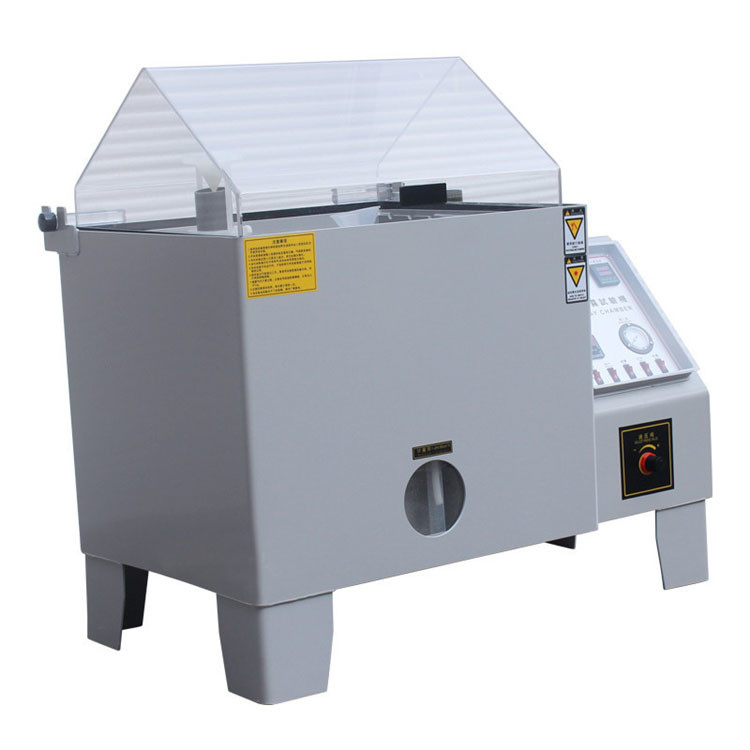

Composite salt spray test chamber Mini Salt Spray Testing Machine Desktop Salt Spray Chamber Small Size
Description:
Salt spray test chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.
Uses:
This machine has a standardized test method to check the corrosion resistance of coating samples. A salt spray test is an accelerated corrosion test that produces a corrosive effect on a coated sample in order to predict its suitability as a protective coating. Evaluate the appearance of corrosion products (oxides) after a period of time. The duration of the test depends on the corrosion resistance of the coating; The better the corrosion resistance of the coating, the longer it will not show signs of corrosion in the test. Different coatings have different properties in the salt spray test, so the test time of different types of coatings is also different.
Salt Spray Test Chamber Material:
1) The laboratory is made of PVC sheet with a thickness of 5 mm and a temperature of 80 degrees Celsius;
2) The laboratory is closed with high impact acrylic sheet, 6 mm thick;
3) The supplementary reagent bottle is attached to the water level perspective with a hidden window, easy to clean, not easy to break;
4) The saturated air cylinder adopts sus# 304 stainless steel cylinder and the high pressure cylinder has the best insulation effect;
5) The experiment basket adopts a plane indexing frame with adjustable Angle, and places a large number of samples in the same place with the mist facing down on all sides.
Standards:
GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201, H8502, H8610 , K5400 Z2371
Specifications:
Model | YY1020-108L |
Test room size (WxLxH)(mm) | 600*450*400 |
Machine size (WxLxH)(mm) | 1130*630*1070 |
Lab temperature | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C |
Saturator temperature | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C |
Humidity | 85%~98%RH |
Temperature range | ± 0.5ºC |
Salt spray subside | 1.0~2.0ml/80cm2/h |
Power supply | AC220V 50HZ |
