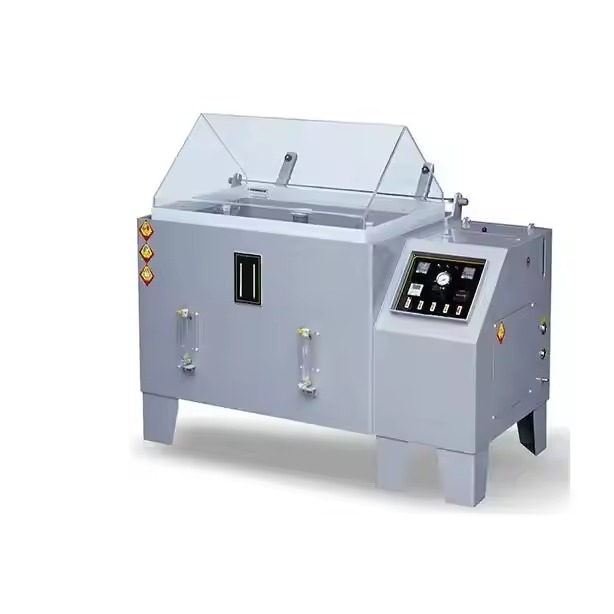

Auto-Timer Lab Precision Measuring Chamber For Salt Fog Corrosion Resistance Test Brine Temperature 35C±1C 50C±1C

Industries Salt Spray Test Machine Hard Salt Spray High-Classe Test Equipment

Product introduction:

1. Double over-temperature protection, the healing power can be automatically cut off when there is a temperature control table failure or a heating system failure. Avoid excessive temperature damage to the Salt Spray corrosion test chamber.
2. Double low water level protection to prevent dry burning of test salt spray machine and pressure tube heating tube.

Purpose and Characteristics

Salt Spray Test Chamber is adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, metal products, it carries out the anti-corrosive treatment to test the corrosion resistance of the products.

Corresponding standard​ of the Salt Water Spray Test Chamber for CASS, NSS Test:

1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM.B117-97 salt
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB.10587-89 salt spray test
9. CNS.4158 salt spray test


Purpose :

Salt spray test machine is applicable for the salt spray corrosive test for the protection layer of components , parts , electronic and electrical parts and metal materials and industrial products .

Chamber Structure:

1. Salt spray test machine cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample .
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow .
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution.

Main technical parameters :

Specifications:

Salt Spray Test Chamber

1. Durable hard PVC construction
2. Anti-corrosion ,
3. Easy clean & operate
4. 1 year warranty

Features :

1. Low loading threshold for ergonomic loading and unloading..

2. "Easy Open' pneumatically operated canopy, with safety interlock.

3. Dry seal gasket to prevent wetting the operator's clothes.

4. Timed canopy lock and automatic purge of the cabinet interior with fresh air after testing and before the chamber is opened.

5. Easily accessible salt spray atomizer(s) in transparent hard-wearing acrylic, for ease of maintenance.

6. External portable salt solution tank for ease of cleaning. 115L for 300L, 73L for 450L, Chambers and 90L for 1000L Chambers and above.

7. Central viewing window for unimpeded visual access to chamber interior and test material.

8. Base castors and integrated fork lift lift truck runners, for ease of transportation.

9. Calibration certificate.

10. Consumables spares kit.

.

People also ask:

1. What is salt spray test chamber?

Be used to test material Corrosion resistance by producing salt fog. So it is also called salt fog test chamber. This salt spray cabinet is widely used in painting, coating and other industries. Salt Spray Test Method includes ASTM B117, B268, CNS 3627, 3885, 4159, 7669, 8886, JIS D-0201, H-8502, H-8610, K-5400, Z-2371, ISO3768, 3769, 3770, GB/T2423, GJB 150 and etc.
