According to ASTM International, ASTM B117 is not a test specification in itself. Instead, it outlines the good practices for operating salt spray (fog) equipment. This document establishes the parameters and requirements for operating a salt spray test chamber. Notably, ASTM B117 does not specify details such as the type of test specimen, its dimensions, shape, or exposure periods for a specific product, nor does it provide any requirements or guidance for interpreting test results.
Design standard :
CNS : 3627 , 3385 , 4159 , 7669 , 8886 ;
JIS : D0201 , H8502 , H8610 , K5400 , Z2371 ;
ISO : 3768 , 3769 , 3770 ;
ASTM : 8117 , B268 .
Purpose :
Salt spray test machine is applicable for the salt spray corrosive test for the protection layer of components , parts , electronic and electrical parts and metal materials and industrial products
Chamber Structure:

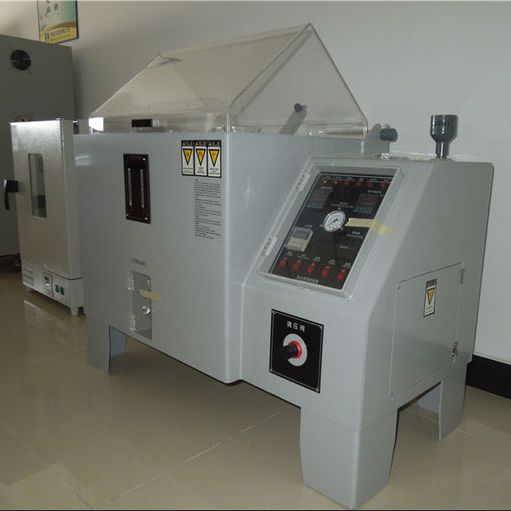

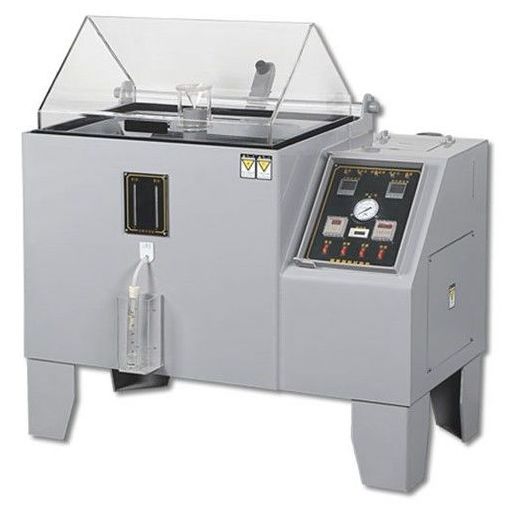

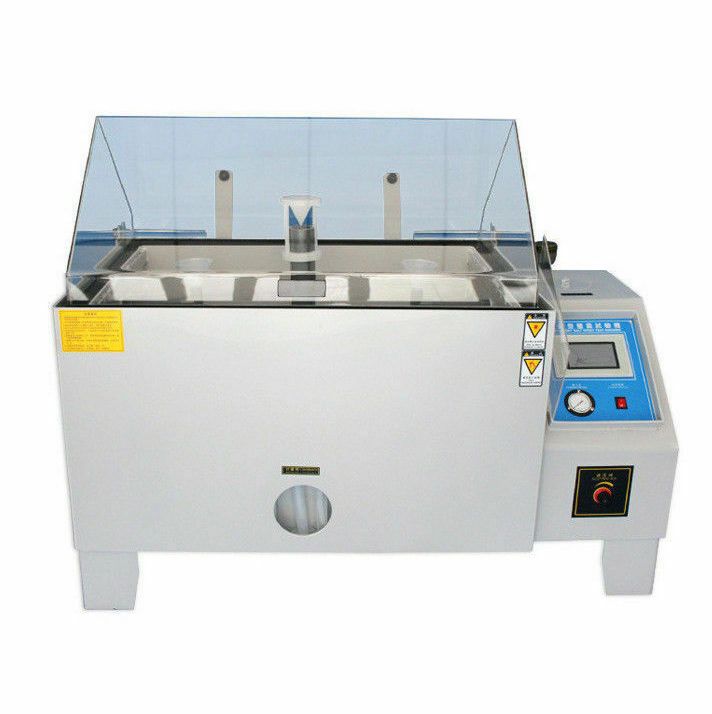

1. Salt spray test machine cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample .
2. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement .
3. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow .
Main technical parameters :
| Internal Dimension W*H*D(mm) |
1200*1000*500mm |
| External Dimension W*H*D(mm) |
2050*1250*1400mm |
| Lab Capacity(L) |
108 |
| Temperature Range:: |
35°C~55°C |
| Enter./Inter.Material |
P.V.C&P.P |
| Compressed Air Pressure(kgf) |
1.0-6.0 |
| Weight(kg) |
68 |
| Power Source |
220V 60/50HZ |
Specifications:
Salt Spray Corrosion Test Machine
1. Durable hard PVC construction
2. Anti-corrosion ,
3. Easy clean & operate
4. 1 years warranty
Features :
1. Low loading threshold for ergonomic loading and unloading..
2. "Easy Open' pneumatically operated canopy, with safety interlock.
3. Dry seal gasket to prevent wetting the operator's clothes.
4. Timed canopy lock and automatic purge of the cabinet interior with fresh air after testing and before the chamber is opened.
5. Easily accessible salt spray atomizer(s) in transparent hard-wearing acrylic, for ease of maintenance.
6. External portable salt solution tank for ease of cleaning. 115L for 300L, 73L for 450L, Chambers and 90L for 1000L Chambers and above.
7. Central viewing window for unimpeded visual access to chamber interior and test material.
8. Base castors and integrated fork lift lift truck runners, for ease of transportation.
9. A free choice of canopy colour.
10. Calibration certificate.
11. Consumables spares kit.
12. Fallout Measuring Kit.
