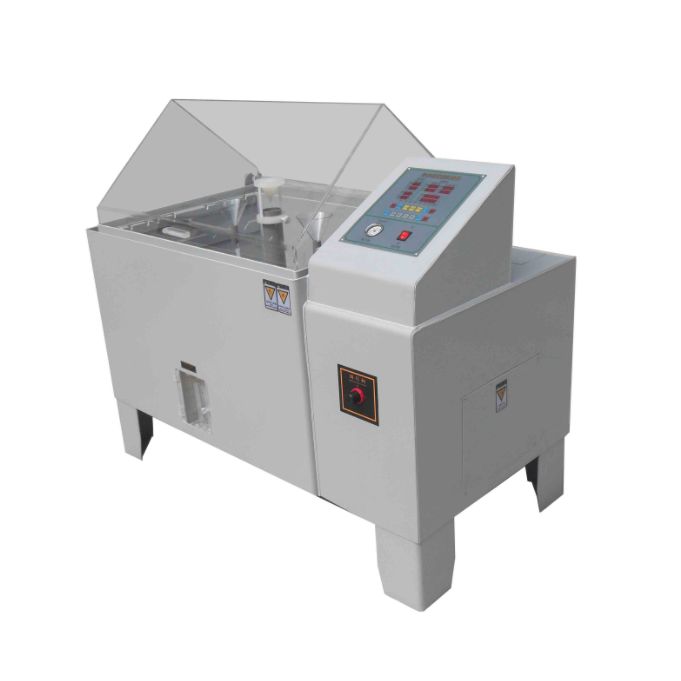

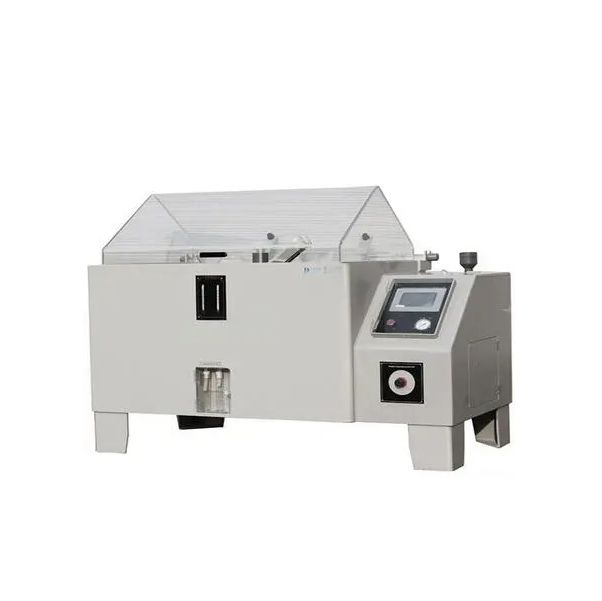

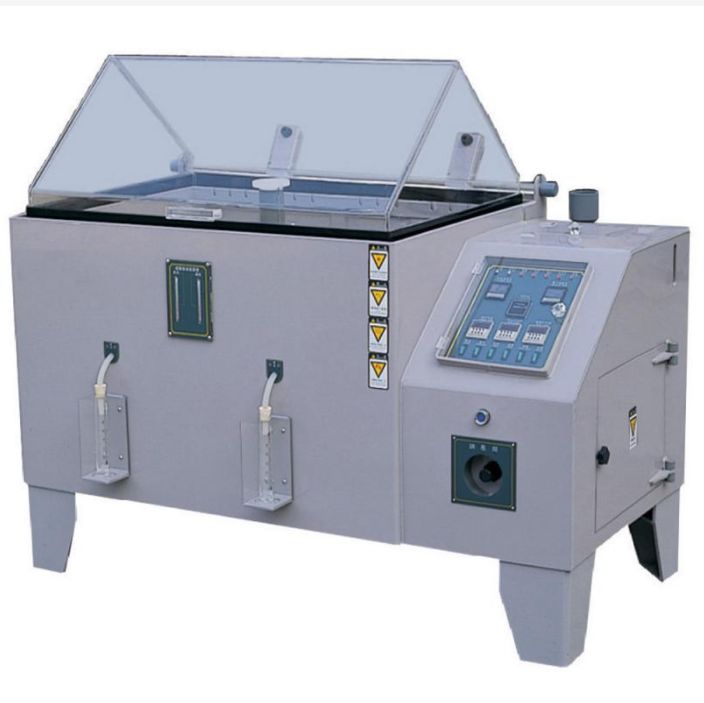

Salt Spray Tester 1-Year Warranty ASTM Standard 220V Stainless Steel Steel Corrosion Testing for Water Air Labs Supplied China

Purpose and Characteristics:
This salt spray test chamber is designed for evaluating corrosion resistance across diverse applications. Key testing scenarios include:

• Coating Evaluation: Water-resistant spray paint, powder coating (both procedures and general testing), and paint inspection.

• Metal Finishing Assessment: Zinc plating (e.g., galvanized surfaces) and stainless steel.

• General Material Testing: Painted surfaces and other coated substrates.

Compliance with International Standards:
Meeting stringent testing protocols is essential. Our salt spray chambers are engineered to comply with major international corrosion testing standards, including:

• ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus.

• ISO 9227: Corrosion tests in artificial atmospheres - Salt spray tests.

• ISO 7253: Paints and varnishes - Determination of resistance to neutral salt spray (fog).

• ASTM G85: Standard Practice for Modified Salt Spray (Fog) Testing.

These standards are fundamental and widely applied during salt spray testing procedures.

Understanding ASTM B117:
It is important to note that ASTM B117, as defined by ASTM International, is not a test specification for materials or products. Instead, it defines the operational parameters and best practices for salt spray (fog) testing equipment. This standard establishes the critical requirements for operating a salt spray test chamber itself. ASTM B117 does not specify:

1. Test specimen type, shape, or dimensions.

2. Specific exposure periods for particular products.

3. Requirements or guidelines for interpreting test results.

Design standard :

CNS : 3627 , 3385 , 4159 , 7669 , 8886 ;

JIS : D0201 , H8502 , H8610 , K5400 , Z2371 ;

ISO : 3768 , 3769 , 3770 ;

ASTM : 8117 , B268 .

Purpose :

Salt spray test machine is applicable for the salt spray corrosive test for the protection layer of components , parts , electronic and electrical parts and metal materials and industrial products

Chamber Structure:

1. Salt spray test machine cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample .
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow .
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement .

Main technical parameters :

Specifications:

Salt Spray Corrosion Test Machine

1. Durable hard PVC construction
2. Anti-corrosion ,
3. Easy clean & operate
4. 1 years warranty

Features :

1. Low loading threshold for ergonomic loading and unloading..

2. "Easy Open' pneumatically operated canopy, with safety interlock.

3. Dry seal gasket to prevent wetting the operator's clothes.

4. Timed canopy lock and automatic purge of the cabinet interior with fresh air after testing and before the chamber is opened.

5. Easily accessible salt spray atomizer(s) in transparent hard-wearing acrylic, for ease of maintenance.

6. External portable salt solution tank for ease of cleaning. 115L for 300L, 73L for 450L, Chambers and 90L for 1000L Chambers and above.

7. Central viewing window for unimpeded visual access to chamber interior and test material.

8. Base castors and integrated fork lift lift truck runners, for ease of transportation.

9. A free choice of canopy colour.

10. Calibration certificate.

11. Consumables spares kit.

12. Fallout Measuring Kit.
