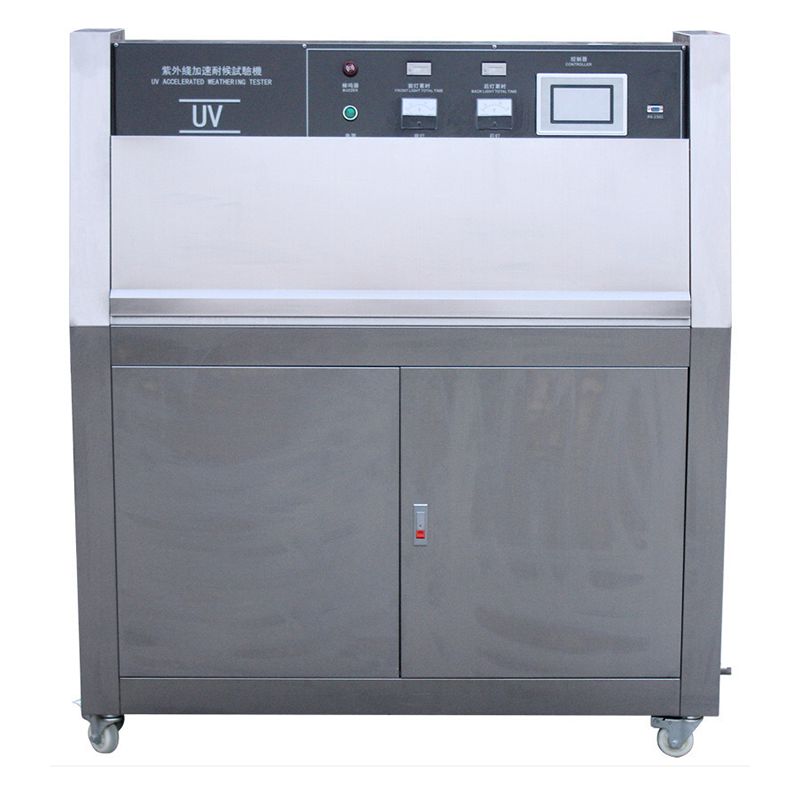

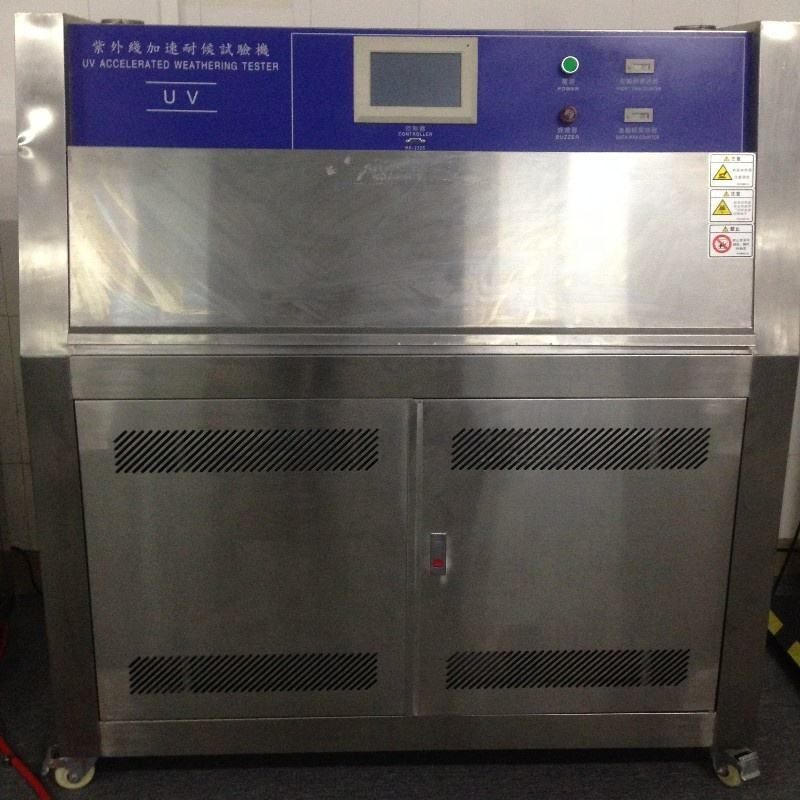

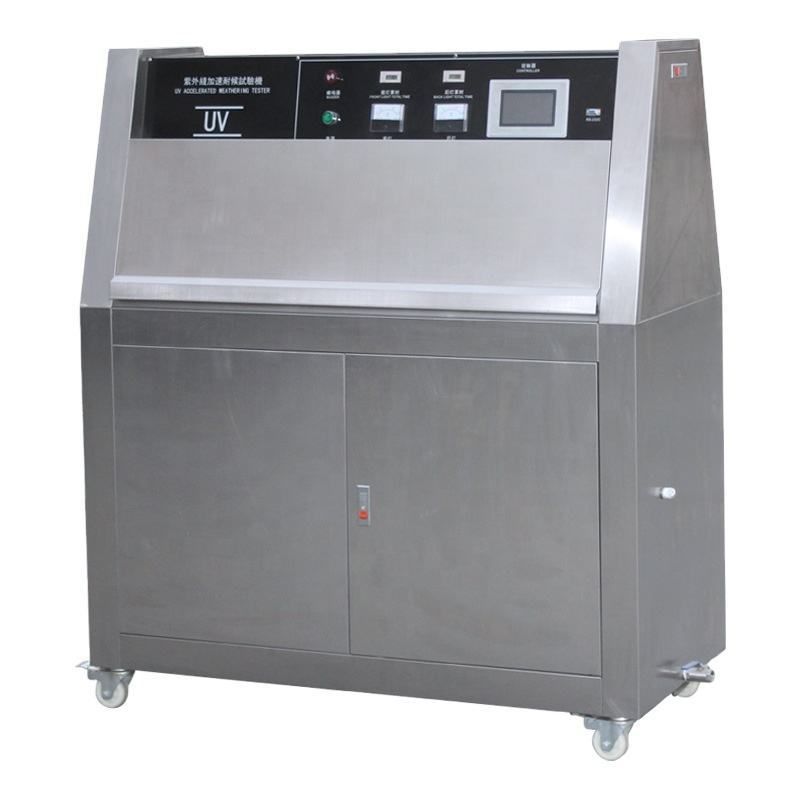

Uv Accelerated Aging Weathering Tester Desktop Ultraviolet Light Simulation Aging Test Chamber Machine Equipment Lab Direct
Description:
This product adopts fluorescent ultraviolet lamps that best simulate the UV spectrum in sunlight, and combines temperature control, humidity and other devices to simulate the high temperature, high humidity, condensation, dark rain cycle and other factors that cause damage to the material such as discoloration, brightness, intensity reduction, cracking, peeling, chalking, oxidation, etc., and at the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or invalid, so it is widely used in the evaluation of the weather resistance of the material. The equipment has the characteristics of providing excellent sunlight UV simulation, low maintenance cost, easy to use, automatic operation of the equipment by control, high degree of automation of the test cycle, good lighting stability, and high reproducibility rate of test results.
Safety protection device:
1. Grounding protection
2. Power overload short-circuit circuit breaker
3. Overload of control loop, short-circuit fuse
4. Water shortage protection
5. Over-temperature protection
Ultraviolet light:
The first-order optical reaction is not sensitive to temperature changes, however, the speed of the subsequent second-order reactions is closely related to temperature changes. In general, as the temperature increases, the reaction speed accelerates, so it is important to control the temperature during the UV exposure test, and it is more important to match the test temperature used in the accelerated test to the high temperature encountered by the material in the actual application. The temperature of the UV process in the device is set to any point of 50°C~70°C, depending on the illuminance level and the indoor ambient air temperature. The temperature regulation of the equipment is completed by a controller with a microcomputer calculation function to direct a series of systems such as air heater and water heater in the equipment.
Humidity:
As the temperature increases, the damaging power of moisture on the material increases dramatically. Therefore, temperature control is a basic requirement in humidity and overgrowth. Furthermore, the acceleration effect requires a high temperature environment to be maintained during wet processes. Therefore, the temperature of the condensation process is set at any point of 40°C~60°C.
Standards:
Fluorescent ultraviolet lamp ISO 4892-3: 2006
Automobile exterior material UV rapid aging test SAE J2020:2003
Method of ultraviolet exposure test for plastics ASTM D4329-0
Experimental Methods:
Fix the samples on shelves and face the fluorescent lamp. There are not enough samples for selyes, please fill it with black board to make sure the lest chamber sealed. Testing temperature: can adopt 50, 60 or 70°C. Recommend 60°C for test, temperalure of condensation is 50°C, temperature fluctuation is ±3°C.
The cycle of condensation includes two cycles:
1. 4 hour UV lamp and 4 hour condensalion;
2. 8 hour UV lamp and 4 hour condensation.
Specifications:
|
Product name
|
UV Ultraviolet weathering test chamber
|
|
Material
|
304 SS
|
|
Temperature range
|
RT+10℃~70℃
|
|
Humidity range
|
> 90%RH
|
|
Temperature uniformity
|
±1℃
|
|
Temperature fluctuation
|
±0.5℃
|
|
Center distance in the lamp tube
|
70mm
|
|
The distance between the test product and the center of the lamp tube
|
50±3mm
|
|
Irradiance
|
0~2W/m2 adjustable
|
|
Lamp tube
|
L=1200/60W,8 tubes (UVA service life more than 1600h)
|
|
Temperature control method
|
PID self-adjustment SSR control
|
