Product introduction:

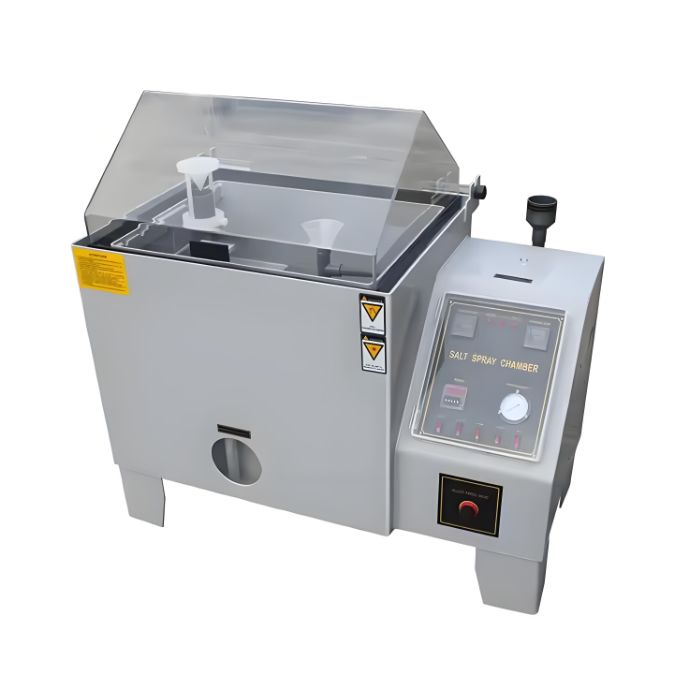

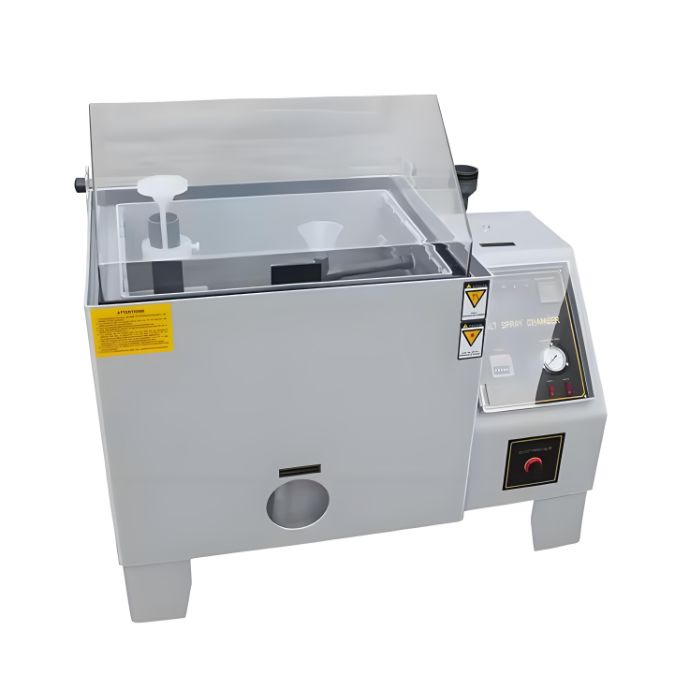

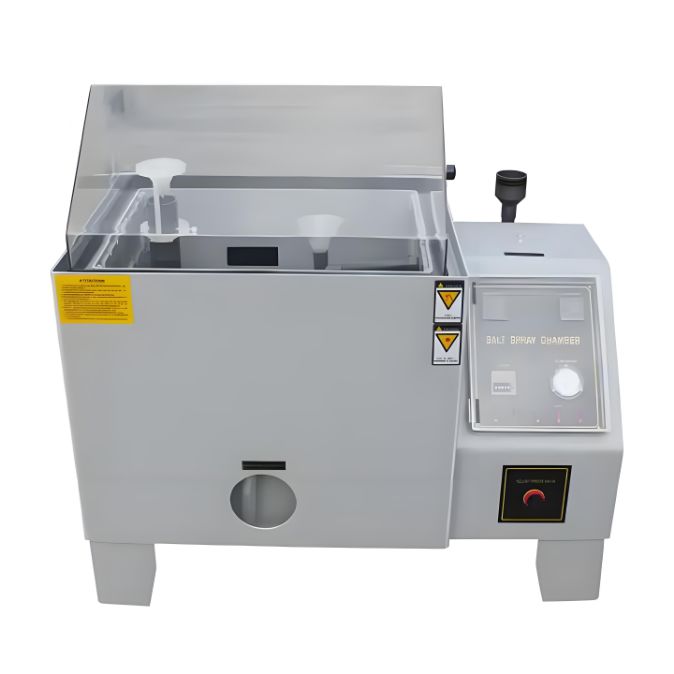

Salt spray tester is used to create and maintain the salt spray (fog) test environment, and test the anti-corosion quality of the materials surfaces. It is a specialized test used to evaluate the resistance to corrosion of paints, coatings, and metal structures as well as effects on electrical systems. Our chambers provide exposure to a salt intensive atmosphere at temperatures matching the proper specification.
Features:
1. Durable hard PVC construction, anti-corrosion, easy to clean.
2. reservoir with mixing system on stand.
3. Cabinet heated by water jacket, heating element from USA famous company.
4. Separate heating system, be apart from salt testing chamber to ensure accurate result and protect circuit.
5. Exposure zone lined with corrosion-resistant PVC sheets.
6. Clear cover allows viewing of test conditions.
7. Peaked cover prevents dripping of condensation onto samples.
8. Water seal and water level protection system.
9. Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
10. Automatic DI water fills to humidifying tower.
11. Digital temperature control and readouts.
12. Integral over-protection on all heaters.
13. Low water cut-off protection on humidifying tower.
14. Two digital temperature controllers.
Standard:
ISO9227, CNS3627,3885,4159,7669,8886, JIS D-0201, H-8502, H-8610, K-5400, Z-2371, ISO 3768, 3769, 3770, ASTM B-117, B-268, GB-T2423, GJB 150.
Application:
Salt fog spray corrosion test cabinet can be used for all kinds of material surface treatment, including coating, electroplating, organic and inorganic coating, anodizing, rust proof oil and preservative treatment test of its corrosion resistance, so as to establish the quality of the products.
Main Technical Parameters :
|
Test chamber capacity (L)
|
108L
|
270L
|
480L
|
1440L
|
|
Test chamber Temperature
|
NSS.ACSS 35°C±1°C/CASS 50°C±1°C
|
|
Air cylinder Temperature
|
NSS.ACSS 47°C±1°C/CASS 63°C±1°C
|
|
Test chamber size LxWxD(cm)
|
60*45*40
|
90*60*50
|
120*80*50
|
200*120*60
|
|
Max volum of test liquid (L)
|
15
|
25
|
40
|
40
|
|
Volume LxWxD(cm)
|
107*60*118
|
141*88*128
|
190*130*140
|
270*150*150
|
|
Power
|
AC220V,10A
|
AC220V,15A
|
AC220V,30A
|
AC220V,30A
|
|
Spray quantity
|
1.0~2.0ml/80cm2/h
|
|
PH
|
6.5~7.2 3.0~3.2
|
