-70~+150c Climate Chamber Constant Temperature And Humidity Testing Chamber Price
Introduction:
Programmable Environmental Climate Chamber Temperature Humidity Test Chamber Climatic Temperature Humidity Test Equipment Price Equipment for testing the performance of materials in various environments and testing various materials for heat resistance, cold resistance and dry resistance, moisture resistance. Suitable for electronic, electrical, mobile phone, communication, instrument, vehicle, plastic products, metal, food, chemicai, building materials, medical, aerospace and other products testing quality.
Features:
(1) Good appearance; stainless steel is applied for the inner and outside material of the chamber, flat knob without reaction force; easy operation.
(2) It can be installed additional testing holes according to requirements.
(3) It can store 100 sets of programme (PTN)x1000 (steps), each programme can do 9999 times or repeat unlimitedly, operation interface is English. It is with fault warning and protecting function, RS-232 communication interface, attached PC software available for far control.
(4) Multi-wing ventilator inside the machine surpasses the traditional one exposing outside. It ventilates cyclically and strongly to make temperature evenly in the chamber.

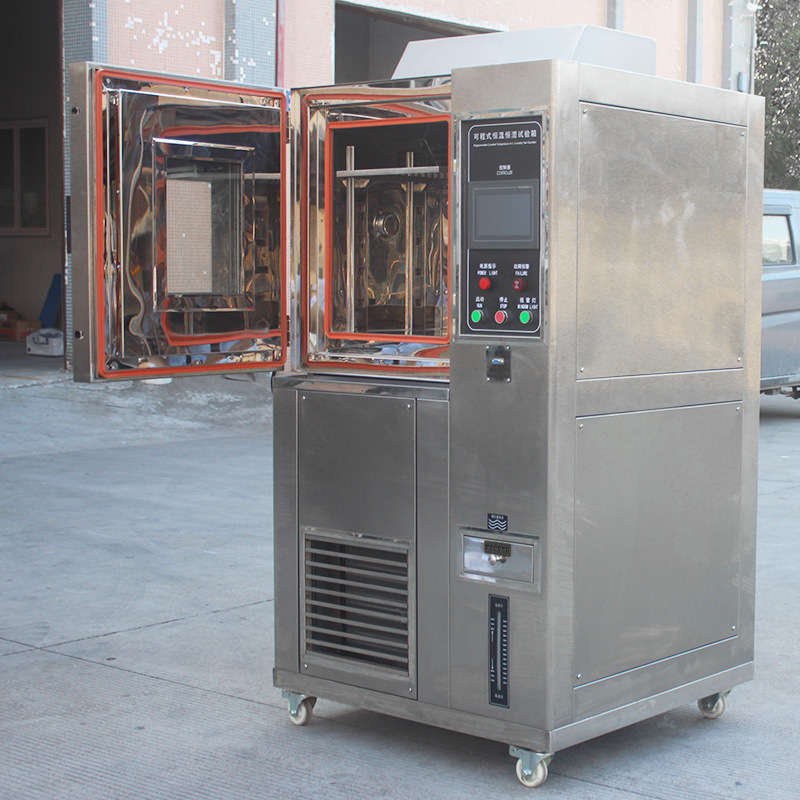

(5) Observation window: tempered glass with defroster, heating device, energy- saving illumination.
(6) Hidden water giving system: pretty appearance and convenient watering operation.
Specifications:
|
Capacity (L)
|
80
|
150
|
225
|
408
|
800
|
1000
|
|
Internal Size W x H x D(cm)
|
40 x50 x 40
|
50 x 60 x 50
|
60 x 75 x 50
|
80 x 85 x 60
|
100 x 100 x 80
|
100 x 100 x 100
|
|
External Size W x H x D(cm)
|
120×165×115
|
130x170x125
|
140x185x130
|
165x195x155
|
185x200x175
|
190x210x185
|
|
Temperature range
|
Low temperature: A: + 25 ° CB: 0 ° C, C: - 20 ° C, and D (150 ° C) : to 40 ° C, E: 60 ° C, F: high temperature - 70 °, 100℃
|
|
Humidity range
|
20%-98% R. H.(10%-98% R. H) : (5%-98% R. H is the special selection condition)
|
|
Analytical accuracy of temperature and humidity/ distribution accuracy
|
0.1°C 0.1% R.H./±2.0 °C ±3.0% R.H.
|
|
Temperature and humidity control accuracy
|
±0.5°C, ±2.5%R.H.
|
|
Heating/cooling time
|
The temperature rises about 4.0℃/ min; Cooling is about 1.0℃/ min
|
|
Internal and external material
|
The inner and outer boxes are made of SUS304# stainless steel plate (optional baking paint).
|
|
Insulation material
|
High temperature resistant high density chloroethylene formate foam insulator material
|
|
Cooling system
|
Air-cooled/single-stage compressor (-20°C); Two-stage compressor (-40° C-70 °C)
|
|
Safety protection device
|
No fuse switch, compressor overload protection, refrigerant high and low pressure protection, over humidity and over temperature protection, fuse, fault warning system, water shortage alarm protection
|
|
Accessories
|
Operating hole built-in glass door (optional), recorder (optional), viewing window, 50mm test hole, PL box light, partition, wet and dry ball gauze, casters, horizontal tripod
|
|
Power supply
|
AC220V 50/60Hz & AC380V 50/60Hz3
|
Standard:
GB-2423.1-89 ( IEC68-2-1 ) GJB150.4 ( MIL-STD-810D )
GB-2423.2-89 ( IEC68-2-2 ) GB2423.3-93 ( IEC68-2-3 )
GJB360.8-87 ( MIL-STD-202F ) GB2423.4-93 ( IEC68-2-30 )
GJB150.3 ( MIL-STD-810D ) GJB150.9-93 ( MIL-STD-810D )
Application:
Below material can be tested on the Temperature Humidity Climatic Test Chamber
Machine working condition:
Temperature: 15～35℃;
Air flow should not be blown directly to the body;
Relative humidity:≤85%RH
Air pressure:86～106Kpa
Make sure the machine without any strong vibration and airflow, no direct sunlight or other heat radiator, no high density dust or corrosive material. And keep 60cm space with other appliance or wall to make sure normal working and operation.
