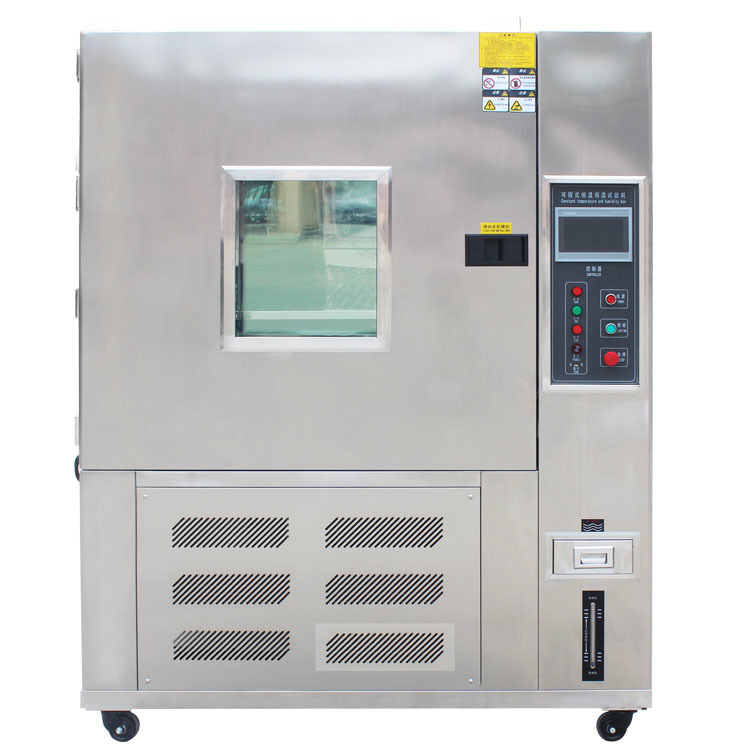

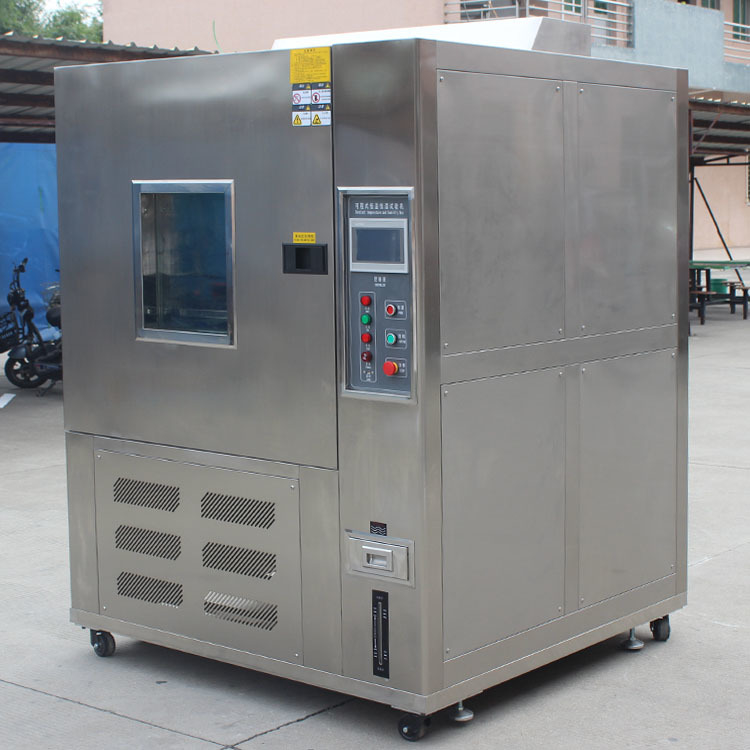

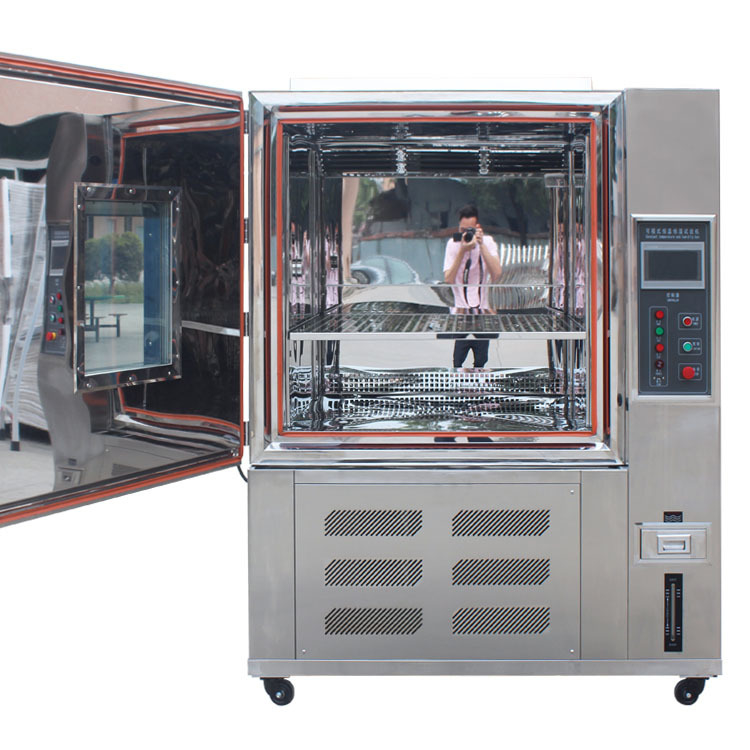

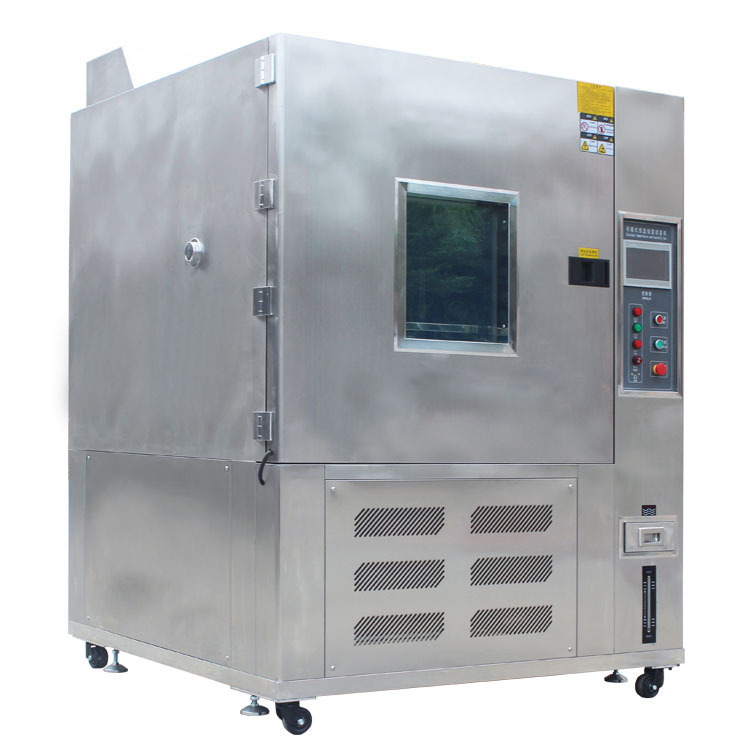

1000l Lab Environmental Programmable Constant Temperature Humidity Chamber For Climatic Simulation
Introduction:
Constant Temperature and Humidity test chamber is a precise and durable conditioning system that able to offer quick and constant conditions from 5% to 98% R.H. +/- 0.5% and-70°C to 150°C +/-0.5°C, is widely used for the resistance test to heat, cold, dry, and humidity etc, and used for the conditioning of many kinds of samples prior to testing
Constant Temperature and Humidity test chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
Standard:
GB/T2423.22-87NB; IEC68-2-03; JESD22-A101-B-2004
Features:
1. The separation of humidifier circuit from electric circuit improves safety and protects the circuit against the leakage of water supply line.
2. Available in Chinese and English LCD touch screen, easy operation and program.
3. Able to display the relative date and information of the whole operating system in running mode, graphic display, precautions, maintenance and troubleshooting appear on the screen instantly.
4. The Sirocco fan motor provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain an uniform distribution of temperature and humidity.
Specifications:
|
Volumn
|
80L
|
100L
|
150L
|
225L
|
408L
|
800L
|
1000L
|
|
Chamber size
|
40×50×40
|
50x40x50
|
50x50x60
|
60x50x75
|
80x60x85
|
80x80x100
|
100x100x100
|
|
External size
|
93x136x94
|
100x130x100
|
100x147x105
|
108x161x118
|
110x171x137
|
150x186x137
|
150x186x157
|
|
Temperature set accuracy
|
0.1℃
|
|
Temperature range
|
-20/ -40/ -60/ -70 ～ +150℃
|
|
Temperature fluctuation
|
≤±0.5℃
|
|
Temperature uniformity
|
≤±1℃
|
|
Temperature rise
|
+20 to -40℃,60min； +20 to 100℃,40min
|
|
Humidity set accuracy
|
0.1%R.H
|
|
Humidity range
|
20%―98%R.H(AT+25℃～+85℃)
|
|
Humidity error
|
+2/-3%R.H(>75%R.H),±5% R.H(<75%R.H)
|
|
Cooling system
|
Air-cooled/ single-stage compressor(-20℃) ,wind, water cooled/two-stage compressor(-40℃~-70℃)
|
|
Compressor
|
France “Taikang”
|
|
Air speed
|
1.7 ～ 2.5m/s
|
|
Power
|
220V±10% 50Hz & 380V±10% 50Hz
|
|
Chamber materials
|
SUS 304 Stainless
|
|
Glass viewing window
|
Multilayer insulating glass with heating frost prevention device
|
|
Water tank
|
Build-in
|
Application:
The chambers is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time. Programmable Temperature Humidity Climatic Test Chamber Price applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.
Machine working condition:
Temperature: 15～35℃;
Air flow should not be blown directly to the body;
Relative humidity:≤85%RH
Air pressure:86～106Kpa
Make sure the machine without any strong vibration and airflow, no direct sunlight or other heat radiator, no high density dust or corrosive material. And keep 60cm space with other appliance or wall to make sure normal working and operation.
