Product Description:

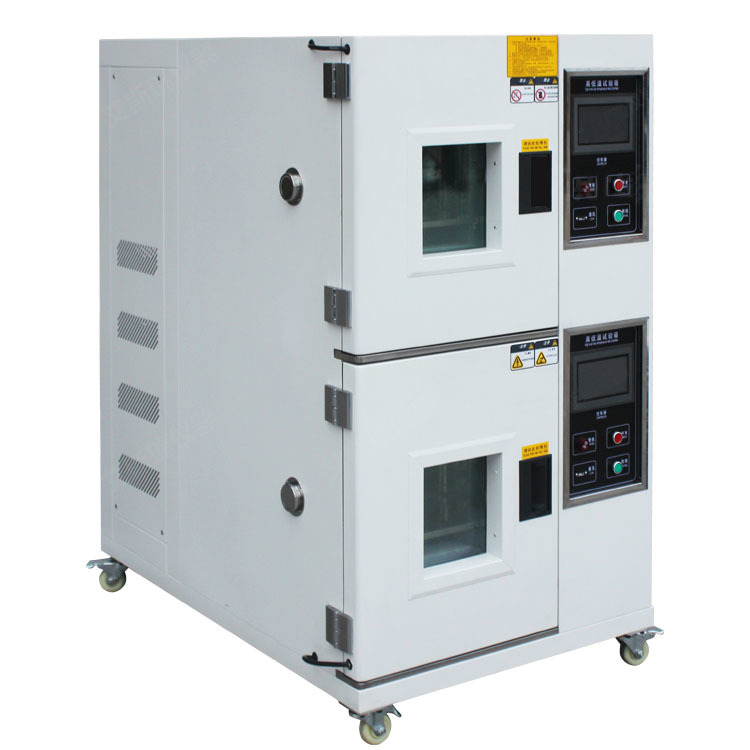

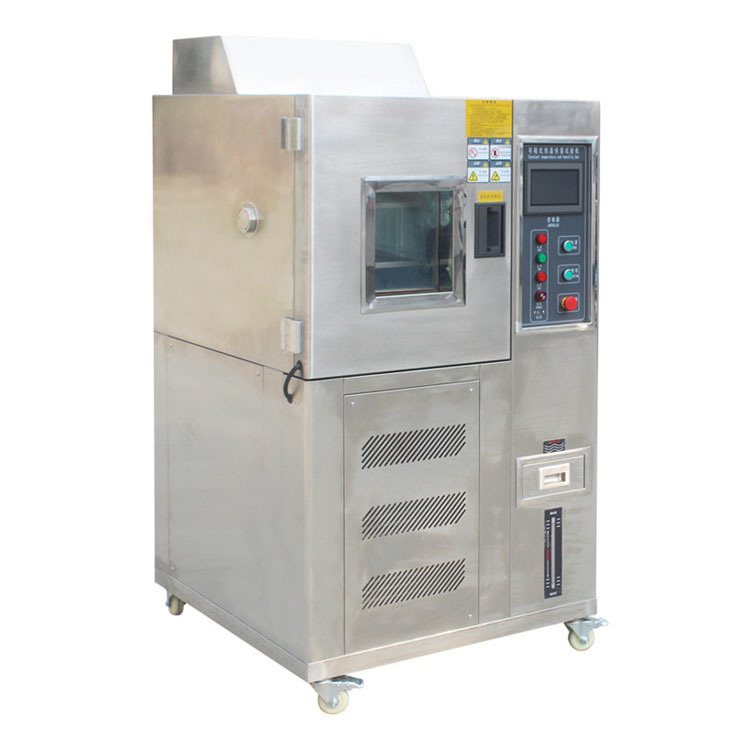

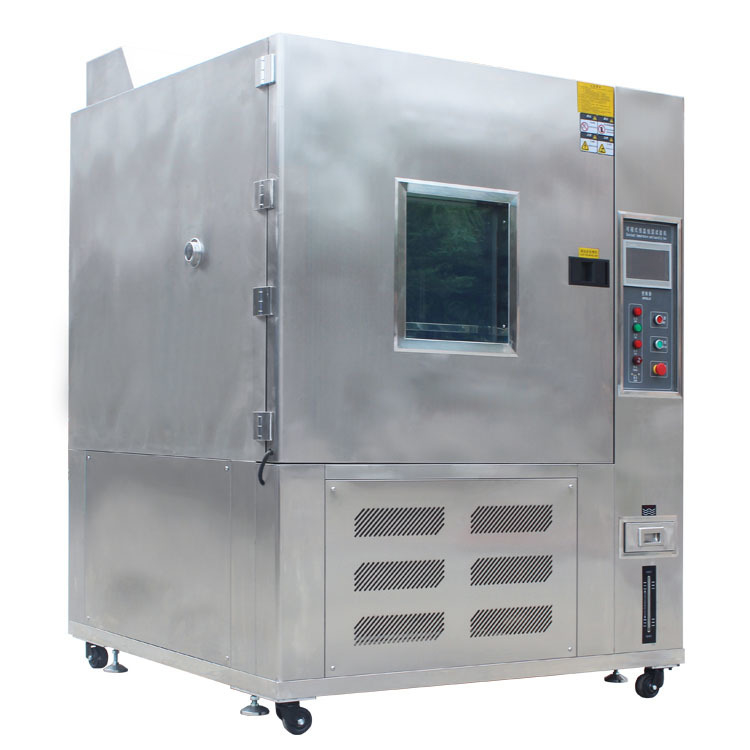

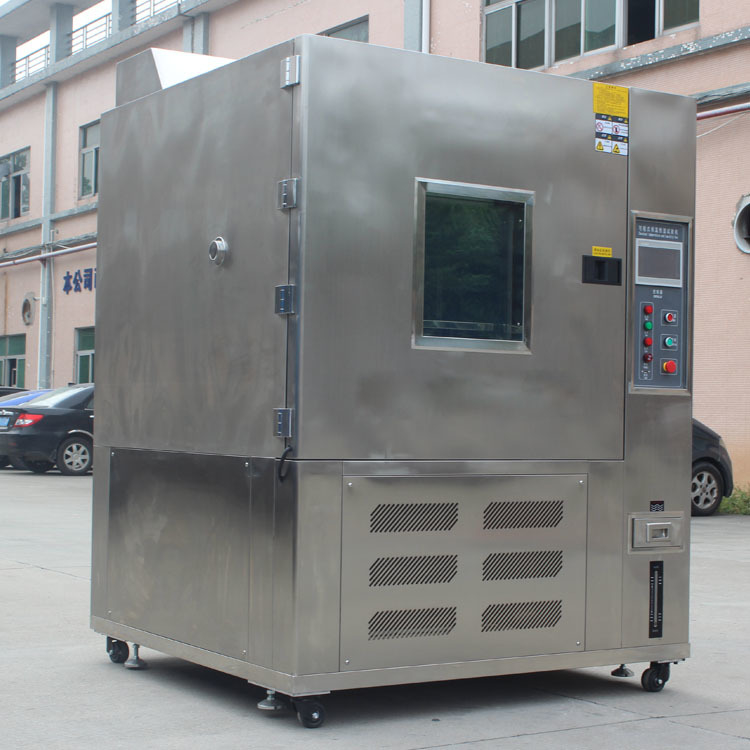

Constant Temperature and Humidity test chamber is a precise and durable conditioning system that able to offer quick and constant conditions from 5% to 98% R.H. +/- 0.5% and-70°C to 150°C +/-0.5°C, is widely used for the resistance test to heat, cold, dry, and humidity etc, and used for the conditioning of many kinds of samples prior to testing
Constant Temperature and Humidity test chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
Features:
1. The separation of humidifier circuit from electric circuit improves safety and protects the circuit against the leakage of water supply line.
2. Available in Chinese and English LCD touch screen, easy operation and program.
3. Able to display the relative date and information of the whole operating system in running mode, graphic display, precautions, maintenance and troubleshooting appear on the screen instantly.
4. The Sirocco fan motor provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain an uniform distribution of temperature and humidity.
Specifications:
|
Volumn
|
80L
|
100L
|
150L
|
225L
|
408L
|
800L
|
1000L
|
|
Chamber size
|
40×50×40
|
50x40x50
|
50x50x60
|
60x50x75
|
80x60x85
|
80x80x100
|
100x100x100
|
|
External size
|
93x136x94
|
100x130x100
|
100x147x105
|
108x161x118
|
110x171x137
|
150x186x137
|
150x186x157
|
|
Temperature set accuracy
|
0.1℃
|
|
Temperature range
|
-20/ -40/ -60/ -70 ～ +150℃
|
|
Temperature fluctuation
|
≤±0.5℃
|
|
Temperature uniformity
|
≤±1℃
|
|
Temperature rise
|
+20 to -40℃,60min； +20 to 100℃,40min
|
|
Humidity set accuracy
|
0.1%R.H
|
|
Humidity range
|
20%―98%R.H(AT+25℃～+85℃)
|
|
Humidity error
|
+2/-3%R.H(>75%R.H),±5% R.H(<75%R.H)
|
|
Cooling system
|
Air-cooled/ single-stage compressor(-20℃) ,wind, water cooled/two-stage compressor(-40℃~-70℃)
|
|
Compressor
|
France “Taikang”
|
|
Air speed
|
1.7 ～ 2.5m/s
|
|
Power
|
220V±10% 50Hz & 380V±10% 50Hz
|
|
Chamber materials
|
SUS 304 Stainless
|
|
Glass viewing window
|
Multilayer insulating glass with heating frost prevention device
|
|
Water tank
|
Build-in
|
Standard:
GB/T2423.22-87NB; IEC68-2-03; JESD22-A101-B-2004
