Salt Spray Testing Environmental Chamber According To GB/T And ASTM Standards

Environmental Test Chamber for Salt Spray Testing according to GB/T and ASTM Standards​

Product introduction:

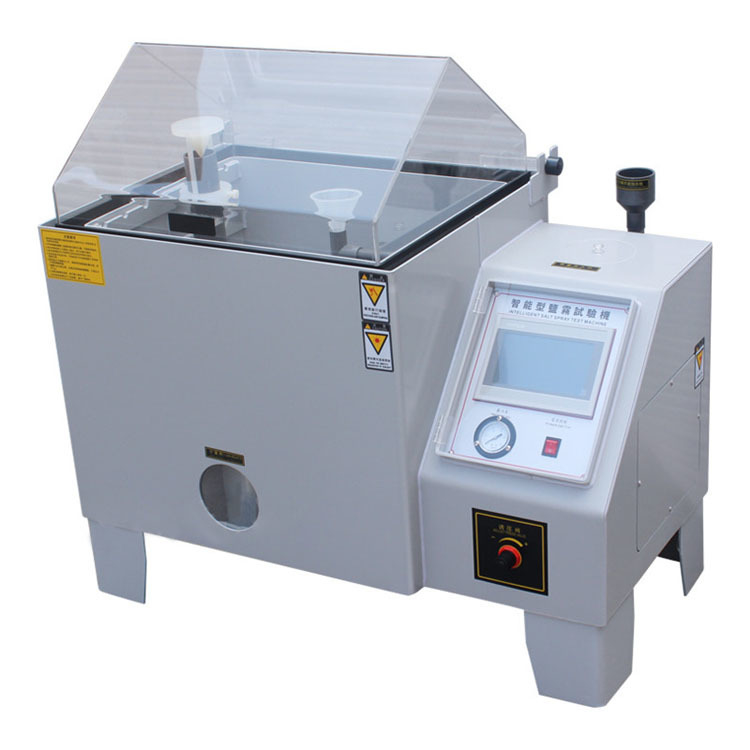

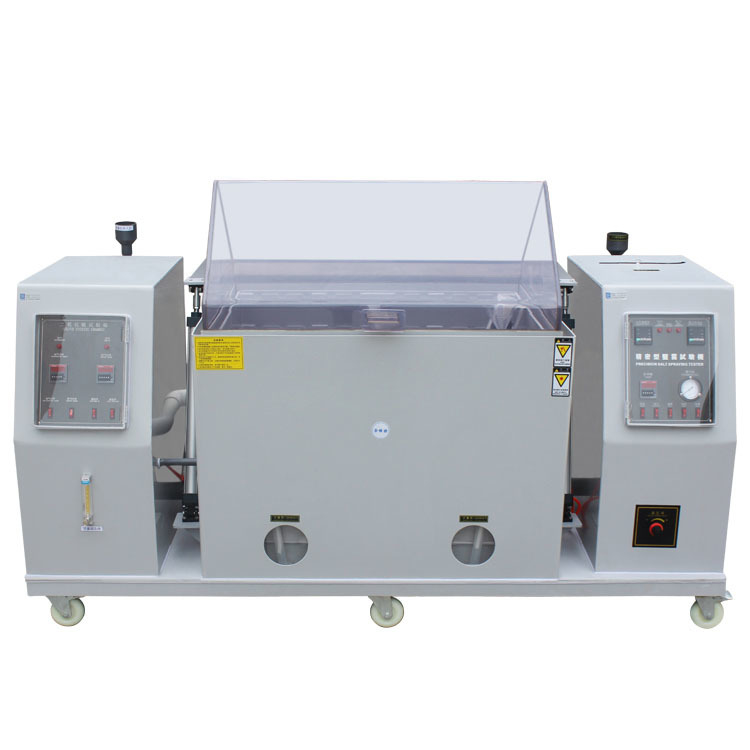

The ASTM B117 Salt Spray Test Chamber Price is used for the surface treatment of various materials, including coatings, electroplating, organic and inorganic film, anode processing, anti-rust oil and other anti-corrosion treatments to test the corrosion resistance, thus establishing the quality of the product.

Features:

1. Durable hard PVC construction, anti-corrosion, easy to clean.
2. reservoir with mixing system on stand.
3. Cabinet heated by water jacket, heating element from USA famous company.

4. Separate heating system, be apart from salt testing chamber to ensure accurate result and protect circuit.

5. Exposure zone lined with corrosion-resistant PVC sheets.
6. Clear cover allows viewing of test conditions.
7. Peaked cover prevents dripping of condensation onto samples.
8. Water seal and water level protection system.
9. Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
10. Automatic DI water fills to humidifying tower.
11. Digital temperature control and readouts.
12. Integral over-protection on all heaters.
13. Low water cut-off protection on humidifying tower.
14. Two digital temperature controllers.

Standard:

1. GB/T 2423.17-1993 salt spray test

2. GB/T 2423.18-2000 salt spray test

3. GB/T 10125-1997 salt spray test

4. ASTM.B117-97 salt spray test

5. JIS H8502 salt spray test

6. IEC68-2-11 salt spray test

7. IEC68-2-52 1996 salt spray test

8. GB.10587-89 salt spray test

9. CNS.4158 salt spray test

10. CNS.4159 CASS Accelerated acetic acid copper salt spray test

11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test

Technical Parameters:

 Advantages:

1. Spray method: A: continuous spray B: programmable spray.

2. Adopt a full detection system, which can be lighted when a fault occurs.

3. The whole set is made of imported PVC board, the structure is strong, never deformed, and it is resistant to acid and alkali and high temperature and never aging.

4. Adopt automatic/manual water adding system, with the function of automatic/manual water adding when the water level is insufficient, the test will not be interrupted, and the water level will be alarmed when the water level is insufficient.

5. Quartz glass nozzle, the mist diffuses evenly, and falls naturally on the test piece without blocking by crystalline salt.

6. The controllers are all on the same board, easy to operate and clear at a glance.

7. With double over-temperature protection, warning of insufficient water level to ensure safe use.

8. The imported temperature controller has manual and fully automatic control methods, using digital display, PID control, error ± 0.1 ℃, the maximum setting time can reach 999HrS.

9. The laboratory adopts direct steam heating method, the heating speed is fast and uniform, and the standby time is shortened.

10. The spray tower is equipped with a conical diffuser, which has the functions of guiding the mist, adjusting the amount of mist and evenly falling the mist.

11. The pressure barrel adopts Henry's law to heat and humidify.

12. The upper cover of the test tank is automatically opened and closed by a pneumatic cylinder, which is easy to operate and has good safety.

13. After the test is completed, it has an automatic defogging device to clearly observe the test products in the test room.

Our Services & Strength:

1. 10 years manufacture in testing machine

2. 5 years alibaba supplier

3. 100% QC inspection before shipment

4. 12 months warranty
