Name: Dust Proof Test Xenon Tester For Electrician Electronics Automobile Motorcycle Products And Parts
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY833
Price: 11957.00 USD
Availability: InStock

Home > products > Environmental Test Chamber >

Dust Proof Test Xenon Tester For Electrician Electronics Automobile Motorcycle Products And Parts

Motorcycle Parts Xenon Tester

Electrician Xenon Tester

Automobile Xenon Tester

Place of Origin:

CHINA

Brand Name:

YUYANG

Certification:

ISO5470

Model Number:

YY833

Request A Quote

Dust Proof Test Xenon Tester For Electrician Electronics Automobile Motorcycle Products And Parts

Product Details

Blackboard Temperature Range:

Room Temperature 30 ℃ ~ + 80 ℃

Shell Material:

Stainless Steel 304 / Coating

Light Source::

1.8 KW

Net Weight::

110 Kg

Inner Dimension:

108L/ 250L/400L/800L/1000L

External Chamber:

A3 Cold Rolled Steel Plate

Temperature Accuracy:

0.1℃

Purpose:

Simulation Rain Spraying Test

Method:

Salt Test, Anti-corrosion Test

Temp Change Rate:

2℃~2.5℃/m Heat-up, 1℃/m Cool-down

Water Way:

Atered By Itself While Lack Of Water

Humidity Range:

10% To 98% RH

Cooling Method:

Water Cooling Or Air Cooling

Highlight:

Motorcycle Parts Xenon Tester

Electrician Xenon Tester

Automobile Xenon Tester

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiation

Packaging Details

Wooden Box

Delivery Time

1-3 WORK DAYS

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

500 SETS A MONTH

Constant Environmental Cycling Control High-low Temperature Climatic Chamber With Controlled Temperature and Humidity

Get Best Price

Video

Lab Supplies Programmable Constant Temperature Humidity Chamber Test Equipment

Get Best Price

UV Aging Test Lamp For Bituminous Materials With 220v Voltage Current Power Monitor Power Factor Frequency Energy Meter

Get Best Price

Customizable ODM OBM Electronic Salt Fog Corrosion Test Device With Temperature Control Meter 1.0-6.0

Get Best Price

86-769-26622869

Contact Now

Product Description

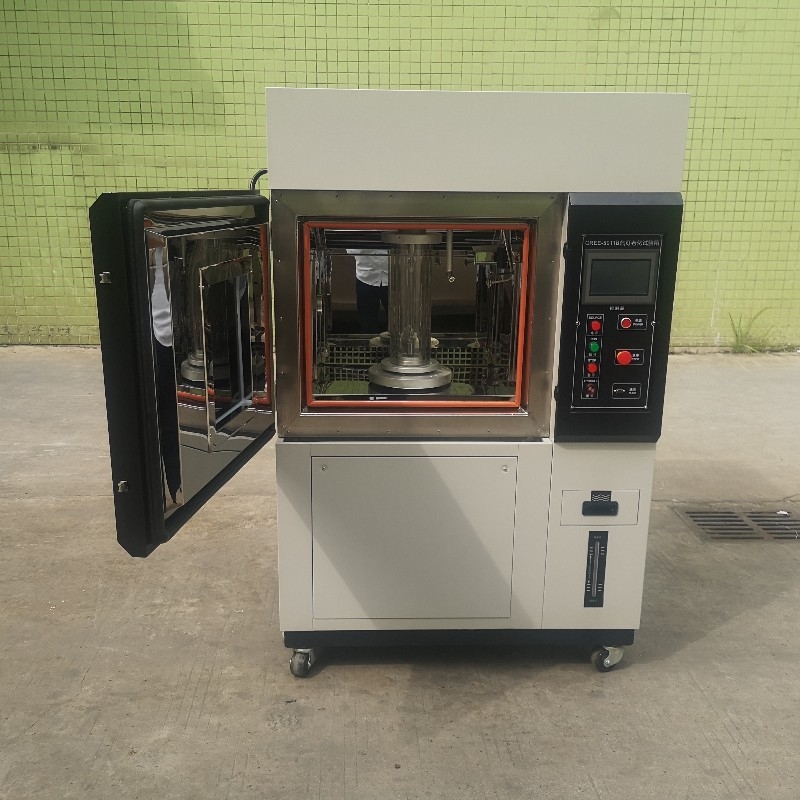

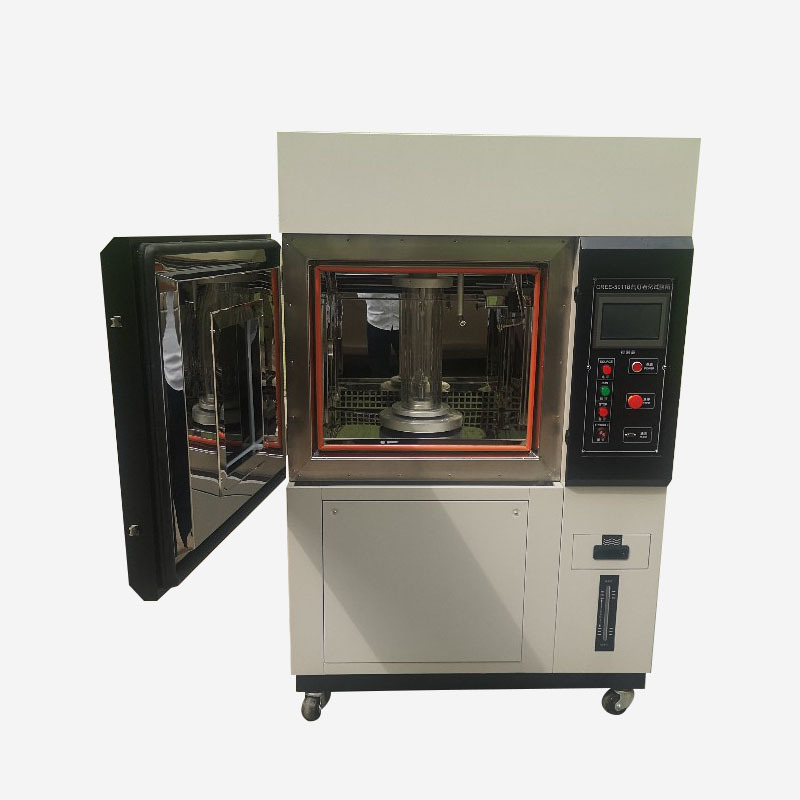

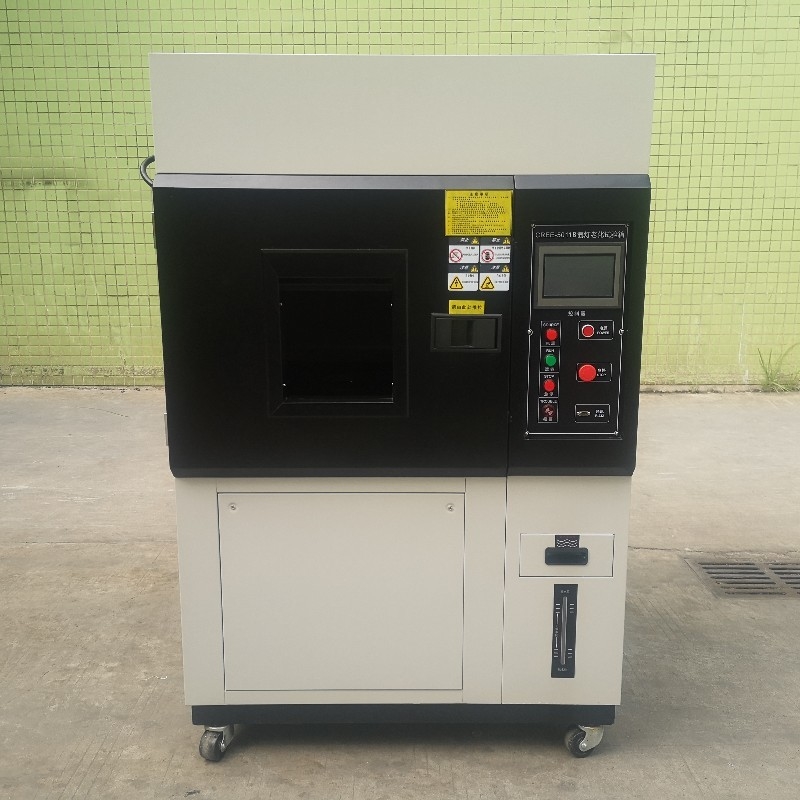

Dust Proof Test Xenon Tester for Electrician Electronics Automobile Motorcycle Products and Parts

General description:

1) Xenon Tester is to test the product undergone illumination / rain condensation / temperature / humidity / any other climatic changes.
2) Xenon Tester mainly for the test of non-ferrous/ organic /rubber plastic and building materials. It can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.

Characteristics:

1. The inner tank is made of stainless steel, and the outer shell is coated with cold-rolled sheet electrostatic spraying. Imported intelligent temperature controller is adopted.

2. Small programmable controller, each system has protection function.

3. Nominal wire diameter of metal screen: 50 μm

4. Nominal spacing between lines: 75 μm

5. Talc dosage: 2kg/m3~4kg/m3

6. Dust proof test for electrician, electronics, automobile, motorcycle and other products and parts.

Standard

1. GB4208-2008/IEC 60529:2001

2. GB2423.37-2006/IEC 60068-2-68-1994

3. GJB150.12-2009

4. GB 7000-1-2007

5. GB10485

Spectification

Model

HY-XD

-80

HY-XD

-150

HY-XD

-225

HY-XD

-408

HY-XD

-800

HY- XD

-1000

Inner size: WHD(cm)

40*50

*40

50*60

*50

60*75

*50

60*85

*80

100*100

*80

100*100

*100

External size: WHD(cm)

105*185

*115

105*185

*115

115*195

*115

135*210

*120

155*230

*145

155*230

*165

Temperature and humidity uniformity

± 2°C; ± 3%RH

Temperature range

0ºC~80ºC, adjustable

Humidity range

30%~98%R.H

Rainfall time

1~9999min, adjustable

Rainfall cycle

1~240min,interval is adjustable

Wavelength

290nm~800nm

Xenon lamp light

Xenon long-arc lamp, 1.8KW±10%, 290-800nm, 1200W/m2

Xenon lamp light quantity

1PCS

1 PCS

2 PCS

3 PCS

Box material

Stainless Steel SUS304#

Control and cooling system

Korea TEMI programmable controller

Power (w)

4500

5500

6000

11800

13500

14000

weight (kg)

230

300

450

550

680

Dust Proof Test Xenon Tester For Electrician Electronics Automobile Motorcycle Products And Parts 0
