ASTM E 662 Solid Materials Smoke Density Flammability Testing Equipment

ASTM E 662 Solid Materials Smoke Density Flammability Testing Equipment

  • ASTM E 662  Solid Materials Smoke Density Flammability Testing Equipment
  • ASTM E 662  Solid Materials Smoke Density Flammability Testing Equipment
  • ASTM E 662  Solid Materials Smoke Density Flammability Testing Equipment
ASTM E 662  Solid Materials Smoke Density Flammability Testing Equipment
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ASTM E662, BSI 6401, ISO 5659-2, GB/T 8323.2
Model Number: YY119
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per quarter
Contact Now
Detailed Product Description
Product Name: Flammability Testing Equipment Usage: Solid Materials Smoke Density Tester
Heat Fluxmeter: 10 ~ 70 KW/m2 Power: 220V 50HZ
Specimen Holder: 75 × 75 Mm Gas Source: Propane Or Butane Gas
Size: 1700(W)*750(D)*2000(H)mm Weight: 180KG
High Light:

flame test equipment

,

flammability test apparatus





ASTM E 662 Solid Materials Smoke Density Flammability Testing Equipment





Introduction:



Measure the optical density of smoke when a certain thick specimen is exposed to a heat source of 25KW/m2 or 50KW/m2.

Smoke Density Test Apparatus is widely used in assessing characteristics of vehicle interior and inflammable cable.





Applicable standards:



ASTM E 662 Standard test method of specific optical density of smoke by solid material
BSI 6401 UK Standard of measuring specific optical density of smoke by material
ISO 5659-2 Plastic smoke generation, determination of optical density by a single chamber test
NES 711 Measure the smoke density index of a small specimen burning
GB/T 8323.2





Features:



1. Integrated design.

2. 19" PC with Lab view.

3. Auto open ventilation up and down with cyclinder, control the exhaust more efficiently.

4. Teflon coated inside, easy to clean and corrosion resistant.

5. Digital display of smoke optical transmittance and density.

6. Pre-heated apparatus for quick startup and accurate data acquiring.

7. Safe blowout panel for safety, when the chamber pressure goes up very quickly.

8. USA Medtherm Heat Flux meter, portable water cooling system without running water supply.

9. Weighing sensor enables mass loss rate accurately.





Specifications:

1. Size: 1700(W)*750(D)*2000(H)mm;

2. Weight: 120kg;

3. Power supply: AC220V, 16A;

4. Gas source: Purity >95% propane;

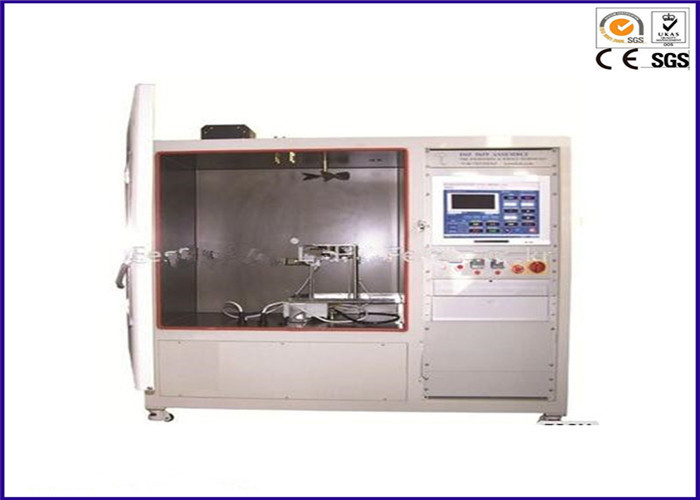

ASTM E 662  Solid Materials Smoke Density Flammability Testing Equipment 0

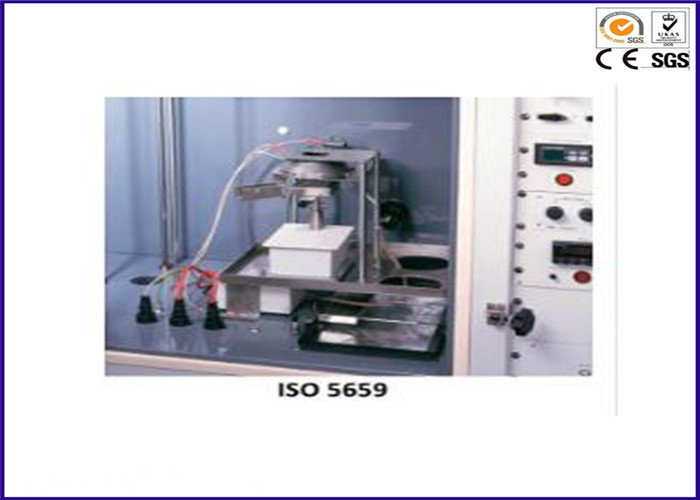

ASTM E 662  Solid Materials Smoke Density Flammability Testing Equipment 1
