DONGGUAN YUYANG INSTRUMENT CO.,LTD
China Good Quality Manufacturer of Testing Equipment
 |
| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO 1974, GB/T 10739, ISO 186, GB 455.1 |
| Model Number: | YY1402 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2 sets per month |
| Product Name: | Package Testing Equipment | Usage: | Tear Resistant Paper Test |
|---|---|---|---|
| Stage A: | (50-8000)mN | Stage B: | (8000-16000)mN |
| Tearing Arm Of Force: | 104±1mm | Tearing Initial Angle: | 27.5±0.5° |
| Tearing Distance: | 43±0.5mm | Clip Board Size: | 25×15mm |
| Specimen Size: | 50×63mm | Dimension: | 510×400×565mm |
| High Light: | vibration testing equipment,compression test equipment |
||

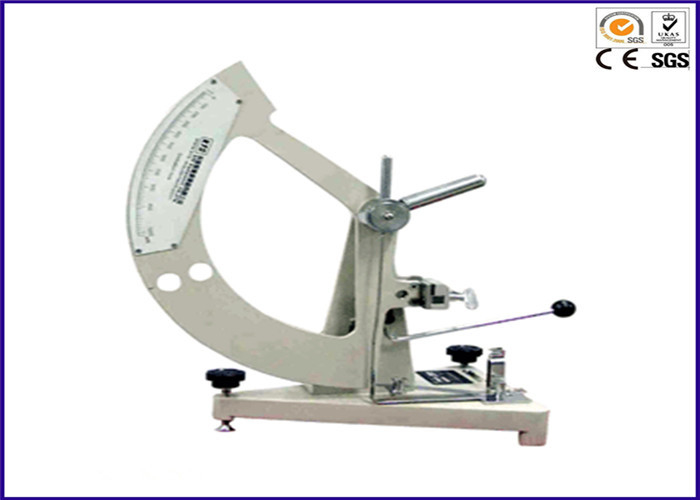

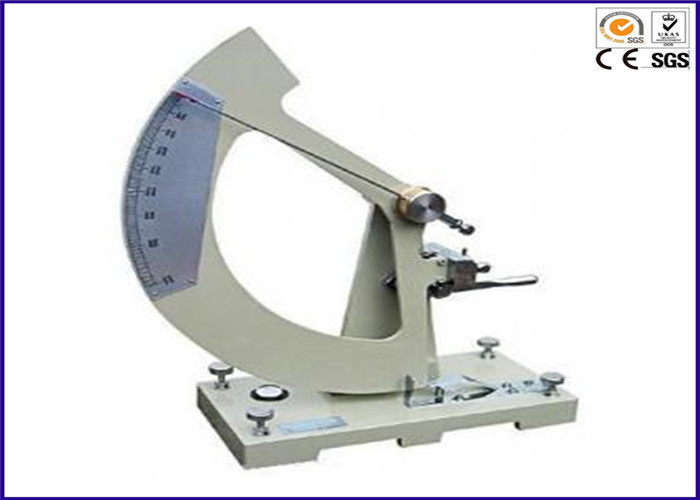

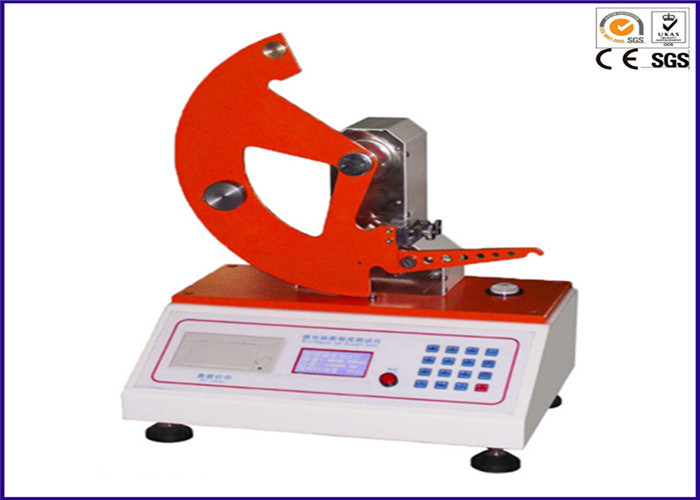

Tear Resistant Paper Package Testing Equipment with Tearing Distance 43±0.5mm
Purpose:
Tearing resistance tester is used for testing tearing resistance of paper and paper board, it is also used for testing tearing resistance of flaky composite materials like textile, leather and thin film.
Product features:
1. Compact structure design to ensure the elegant appearance, also easy to maintain
2. The configuration is very flexible, to reach different functions
3. Precision production, to ensure the high accuracy
Product application:
The tester can be applied in testing paper tearing strength. If change the configuration, it can be used to test other materials, like plastic, chemical fiber, metal wire, metal foil and so on.
Technical standards:
ISO 1974:1990 <Paper -- Determination of tearing resistance (Elmendorf method)>
GB/T 10739-2002 <Paper, board and pulps – Standard atmosphere for conditioning and testing>
ISO 186:1994 <Paper and board - Sampling to determine average quality>
GB 455.1 <Paper - Determination of tearing>
Specification:
| Model | YY1402 |
| Measuring range | Stage A: (50-8000)mN, Stage B: (8000-16000)mN |
| Tearing arm of force | 104±1mm |
| Tearing initial angle | 27.5±0.5° |
| Tearing distance | 43±0.5mm |
| Clip board size | 25×15mm |
| Specimen size | 50×63mm |
| Distance between clip board devices | 2.8±0.3mm |
| Working environment | temperature:(0~35)℃, humidity＜85% |
| Dimension | 510×400×565mm |
| Temperature | (20±10)℃, humidity＜85% |
| Working power supply | AC 220V 50Hz or specified by user |
