GB8942 Paper Softness Package Testing Equipment with Touch Screen 0-100Kg

GB8942 Paper Softness Package Testing Equipment with Touch Screen 0-100Kg

  • GB8942 Paper Softness Package Testing Equipment with Touch Screen 0-100Kg
  • GB8942 Paper Softness Package Testing Equipment with Touch Screen 0-100Kg
  • GB8942 Paper Softness Package Testing Equipment with Touch Screen 0-100Kg
  • GB8942 Paper Softness Package Testing Equipment with Touch Screen 0-100Kg
GB8942 Paper Softness Package Testing Equipment with Touch Screen 0-100Kg
Product Details:
Place of Origin: china
Brand Name: YUYANG
Certification: GB8942 ,ISO
Model Number: YYP-012
Payment & Shipping Terms:
Packaging Details: Outer dimension:
Delivery Time: 10-15 work days
Supply Ability: 30sets/month
Contact Now
Detailed Product Description
Operation System:: Touch Screen Power Supply:: AC220V, 50Hz
Testing Range:: (10-1000)mN. Testing Speed:: 1.2mm/S.
Testing Time:: 15S. Resolution:: 1mN.
Accuracy:: ±1%. Pressed Depth By Testing Head:: 8+0.5 0mm.
Clearance Of Testing Table (4 Grades):: 5mm, 6.35mm, 10mm, 20mm. Error For Parallelism Of The Clearance:: Less Than 0.05mm
Outer Dimension:: Outer Dimension:
High Light:

packaging testing instruments

,

compression test equipment



GB8942 Touch Screen Package / Paper Softness Testing Equipment 0-100Kg



Product Description:

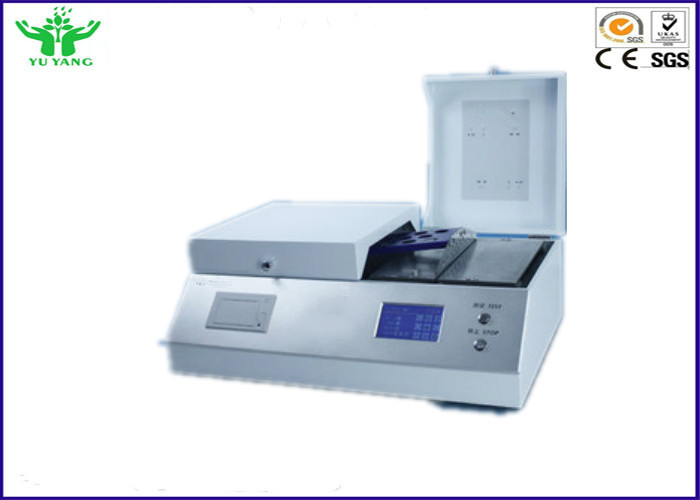

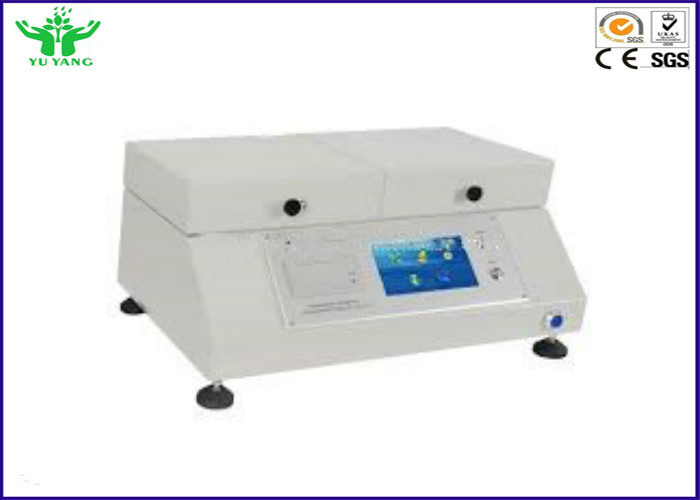

The Touch Screen Package / Paper Softness Testing Equipment is one instrument of imitating feeling softness. It is designed according to the National Standard GB8942 and refer to the instrument principle of American Handle-O-Meter. Mainly used in top-grade toilet paper, facial tissue, non-woven, tobacco sheet, fabrics etc. This tester adopts digital circuit technology controlled by microcomputer, using humanized touch screen for easy operation.



Features:


1. As per Handle-O-Meter from USA,
2. Suitable for tissue, thin paper and fabric product,
3. Can be connected with the PC.





Specifcation:



Item Specifcation
Power supply: AC220V, 50Hz.
Testing range: (10-1000)mN.
Testing speed: 1.2mm/S.
Testing time: 15S.
Resolution: 1mN.
Accuracy: ±1%.
Pressed depth by testing head: 8+0.5 0mm.
Clearance of testing table (4 grades): 5mm, 6.35mm, 10mm, 20mm.
Error for parallelism of the clearance: less than 0.05mm
Outer dimension: 570*415*200mm
Weight: about 33kgs





GB8942 Paper Softness Package Testing Equipment with Touch Screen 0-100Kg 0GB8942 Paper Softness Package Testing Equipment with Touch Screen 0-100Kg 1
