| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISTA 1A, ASTM D999 |
| Model Number: | YY040 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10 |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2 sets per month |
| Vibration Speed: | 100CPM-300 CPM | Vibration Range: | 1 Inch(25.4 Mm) |
|---|---|---|---|
| Vibrating Frequency: | 100~300rpm | Simulation Speed: | 25km/h-40km/h |
| The Worktable Size: | 2000mm*1000mm (L*W) | Barrier Height: | 1000mm |
| Max Load: | 100kg | Power: | AC220V 10A |
| Weight: | About 350 Kg |

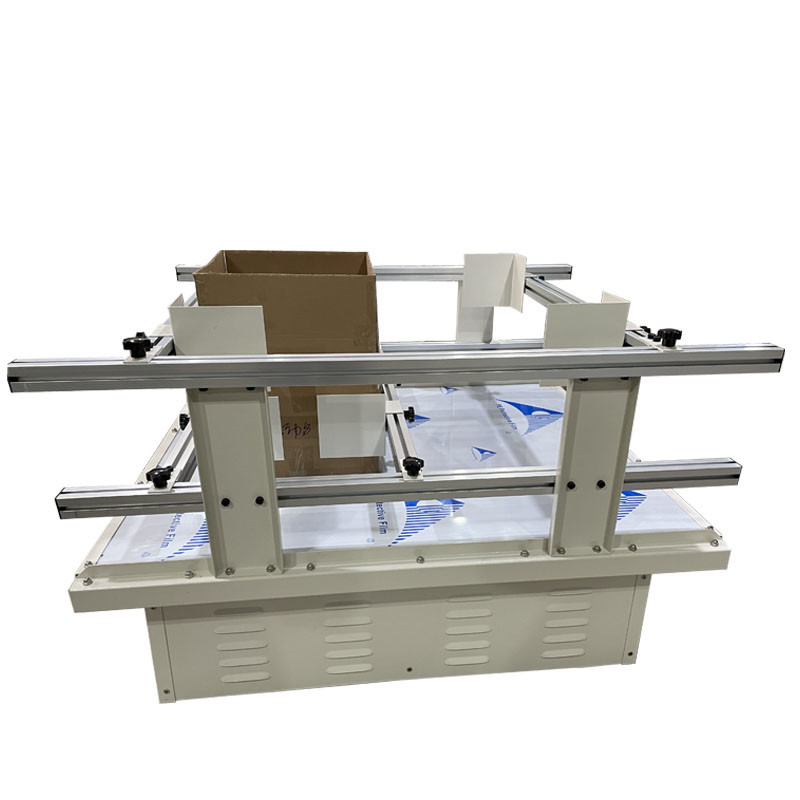

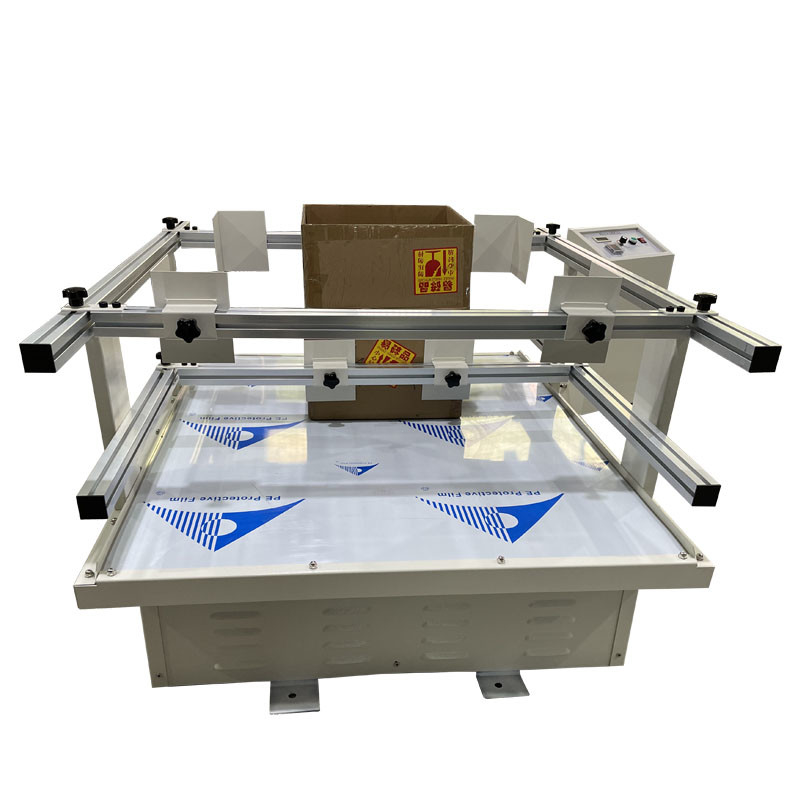

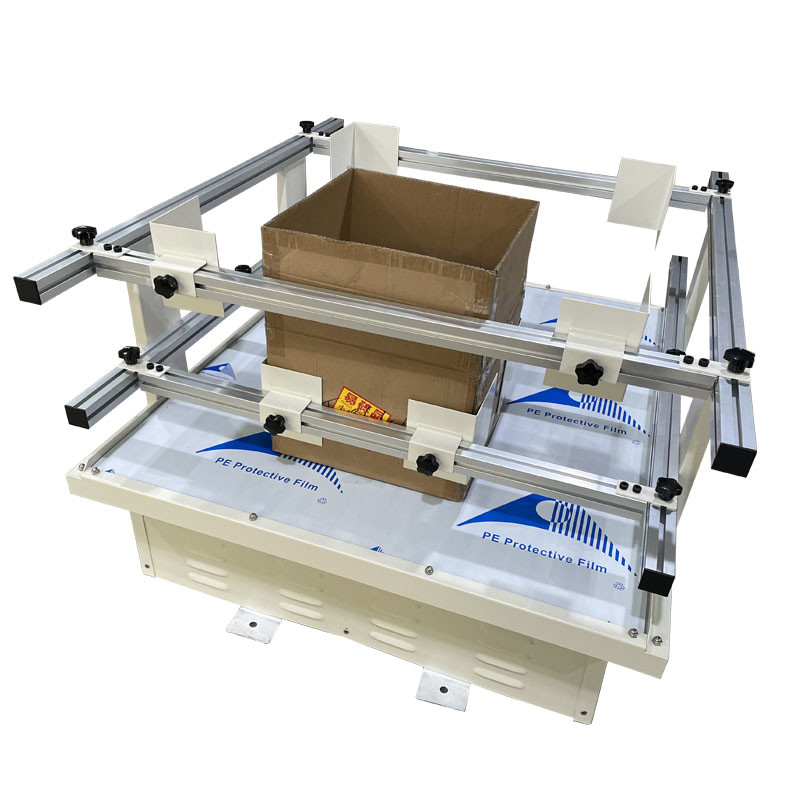

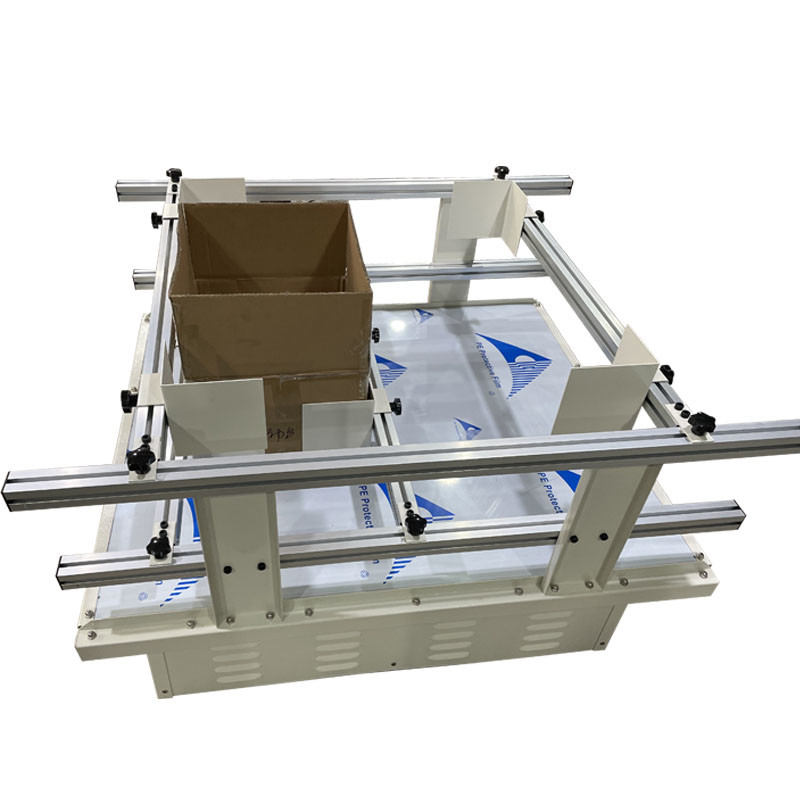

Simulation Transport Shaking Tester Transportation Vibration Table Automobile Vibration Testing Machine
Dscriptions:
Vibration Test Instrument is used for testing the vibration resistance of large furniture, home appliance,toys,electronics,gifts,packaging etc. Also can be used for simulating the transportation under vibration.
Stainless steel working table.Adjustable speed electrical machine supply powerful motive power,strong loading ability.
Synchronous belt transmission,heavy channel beam base equipped with damped rubber, stable running, low noise.
Digital display the vibrate frequency and test time.Intelligent time relay to set the running time.
Application:
Apply for conveyance test of toys, electronic parts, houseware, IT, communication, furniture, gift, package in compliance with USA & EURO shipping standards.
Standards:
EN71 ISTA-1A/1B ANSI UL ASTM international shipping standards.
Features:
Good cost performance.
Digital display for vibration frequency
Low noise: with synchronous noiseless belt transmission.
To use slideway for testing sample loading and unloading: easy and safe operation.
Heavy slot steel with vibration damping rubber for bottom plate of the machine, safe and stable working
Cycling vibration system: in compliance with USA & EURO shipping standards.
Specifications:
| Item | Specification |
| Vibration speed | 100CPM-300 CPM |
| Vibration range | 1 inch(25.4 mm) |
| Vibrating Frequency | 100~300rpm |
| Simulation speed | 25km/h-40km/h |
| The worktable size | 2000mm*1000mm (L*W) |
| Barrier height | 1000 mm |
| Max Load | 100kg |
| Power | AC220V 10A |
| Weight | About 350 kg |
| The whole machine size | 2100 mm * 1100 mm * 1450 mm (L*W*H) |
