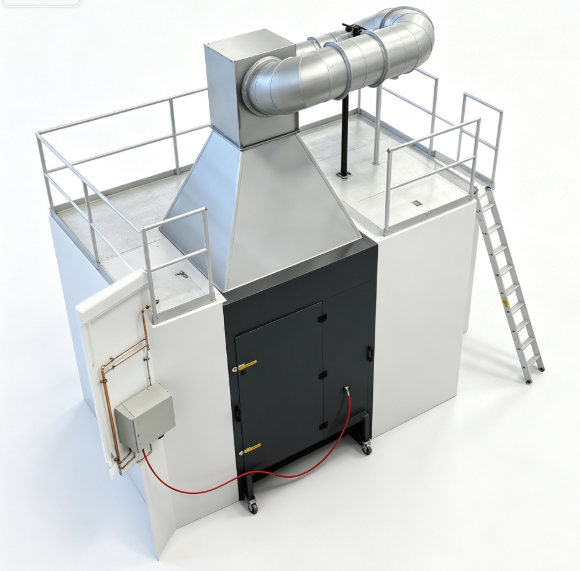

EN 13823 SBI Test Apparatus for Building Material Fire Performance Testing Single Burning Item Testing Machine

EN 13823 SBI Test Apparatus for Building Material Fire Performance Testing Single Burning Item Testing Machine

EN 13823 SBI test apparatus

building material fire performance tester

single burning item testing machine

Place of Origin:

China

Brand Name:

YUYANG

Model Number:

YYF005

Contact Us
Request A Quote
Product Details
Test Room:
L3000*W3000*H2400(MM)
Ignition Source:
Placed On Trolley Vertical Rectangular Box In The Corner Of The 31 Kw Propane Sandbox Burners(two Equal Sides 0f 250mm,height 80mm)
Exhaust Speed:
0.50 M3 /S~0.65 M 3/ S
Test Room Ambient Temperature Measurement:
K-type Sheathed Thermocouples With Diameter 2mm,ambient Pressure
Test Accuracy::
± 200Pa
Test Room Ambient Temperature Measurement::
K-type Sheathed Thermocouples With Diameter 0.5mm
Temperature Measurement Accuracy:
0.5 ℃
Flue High-precision Pressure Sensor Accuracy:
± 2Pa
Time Recording System Accuracy:
0.1S
Test Time:
1 To 30 Minutes Can Be Set
Highlight:

EN 13823 SBI test apparatus

,

building material fire performance tester

,

single burning item testing machine

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiation
Delivery Time
7-30 Days
Payment Terms
T/T
Product Description
EN 13823 SBI Test Apparatus for Building Material Fire Performance Testing
EN 13823 SBI Test Apparatus for Building Material Fire Performance Testing
The Building Materials and Products Single Burning Item Test Apparatus (SBI) is designed to evaluate the reaction to fire performance of building materials and products excluding flooring. This equipment complies with EN 13823 and GB/T 20284 standards, simulating thermal attack from a single burning item. It measures critical fire performance parameters including heat release rate, smoke production, oxygen concentration, CO/CO₂ concentration, temperature, and mass loss rate.
Product Highlights
Advanced Data Acquisition System
  • Real-time monitoring
  • Automatic data recording
  • Test curve display
  • Data storage and export
  • Report generation
Professional Safety Design
  • Independent test chamber
  • Exhaust duct system
  • Gas safety protection
  • Emergency stop function
  • Stable combustion control
Wide Application Range
Suitable for:
  • Wall panels
  • Ceiling materials
  • Insulation materials
  • Roofing products
  • Composite materials
  • Decorative building products
Testing Principle
A test sample is installed on the trolley inside the test room. A 31 kW propane burner acts as the ignition source and exposes the sample to a controlled flame. During the test, combustion products pass through the exhaust duct where sensors and analyzers collect real-time data. The system automatically analyzes heat release rate, smoke production rate, gas concentration, temperature change, and mass loss. The final test data can be stored and exported for evaluation.
Technical Specifications
Item Specification
Applicable Standards EN 13823 / GB/T 20284
Test Room Dimension L3000 × W3000 × H2400 mm
Ignition Source Propane Burner 31 kW
Power Supply AC 220V 50Hz
Power Consumption 8.5 kW
Ambient Temperature 5~35℃
Relative Humidity 20~80% RH
Exhaust Speed 0.50~0.65 m³/s
Exhaust Duct Diameter Φ500 mm
Temperature Measurement K-type Thermocouple
Oxygen Measurement Range 0~25%
CO₂ Measurement Range 0~10%
Data Acquisition Embedded PC System
Display LCD Touch Screen / Computer Control
Test Time 1~30 minutes Adjustable
Applications
Used for evaluating fire reaction performance of building materials including:
  • Wall and ceiling panels
  • Thermal insulation materials
  • Roofing materials
  • Composite panels
  • Decorative materials
  • Interior construction products
  • Other non-flooring building products
