Professional SBI Fire Testing Equipment Building Products Reaction to Fire Test Apparatus GB/T 20284 EN 13823

Professional SBI Fire Testing Equipment Building Products Reaction to Fire Test Apparatus GB/T 20284 EN 13823

SBI fire testing equipment

building material fire tester

reaction to fire test apparatus

Place of Origin:

China

Brand Name:

YUYANG

Model Number:

YYF005

Contact Us
Request A Quote
Professional SBI Fire Testing Equipment Building Products Reaction to Fire Test Apparatus GB/T 20284 EN 13823 Professional SBI Fire Testing Equipment Building Products Reaction to Fire Test Apparatus GB/T 20284 EN 13823 Professional SBI Fire Testing Equipment Building Products Reaction to Fire Test Apparatus GB/T 20284 EN 13823 Professional SBI Fire Testing Equipment Building Products Reaction to Fire Test Apparatus GB/T 20284 EN 13823
Product Details
Test Room:
L3000*W3000*H2400(MM)
Ignition Source:
Placed On Trolley Vertical Rectangular Box In The Corner Of The 31 Kw Propane Sandbox Burners(two Equal Sides 0f 250mm,height 80mm)
Exhaust Speed:
0.50 M3 /S~0.65 M 3/ S
Test Room Ambient Temperature Measurement:
K-type Sheathed Thermocouples With Diameter 2mm,ambient Pressure
Test Accuracy::
± 200Pa
Test Room Ambient Temperature Measurement::
K-type Sheathed Thermocouples With Diameter 0.5mm
Temperature Measurement Accuracy:
0.5 ℃
Flue High-precision Pressure Sensor Accuracy:
± 2Pa
Time Recording System Accuracy:
0.1S
Test Time:
1 To 30 Minutes Can Be Set
Highlight:

SBI fire testing equipment

,

building material fire tester

,

reaction to fire test apparatus

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiation
Delivery Time
7-30 Days
Payment Terms
T/T
RELATED PRODUCTS
Good price Professional SBI Fire Testing Equipment Building Products Reaction to Fire Test Apparatus GB/T 20284 EN 13823 online

Professional SBI Fire Testing Equipment Building Products Reaction to Fire Test Apparatus GB/T 20284 EN 13823

Get Best Price
Good price Automatic Single Burning Item Test Apparatus SBI Reaction to Fire Testing Equipment for Construction Materials online

Automatic Single Burning Item Test Apparatus SBI Reaction to Fire Testing Equipment for Construction Materials

Get Best Price
Good price EN 13823 SBI Test Apparatus for Building Material Fire Performance Testing Single Burning Item Testing Machine online

EN 13823 SBI Test Apparatus for Building Material Fire Performance Testing Single Burning Item Testing Machine

Get Best Price
Good price Building Materials Products Single Burning Item Test Apparatus SBI Fire Testing Equipment EN 13823 Reaction to Fire Tester online

Building Materials Products Single Burning Item Test Apparatus SBI Fire Testing Equipment EN 13823 Reaction to Fire Tester

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description
Professional SBI Fire Testing Equipment Building Products Reaction to Fire Test Apparatus
Compliant with GB/T 20284 and EN 13823 standards for construction product fire testing.

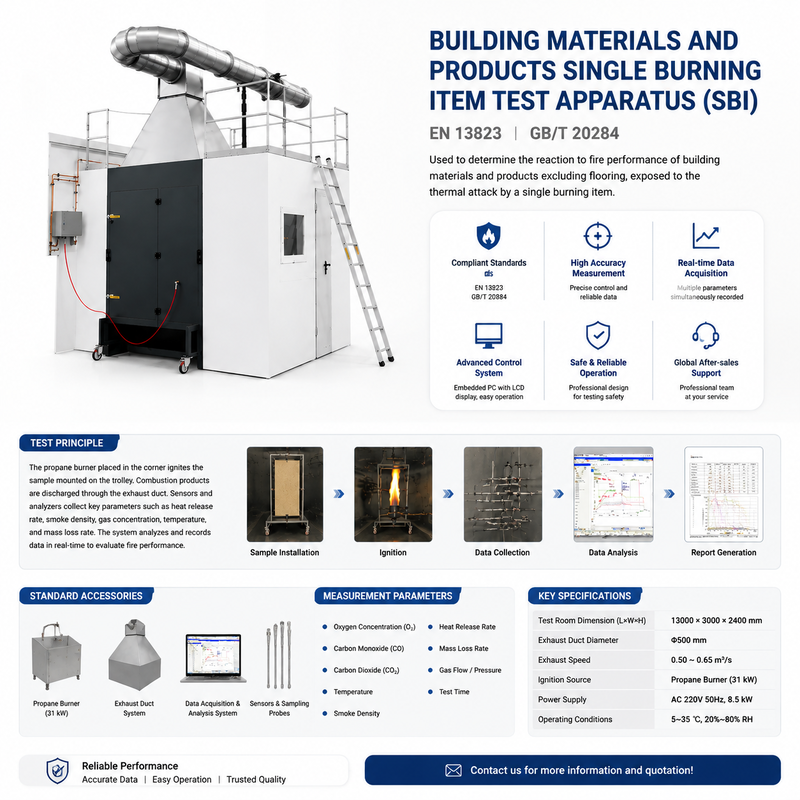

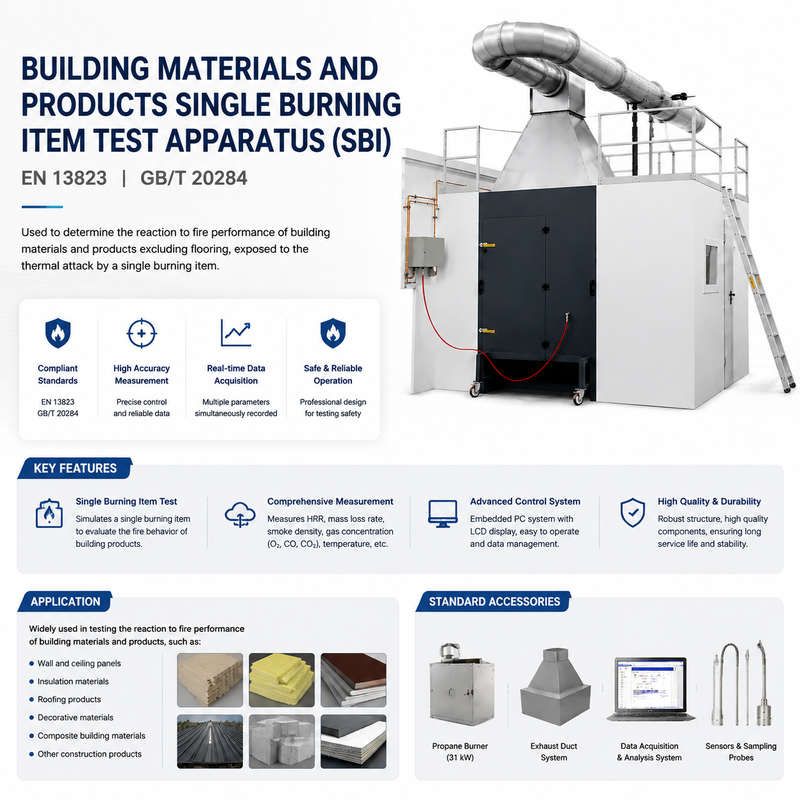

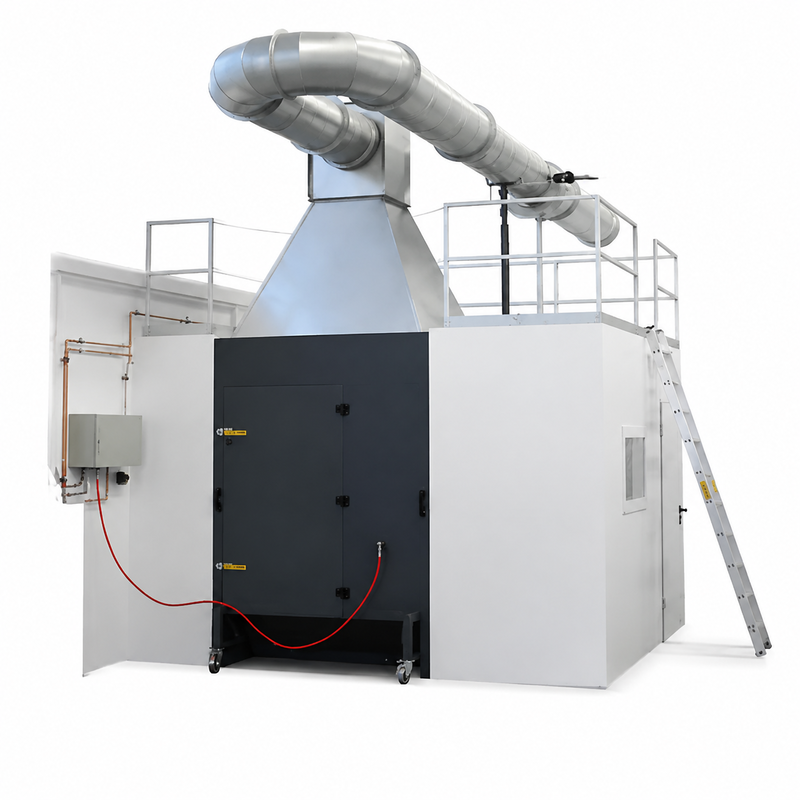

SBI Fire Testing Equipment apparatus showing the test chamber and control system
Building Materials and Products Single Burning Item Test Apparatus (SBI)
The SBI test apparatus is a professional fire testing system used to determine the reaction to fire performance of building materials and construction products. The system simulates the thermal attack caused by a single burning item and evaluates the fire behavior of materials under controlled laboratory conditions. It is widely used by fire testing laboratories, certification organizations, research institutes, and building material manufacturers.
Product Highlights
International Standard Compliance
Fully compliant with EN 13823 Reaction-to-Fire test standard for construction products and satisfies the test specifications of GB/T 20284 Single Burning Item test.
Full-scope Fire-Behaviour Assessment
Measured parameters include Heat Release Rate (HRR), Smoke optical density, Oxygen (O₂) concentration, Carbon Monoxide (CO), Carbon Dioxide (CO₂), Temperature, and Mass loss rate.
High-performance Data Acquisition Unit
Real-time status monitoring, automated data logging, on-screen test curve visualization, data saving & export functions, and automated test report output.
Testing Principle
A test sample is installed on the trolley inside the test room. A 31 kW propane burner acts as the ignition source and exposes the sample to a controlled flame. During the test, combustion products pass through the exhaust duct where sensors and analyzers collect real-time data.
The system automatically analyzes:
  • Heat release rate
  • Smoke production rate
  • Gas concentration
  • Temperature change
  • Mass loss
The final test data can be stored and exported for evaluation.

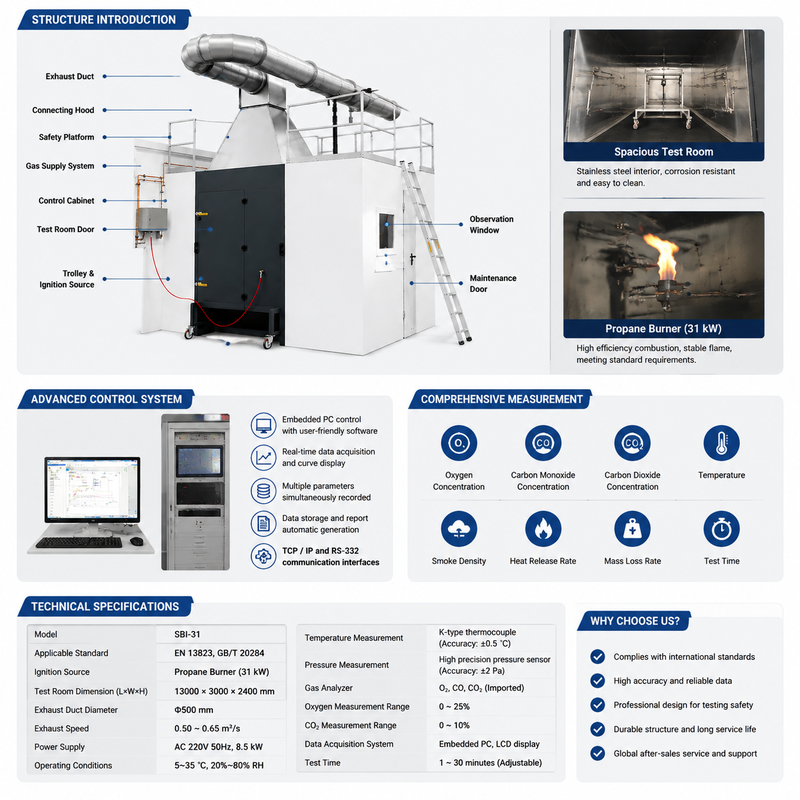

Technical Specifications
Item Specification
Applicable Standards EN 13823 / GB/T 20284
Test Room Dimension L3000 × W3000 × H2400 mm
Ignition Source Propane Burner 31 kW
Power Supply AC 220V 50Hz
Power Consumption 8.5 kW
Ambient Temperature 5～35℃
Relative Humidity 20～80% RH
Exhaust Speed 0.50～0.65 m³/s
Exhaust Duct Diameter Φ500 mm
Temperature Measurement K-type Thermocouple
Oxygen Measurement Range 0～25%
CO₂ Measurement Range 0～10%
Data Acquisition Embedded PC System
Display LCD Touch Screen / Computer Control
Test Time 1～30 minutes Adjustable
Applications
Widely Used for Building Material Fire Performance Evaluation
The SBI apparatus is suitable for testing various construction products, including:
Building Panels
  • Wall panels
  • Ceiling panels
  • Sandwich panels
Insulation Materials
  • Mineral wool
  • Thermal insulation boards
  • Composite insulation products
